Visual Fault Locator

Categories Fiber Optic Testing Instruments, VFL-Visual Fault Locator

LD light source

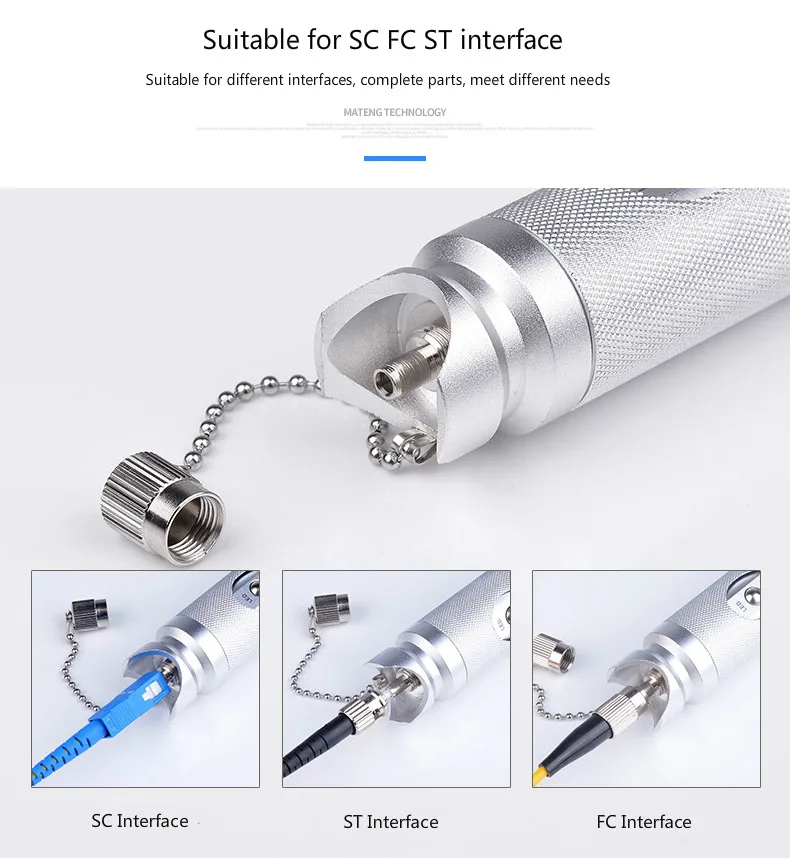

FC, SC, ST universal connector

Long distance detect

Pen type design, portable, and easy to use

Product Details:

Visual Fault Locator 5mw~50mw VFL Optical Fiber Cable Tester Laser 650nm+/-10nm 5KM~50KM FTTH Tool Optic Laser Pen

Product overview:

The red light emitting device with 650nm semiconductor laser, the constant current source drive, emit stable red light, and light interface into single mode and multimode optical fiber, optical fiber fault detection function, optical fiber and optical fiber network engineering work, production and maintenance of optical devices indispensable research tool etc.

Technical Specification:

Central Wavelength	650nm±10nm
Fiber Type	SM/MM
Output Power	1mW	5mW	10mW	20mW	30mW	40mW	50mW
Laser Range	3～5km	5km	≥10km	≥20km	≥30km	≥40km	≥50km
Optical Connector	2.5mm universal connector,for 1.25mm connectors, FC(Male)-LC(Female) converter can be provided on request
Power Supply	2 AA-size alkaline batteries ( No Battery in the package)
Case Material	Aluminum
Opterating Temperature	-20℃～60℃
Storage Temperature	-40℃～85℃
Dimension	25*190mm
Weight	180g
