Description

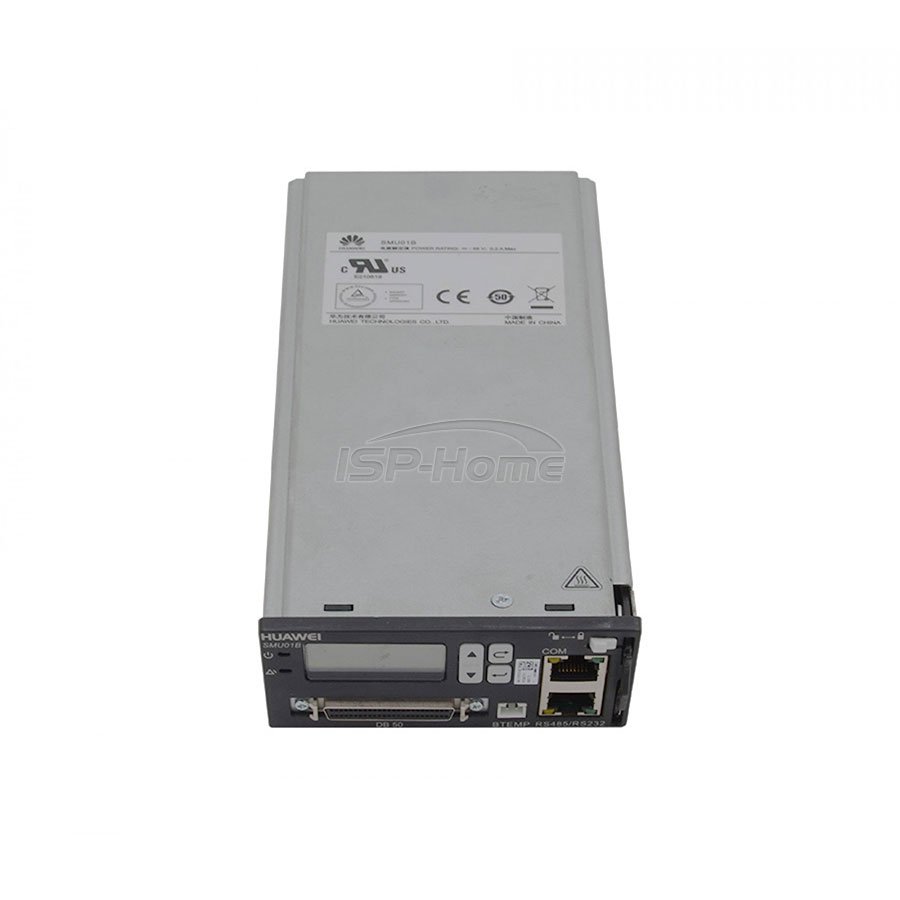

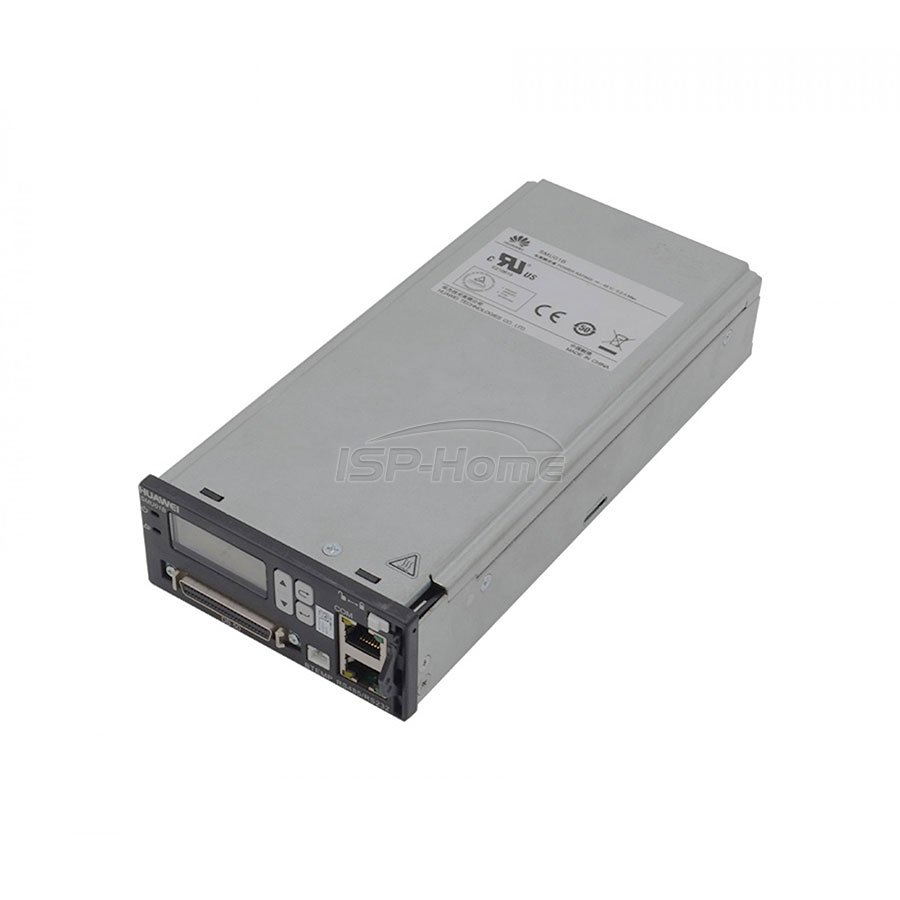

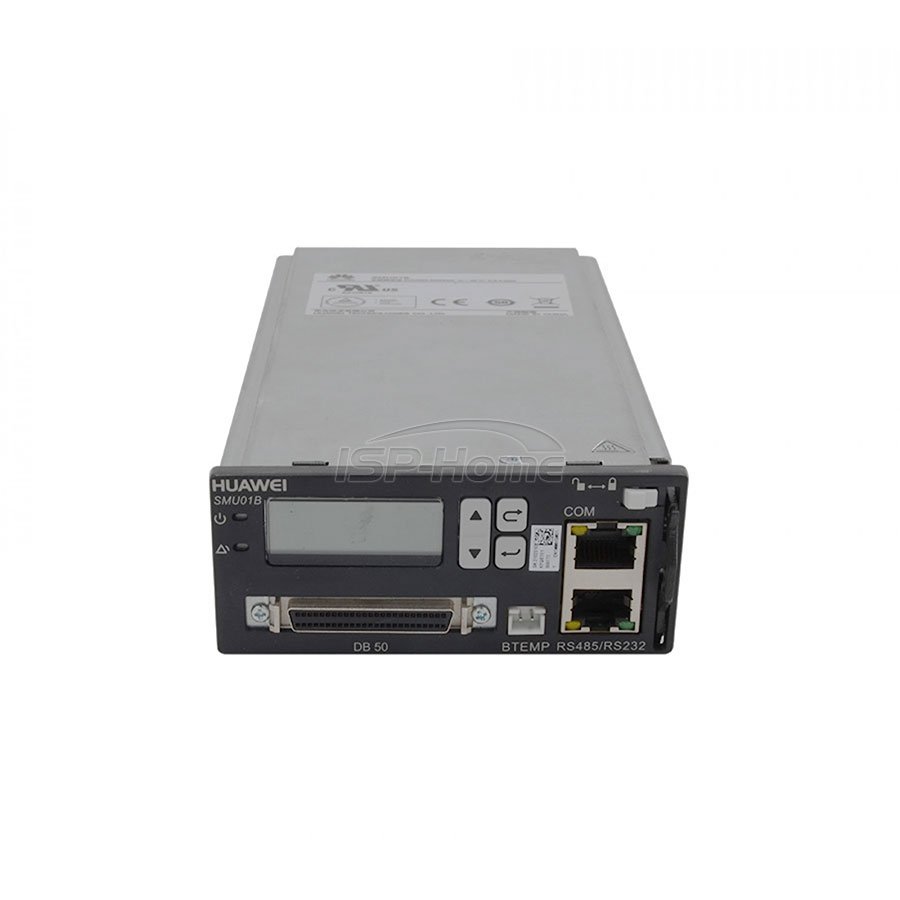

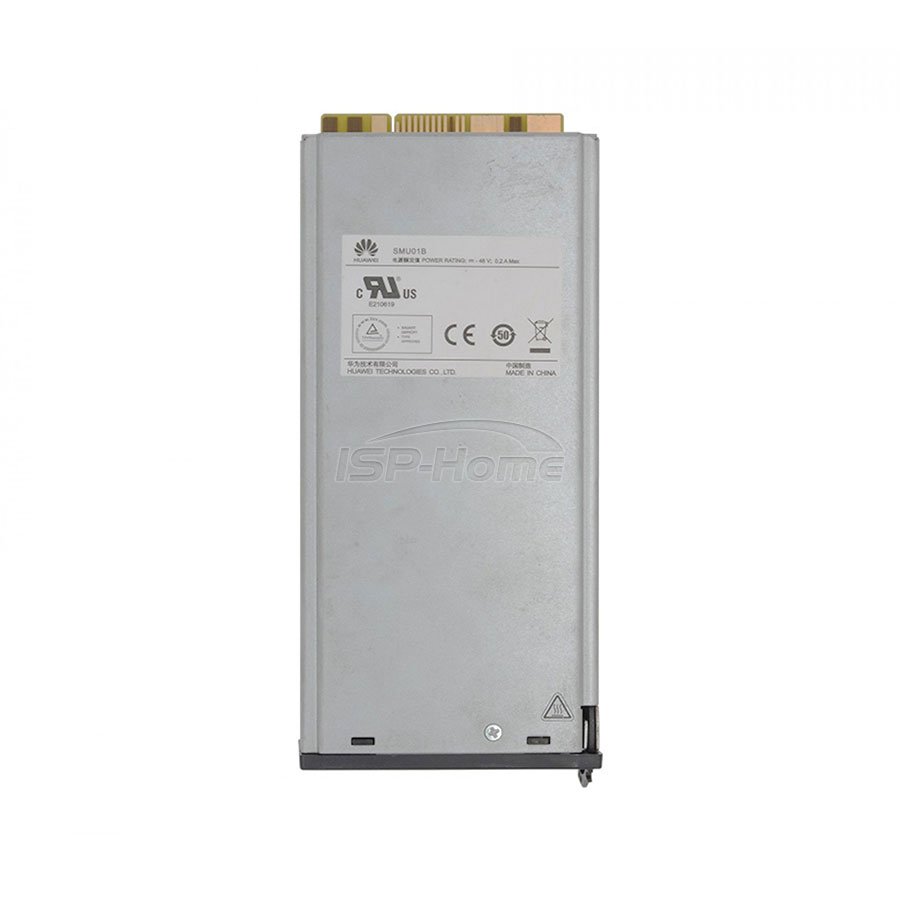

Carrier-class AC/DC power converter monitor module
Support 7 digital input, 2 analog input.
Support 8 dry contact output.
Support RS232/485 Communication port.
Support battery temperature sensor port
SMU01B can connect to the U2000 over Huawei master/slave protocols.
Apply to Huawei ETP4830-A1, ETP4890-A2, ETP4890-B3A2 AC/DC power converter.
SMU01B supports Huawei master/slave protocols and access network point-to-point protocols, which allows Huawei access network communications equipment to connect to the U2000, but cannot support WebUI feature.

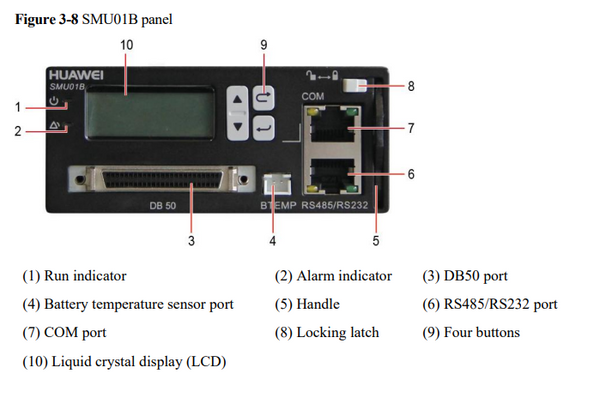

Figure of SMU01B Panel
Tech Specs
| Specification | |
| Signal input | 7 digital input, 2 analog input |
| Alarm output | 8 dry contact output |
| Display mode | LCD |
| Communication port and parameter | RS485/RS232: 9600 bits/s or 19,200 bits/s |
