Description

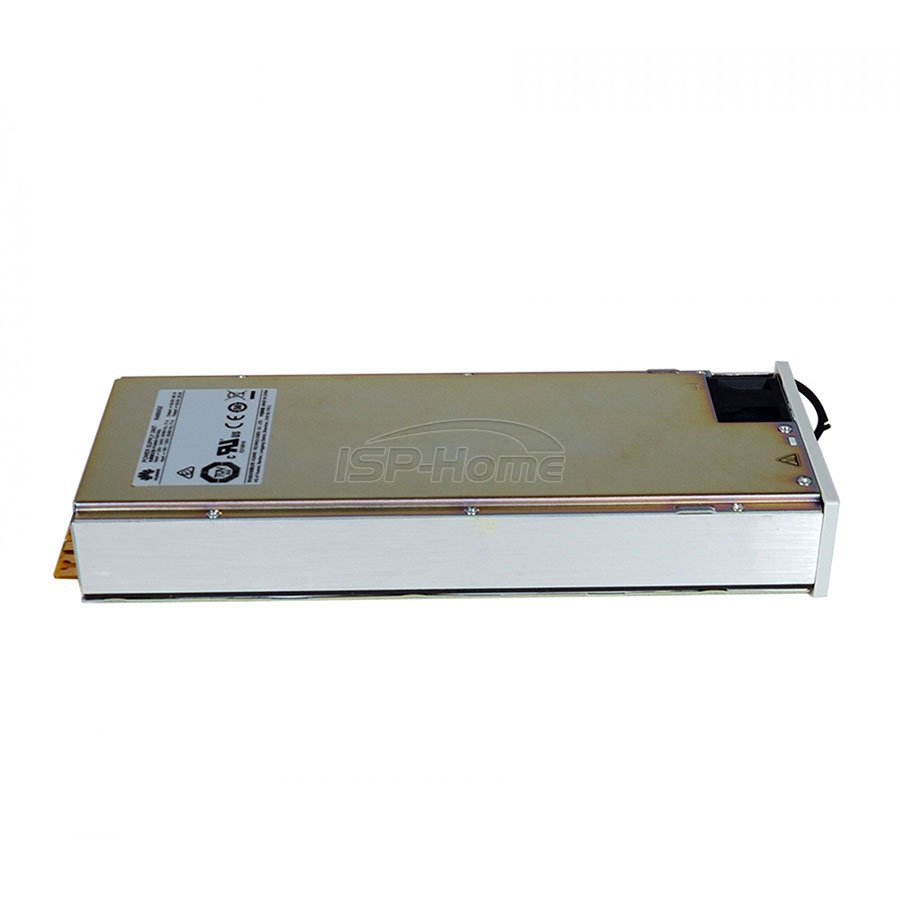

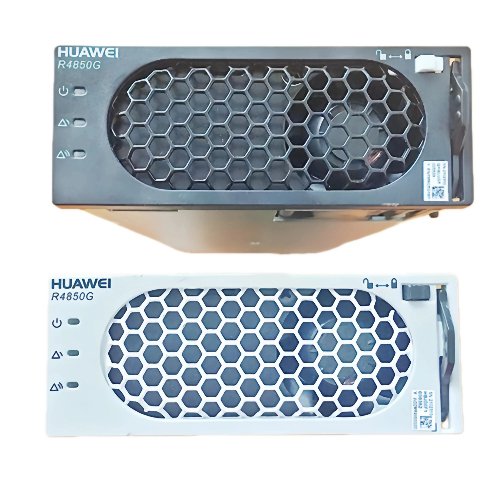

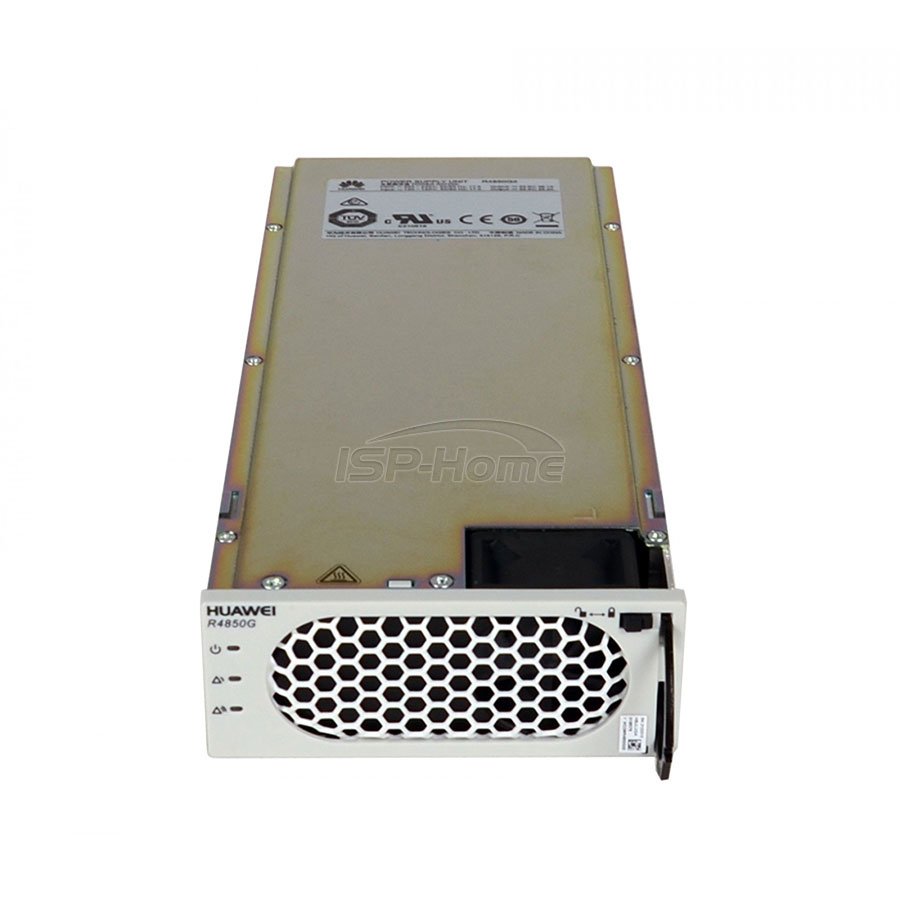

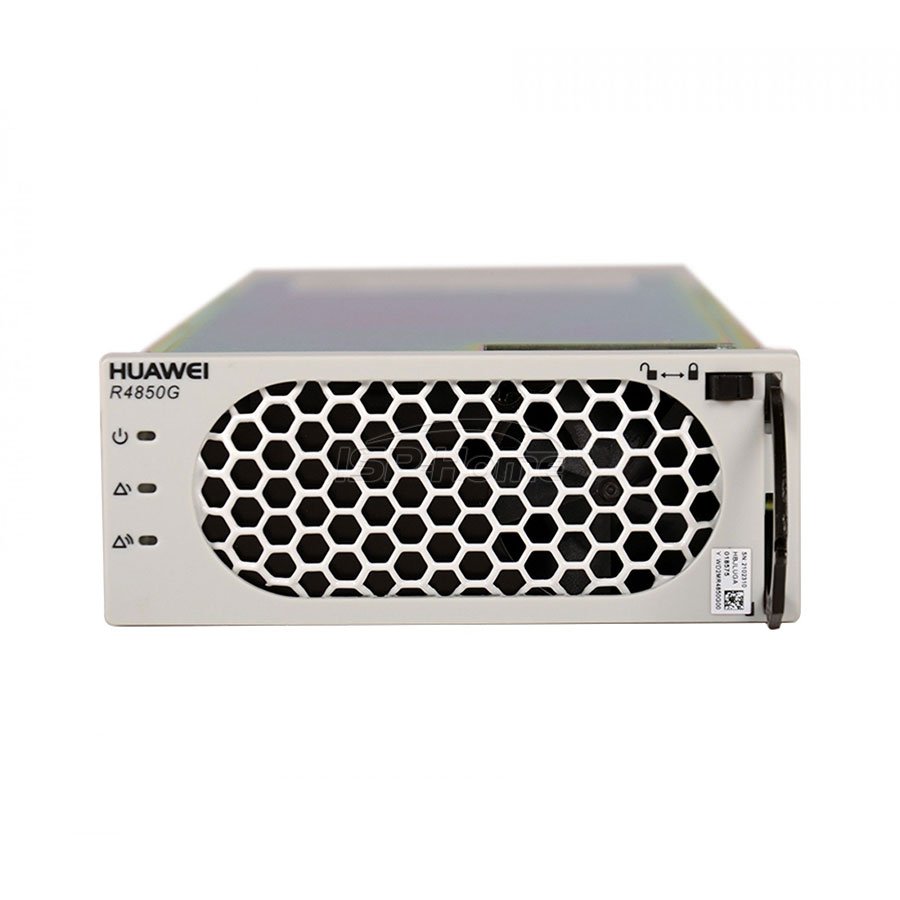

Converts 110 V AC or 220 V AC power into -48 V DC and adjusts the output voltage.
Maximum output power: 3000 W (176–290 VAC); 1250 W (85–175 VAC decreased linearly)
Provides protection against overcurrent, overvoltage, and overtemperature for its DC outputs.
Dissipates heat using its built-in fans.
Apply on Huawei ETP48100-B1
Tech Specs
• Input voltage range: 85–300 V AC
• Operating temperature range: –40ºC to +75ºC
• Total harmonic distortion (THD): ≤ 5％
• Digital control mode
• Hot swap
• Supports intelligent electric meter
• Supports CAN communication
• Supports LED display
• Supports voltage adjustment,current adjustment,and current sharing
• Disconnect above 320 VAC
