Description

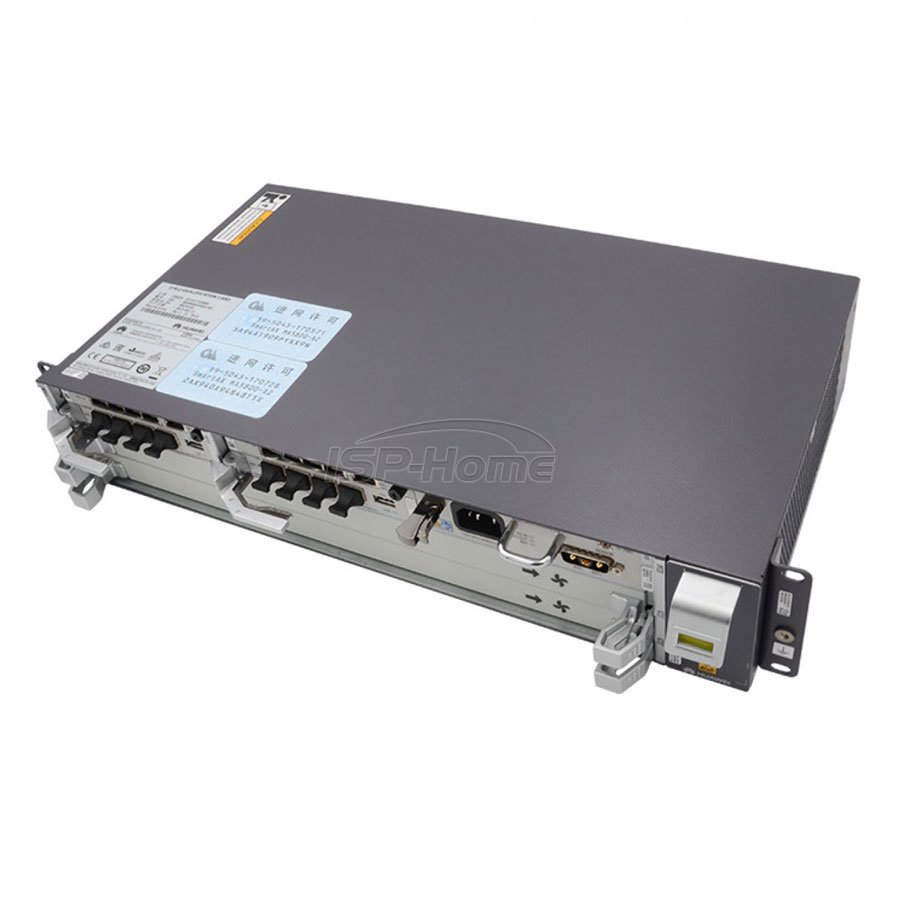

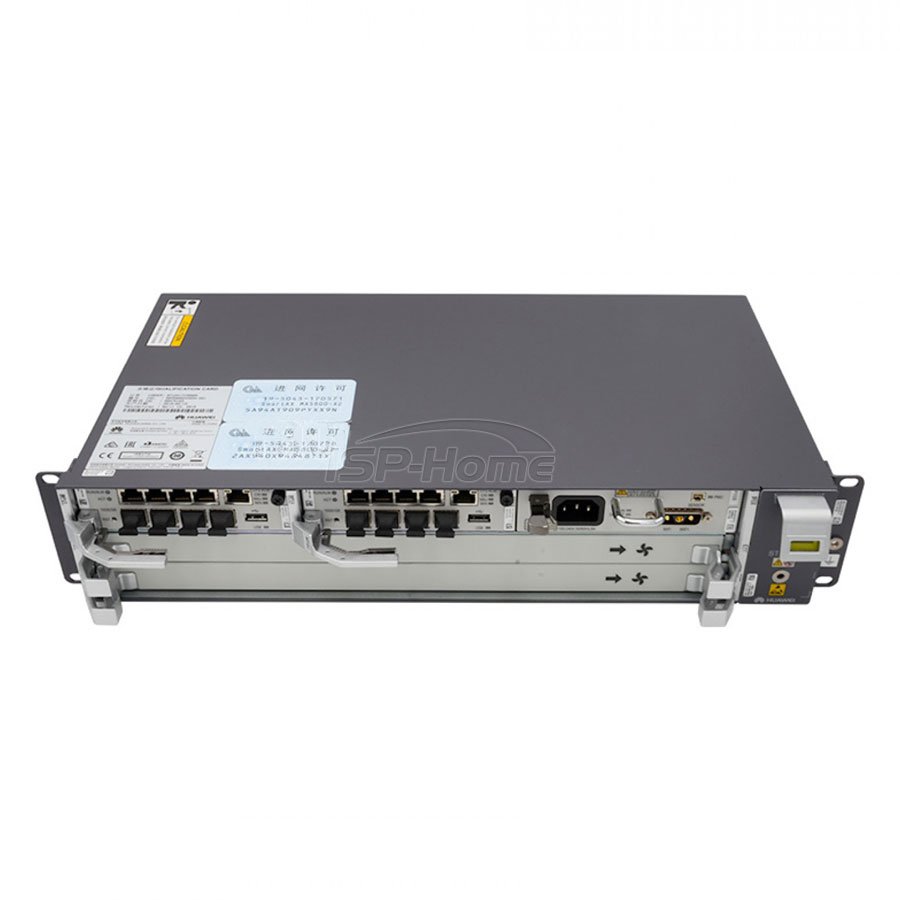

Huawei SmartAX MA5800 X2 NG OLT, 19inch, with 2U height 2 service slots, 80G throughput per slot, support GPON, 10G PON, 40G/100G PON ready; H901BPSB subrack equipped with 2xH901MPSC main control board, 1xH901PISB AC power board.
Key Specification
Chassis supports 2 service slots, MAX 4096 ONTs
Supports GPON, 10G PON, smoothly evolve to 40G/100G PON
Supports 4*GE/10GE upstream ports embedded in Main Control Board MPSC
Supports 16 port GPON interface card GPHF, GPSF
Supports 8 port 10GPON interface card XGHD, TWED
Support 262143 MAC address, 65536 ARP table
Supports over 8 times MAC address and ARP table more than MA5600T
Supports 1:64 eOTDR
Supports DOCSIS 3.1 standard

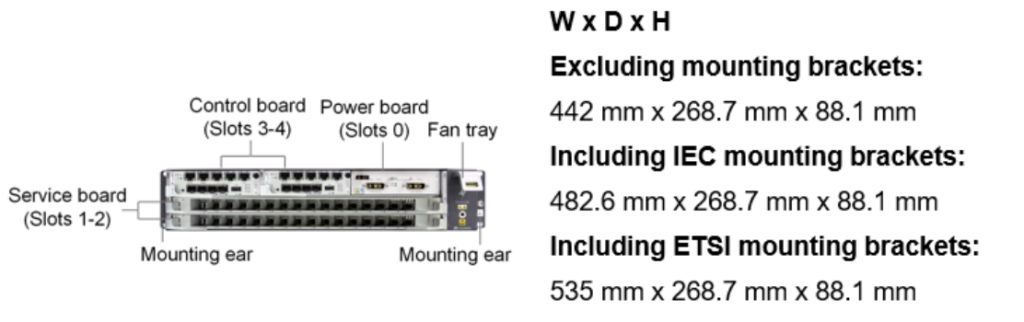

MA5800-X2
Huawei MA5800-X2 OLT Specifications
| Specification Item | Details |
|---|---|
| System Specifications | |
| Switching capacity | 480 Gbit/s |
| Maximum bandwidth per slot (H901MPSC) | 80 Gbit/s |
| Maximum number of MAC addresses | 262,144 |
| Maximum number of ARP/routing entries | 65,536 |
| Maximum concurrent 4K video users | 2,000 |
| Port Specifications | |
| GPON ports | 32 |
| XG-PON ports | 32 |
| XGS-PON ports | 16 |
| GE/FE ports | 96 |
| 10GE ports | 16 |
| Supported Components | |
| Control Board | |
| MPSC | Provides 4 GE/10GE upstream transmission ports with load sharing |
| Upstream Interface Board | |
| NXED | Enhanced 8-port 10GE upstream interface board (10GE/GE Ethernet) |
| Service Boards | |
| GPHF | 16 GPON ports for access services |
| GPSF | 16 GPON ports for home access services |
| XGHD | 8 asymmetric 10G GPON ports |
| TWED | 8 symmetric 10G GPON ports |
| EDSH | 32-channel E1 upstream board (native TDM mode) |
| OGHK | 48-port aggregated GE/FE optical interface board |
| OXHD | 8-port aggregated 10GE optical interface board |
| Power Boards | |
| PISA | -48V DC input |
| PISB | AC power input with battery backup support |
| Fan Monitoring Board | |
| FMSA | Controls and monitors fans |
| Physical Dimensions | |
| Basic dimensions (W x D x H) | 442 mm x 268.7 mm x 88.1 mm (2U) |
| With IEC mounting brackets | 482.6 mm x 268.7 mm x 88.1 mm |
| With ETSI mounting brackets | 535 mm x 268.7 mm x 88.1 mm |
| Maximum weight (with brackets) | 9.4 kg |
| Power & Environment | |
| Maximum input current | 8A |
| Working voltage range | 100 V to 240 V |
| Rated voltage | 110 V/220 V |
| Operating temperature | -40°C to +65°C (Starts at -25°C, runs at -40°C) |
| Ambient humidity | 5% RH to 95% RH |
Huawei MA5800 Series OLT Comparison
| Specifications | MA5800-X17 | MA5800-X15 | MA5800-X7 | MA5800-X2 |
|---|---|---|---|---|
| Supported Cabinets | N63E-22, N66E-18 | N66E-22 | N63E-22, N66E-22 | N63E-22 |
| Board Configuration | Control board slots: 9,10 Service board slots: 1-8,11-19 Universal interface board slot: 0 Power board slots: 20,21 |
Control board slots: 8,9 Service board slots: 1-7,10-17 Universal interface board slot: 0 Power board slots: 18,19 |
Control board slots: 8,9 Service board slots: 1-7 Universal interface board slot: 0 Power board slots: 10,11 |
Control board slots: 3,4 Service board slots: 1-2 No universal interface board Power board slot: 0 |
| Dimensions (W×D×H) mm | Excluding mounting ears: 493×287×486 Including mounting ears: 535×287×486 |
Excluding mounting ears: 442×287×486 Including mounting ears: 482.6×287×486 |
Excluding mounting ears: 442×268.7×263.9 IEC mounting ears: 482.6×268.7×263.9 ETSI mounting ears: 535×268.7×263.9 |
Excluding mounting ears: 442×268.7×88.1 IEC mounting ears: 482.6×268.7×88.1 ETSI mounting ears: 535×268.7×88.1 |
| Max Weight (kg) | 45 | 35 | 26 | 9.4 |
| Max Input Current | 60 A | 60 A | 40 A | DC: 20 A AC: 8 A |
| Power Supply Mode | DC (dual backup) | DC (dual backup) | AC + battery backup | AC + battery backup |
| Working Voltage Range | -38.4V to -72V DC | DC: -38.4V to -72V AC: 100-240V |
-38.4V to -72V DC | AC: 100-240V |
| Rated Voltage | -48V/-60V | DC: -48V/-60V AC: 110V/220V |
-48V/-60V | AC: 110V/220V |
| Ambient Temperature | -40°C to +65°C Minimum startup temperature: -25°C Note: +65°C is the highest temperature measured at the air intake vent of the service subrack |
|||
| Ambient Humidity | 5% to 95% RH | |||
| Atmospheric Pressure | 70-106 kPa | |||
| Altitude | < 4000 m | |||
| Payload Switching Capacity | MPLA: 3.6 Tbit/s MPLB: 7.0 Tbit/s MPLG: 7.3 Tbit/s |
MPSA/MPSG: 248 Gbit/s MPSD: 560 Gbit/s |
MPLA: 3.6 Tbit/s MPLB: 7.0 Tbit/s |
Not specified |
| Max Bandwidth per Slot | MPLA: 100 Gbit/s MPLB/MPLG: 200 Gbit/s |
MPSA/MPSG: 40 Gbit/s MPSD: 100 Gbit/s |
MPLB: 200 Gbit/s MPLA: 100 Gbit/s |
Not specified |
| Max 4K Video Users | 17,000 | 7,000 | 8,000 | 2,000 |
| Max MAC Addresses | 262,143 | 262,143 | 262,144 | 262,143 |
| Max IPv4 Routing Tables | 65,536 | 65,536 | 65,536 | 65,536 |
| Max IPv6 Routing Tables | 16,384 | 16,384 | 16,384 | 16,384 |
| Max ARP Tables | 131,072 | 131,072 | 131,072 | 32,768 |
| Switching Delay | < 20 μs (64-byte Ethernet packets at 100 Mbit/s port) | |||
| Bit Error Rate | < 10⁻¹⁰ (under full load) | |||
| System Reliability | Availability: > 99.999% MTBF: ~45 years |
|||
| Upstream Ports | MPLA/MPLB: 8×10GE/GE MPLG: 2×100GE + 4×10GE/GE |
MPSA/MPSG: 4×10GE/GE + 4×GE MPSD-G: 8×10GE/GE |
4×GE/10GE per control board | Not specified |
| GPON Ports | 272 | 240 | 112 | 32 |
| XG-PON Ports | 272 | 240 | 112 | 32 |
| XGS-PON Ports | 272 | 240 | 112 | 32 |
| GE Ports | 816 | 720 | 336 | 96 |
| 10GE Ports | 408 | 360 | 168 | 16 |
