Description
Carrier-class AC/DC power converter monitor module
Support 7 digital input, 2 analog input.
Support 8 dry contact output.
Support FE, RS232/485 Communication port.
Support WebUI remote manage and SNMP
Apply to Huawei ETP4830-A1, ETP4890-A2 AC/DC power converter.
Huawei SMU01A can support WebUI remote manage function,Huawei SMU01B and Huawei SMU01C cannot support WebUI feature.

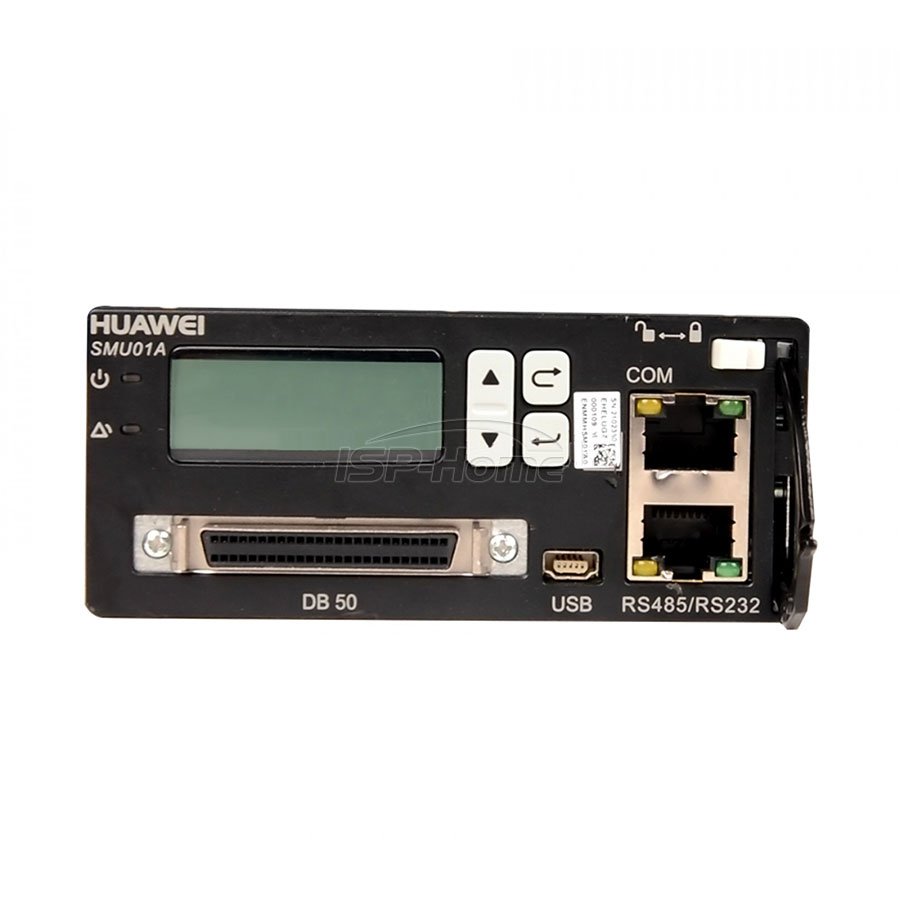

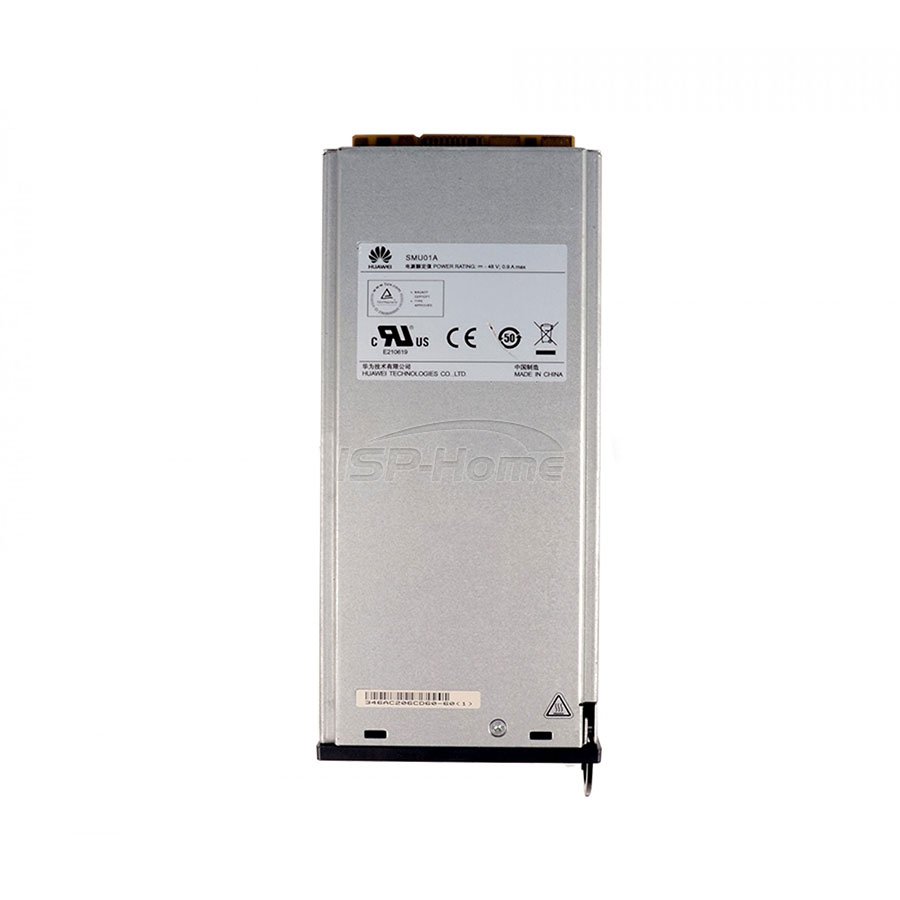

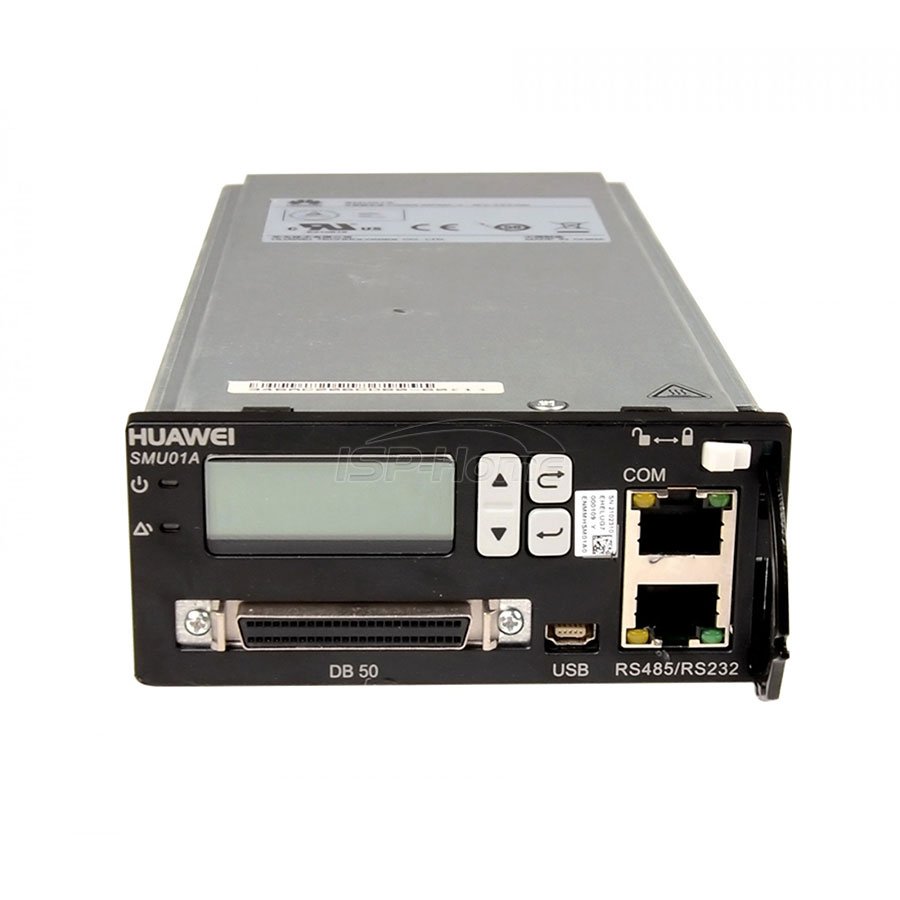

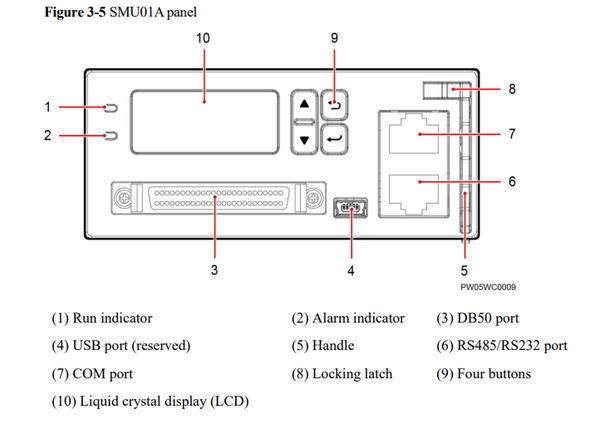

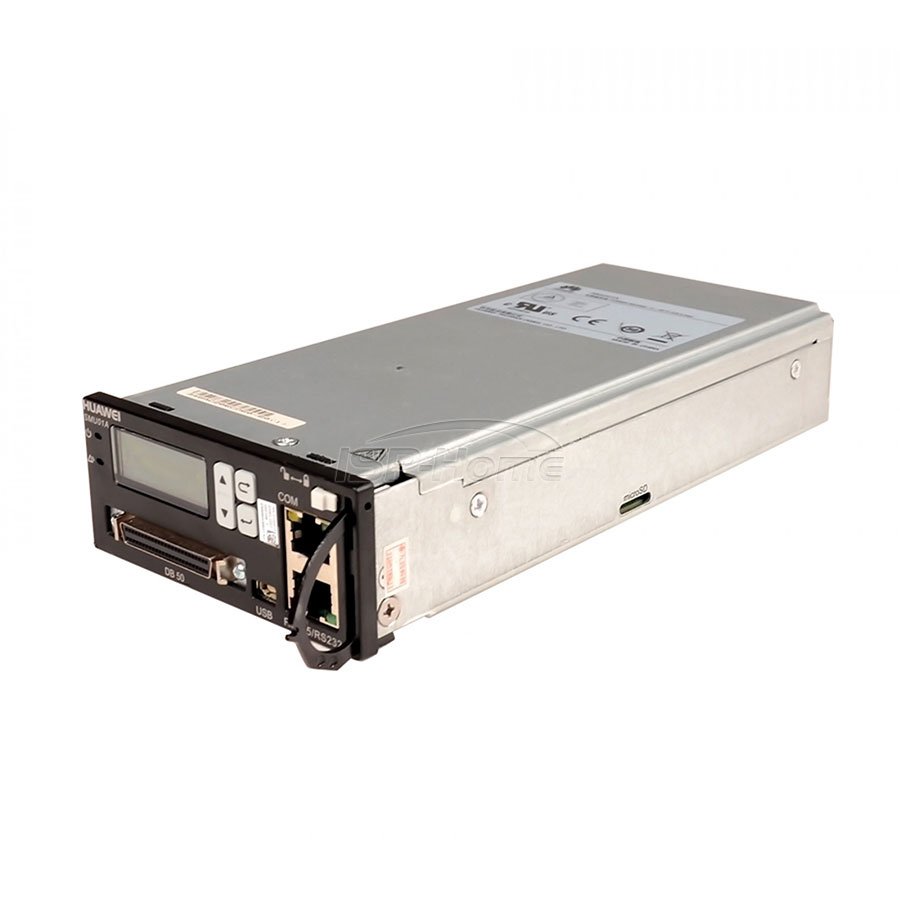

Figure of SMU01A
Tech Specs
| Specification | |
| Signal input | 7 digital input, 2 analog input |
| Alarm output | 8 dry contact output |
| Display mode | LCD |
| Communication port and parameter | FE: Autonegotiation |
| RS485/RS232: 9600 bits/s or 19,200 bits/s | |
