Description
Key Specifications
17 service slots with 100G throughput each
Supports up to 21,760 ONT connections
GPON, 10G PON (XG-PON/XGS-PON), and 25G PON support
Evolution path to 40G/100G PON
262,144 MAC address capacity
65,536 ARP table entries

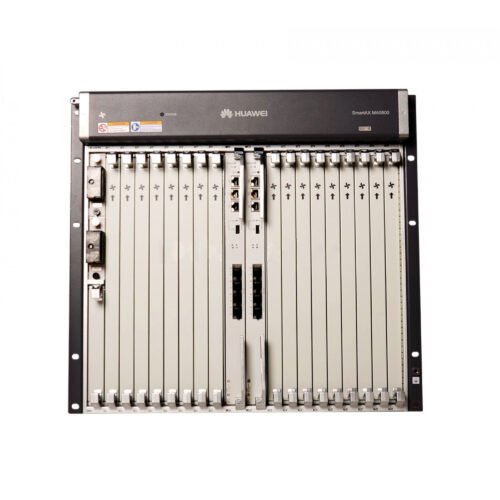

MA5800-X17
Huawei MA5800-X15 OLT
Technical Specifications
System Specifications
| Switching capacity of the system | 7 Tbit/s |
|---|---|
| Maximum bandwidth per slot | H901MPLB: 200 Gbit/s H901MPLA: 100 Gbit/s |
| Maximum number of MAC addresses | 262,143 |
| Maximum number of ARP/routing entries | 65,536 |
| Maximum number of concurrent 4K video users | 16,000 |
| GPON ports | 272 |
| 10G GPON ports | 136 |
| GE/FE ports | 816 |
| 10GE ports | 136 |
| Cabinet supported | N63E-22 |
Board Specifications
| Control Board | MPLB: Provides 4 GE/10GE upstream transmission ports and supports load sharing MPLA: Main control board CKUA: Supports stratum-3 clock functions |
|---|---|
| Upstream Interface Board | NXED: Enhanced 8-port 10GE upstream interface board |
| Universal Interface Board | CIUA: Provides synchronous time/clock signal interfaces |
| Service Board | GPHF: 16 GPON ports for access services GPSF: 16 GPON ports for home access services XGHD: 8 asymmetric 10G GPON ports TWED: 8 symmetric 10G GPON ports EDSH: 32-channel E1 upstream board OGHK: 48-port aggregated GE/FE optical interface board OXHD: 8-port aggregated 10GE optical interface board |
| Power Board | PILA: Provides -48V DC input |
| Fan Monitoring Board | FMLA/FMMA: Supplies power to fans; controls and monitors the fans |
Physical Specifications

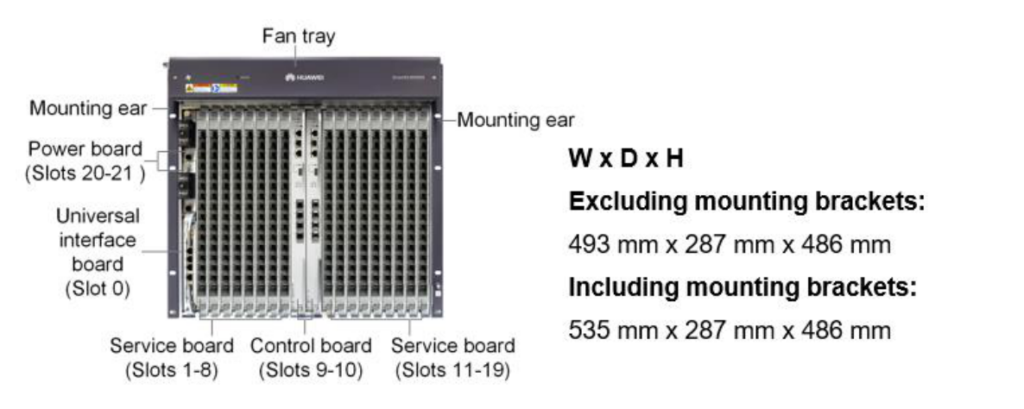

| Dimensions (W x D x H) (mm) | 11 U high and 21 inch wide Excluding mounting brackets: 493×287×486 Including mounting brackets: 535×287×486 |
|---|---|
| Maximum weight (including mounting brackets) | 45 kg |
| Maximum input current | 60 A |
| Power supply | Power supply mode: DC Working voltage range: -38.4 V to -72 V Rated voltage: -48 V / -60 V |
| Ambient temperature | -40°C to +65°C Startup at -25°C min, run at -40°C Note: 65°C measured at air intake vent |
| Ambient humidity | 5% RH to 95% RH |
| Package Dimension (W x D x H) (cm) | 73×71×44 |
Huawei MA5800 Series OLT Comparison
| Specification | MA5800-X17 | MA5800-X15 | MA5800-X7 | MA5800-X2 |
|---|---|---|---|---|
| Supported Cabinet | N63E-22, N66E-18 | N66E-22 | N63E-22, N66E-22 | N63E-22 |
| Board Configuration | Control board slots: 9,10 Service board slots: 1-8,11-19 Universal interface board slot: 0 Power board slots: 20,21 | Control board slots: 8,9 Service board slots: 1-7,10-17 Universal interface board slot: 0 Power board slots: 18,19 | Control board slots: 8,9 Service board slots: 1-7 Universal interface board slot: 0 Power board slots: 10,11 | Control board slots: 3,4 Service board slots: 1-2 No universal interface board Power board slot: 0 |
| Dimensions (W×D×H) mm | Excluding ears: 493×287×486 Including ears: 535×287×486 | Excluding ears: 442×287×486 Including ears: 482.6×287×486 | Excluding ears: 442×268.7×263.9 IEC ears: 482.6×268.7×263.9 ETSI ears: 535×268.7×263.9 | Excluding ears: 442×268.7×88.1 IEC ears: 482.6×268.7×88.1 ETSI ears: 535×268.7×88.1 |
| Max Weight (kg) | 45 | 35 | 26 | 9.4 |
| Max Input Current | 60 A | 60 A | 40 A | DC: 20 A AC: 8 A |
| Power Supply Mode | DC (dual backup) | DC (dual backup) | AC + battery backup | AC + battery backup |
| Working Voltage Range | -38.4V to -72V DC | DC: -38.4V to -72V AC: 100-240V | -38.4V to -72V DC | AC: 100-240V |
| Rated Voltage | -48V/-60V | DC: -48V/-60V AC: 110V/220V | -48V/-60V | AC: 110V/220V |
| Ambient Temperature | -40°C to +65°C Startup at -25°C min Note: +65°C measured at air intake vent | |||
| Ambient Humidity | 5% to 95% RH | |||
| Atmospheric Pressure | 70-106 kPa | |||
| Altitude | < 4000 m | |||
| Payload Switching Capacity | MPLA: 3.6 Tbit/s MPLB: 7.0 Tbit/s MPLG: 7.3 Tbit/s | MPSA/MPSG: 248 Gbit/s MPSD: 560 Gbit/s | MPLA: 3.6 Tbit/s MPLB: 7.0 Tbit/s | Not specified |
| Max Bandwidth per Slot | MPLA: 100 Gbit/s MPLB/MPLG: 200 Gbit/s | MPSA/MPSG: 40 Gbit/s MPSD: 100 Gbit/s | MPLB: 200 Gbit/s MPLA: 100 Gbit/s | Not specified |
| Max 4K Video Users | 17,000 | 7,000 | 8,000 | 2,000 |
| Max MAC Addresses | 262,143 | 262,143 | 262,144 | 262,143 |
| Max IPv4 Routing Tables | 65,536 | 65,536 | 65,536 | 65,536 |
| Max IPv6 Routing Tables | 16,384 | 16,384 | 16,384 | 16,384 |
| Max ARP Tables | 131,072 | 131,072 | 131,072 | 32,768 |
| Switching Delay | < 20 μs for 64-byte packets at 100 Mbit/s | |||
| Bit Error Rate | < 10⁻¹⁰ under full load | |||
| System Reliability | Availability: > 99.999% MTBF: ~45 years | |||
| Upstream Ports | MPLA/MPLB: 8×10GE/GE MPLG: 2×100GE + 4×10GE/GE | MPSA/MPSG: 4×10GE/GE + 4×GE MPSD-G: 8×10GE/GE | 4×GE/10GE per control board | Not specified |
| GPON Ports | 272 | 240 | 112 | 32 |
| XG-PON Ports | 272 | 240 | 112 | 32 |
| XGS-PON Ports | 272 | 240 | 112 | 32 |
| GE Ports | 816 | 720 | 336 | 96 |
| 10GE Ports | 408 | 360 | 168 | 16 |
