ISP-Home has MA5608T Optical Line Terminal OLT in stock
Packing dimension : 610*420*210mm
Gross weight : 10.2kg

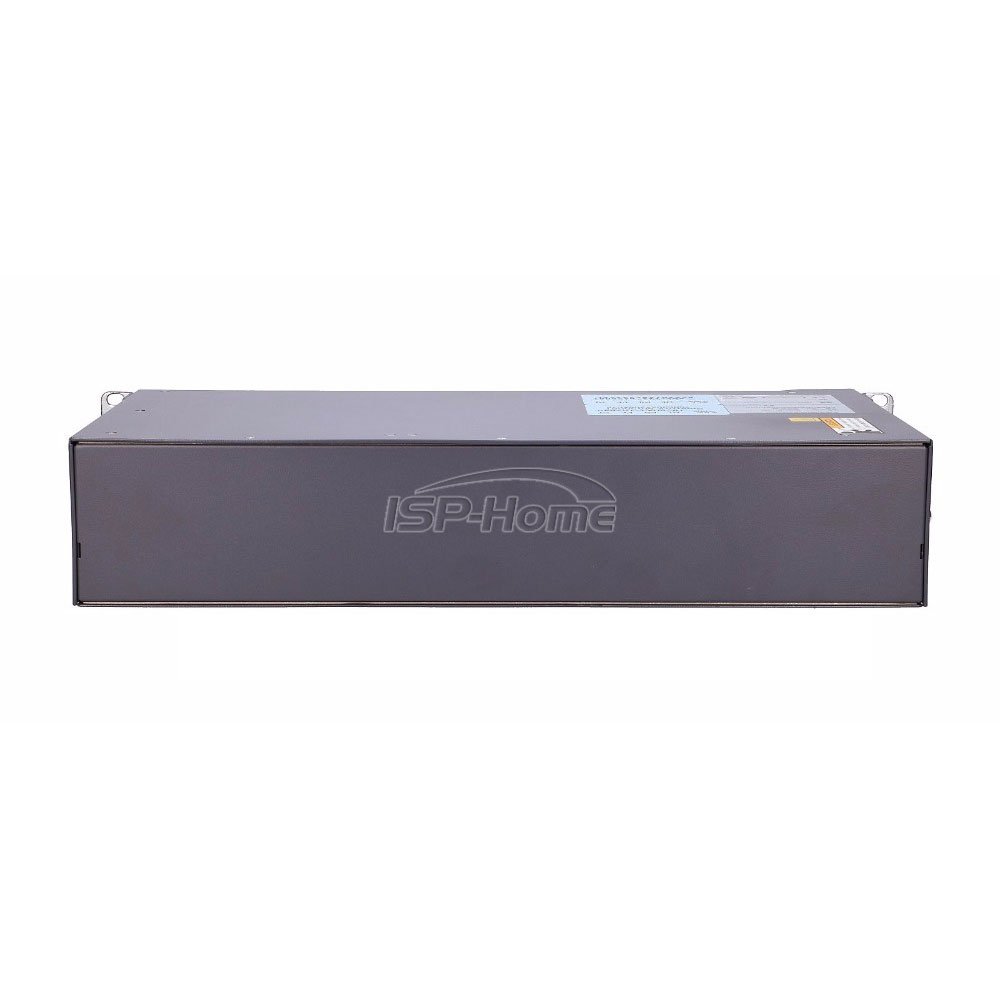

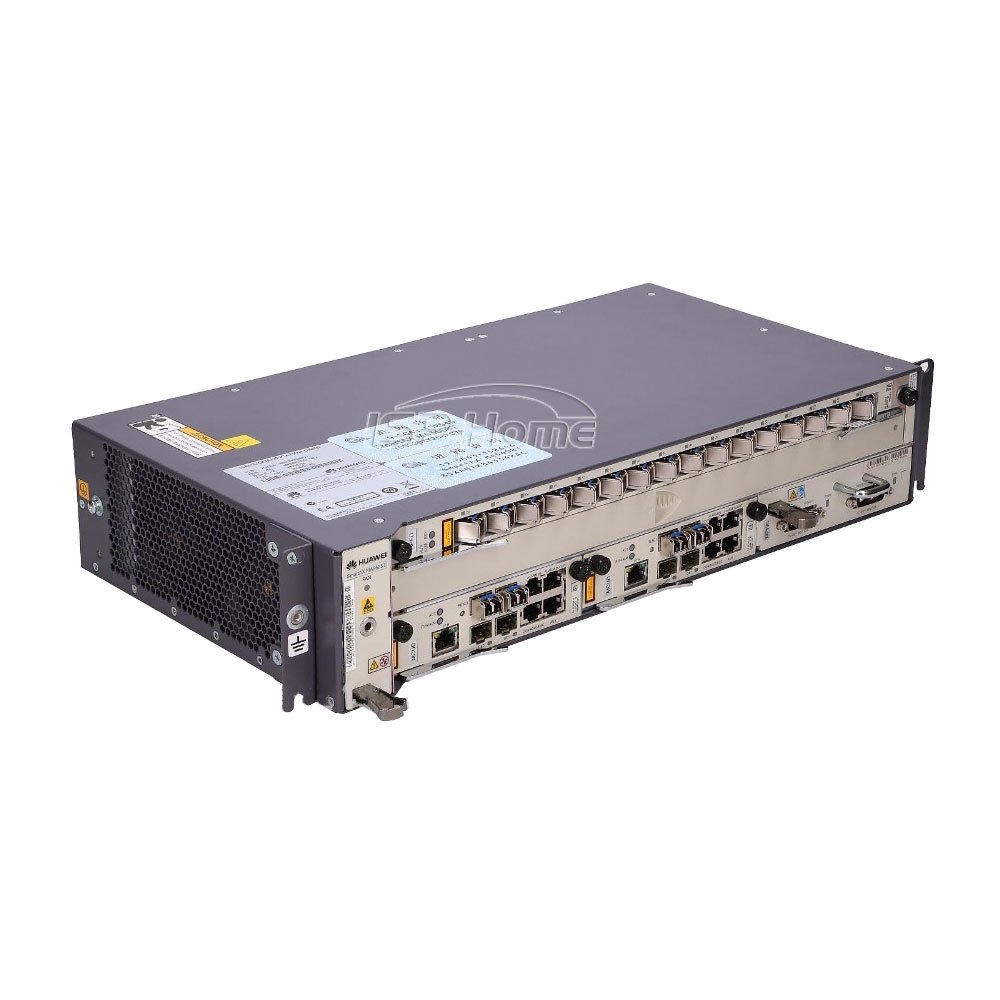

Huawei MA5608T is the smallest OLT (2U height)
Support GPON, EPON and P2P (Optical Access);xDSL and POTS(Copper Access)
Support GPON & EPON simultaneously
Support 8-GPON port interface card GPBD, 16-GPON port interface card GPFD
Chassis supports 2 Service Slots
Support GPON split ration 1:128
Max support 4096 GPON subscribers
Support GE (MCUD main control board) or 10G uplink( MCUD1 main control boar)
Support Transmit Distance 20KM
Power: DC, available from ISP-Home.com

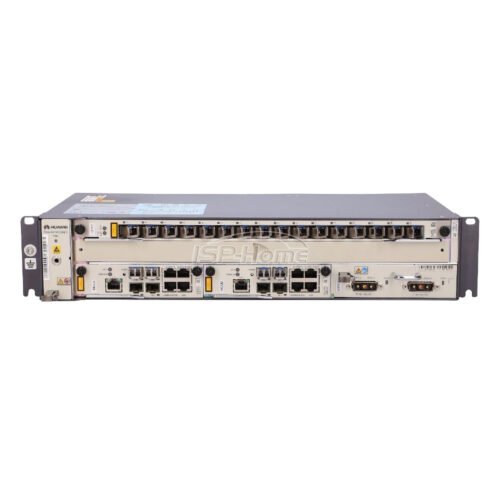

MA5608T Layout
MA5608T Tech Specification
| Maintenance & Monitoring Ports | |
|---|---|
| Maintenance port | Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1 Number of serial ports for local/remote maintenance: 1 |
| Monitoring port | Number of environment monitoring serial ports: 1 |
| Maximum Port Capacity per Subrack | |
|---|---|
| ADSL2+ ports | 128 |
| VDSL2 ports | 128 |
| EFM SHDSL ports | 64 Note: The MA5608T only supports the EFM SHDSL ports. |
| TDM SHDSL ports | 32 |
| POTS ports | 128 |
| ISDN BRA ports | 64 |
| ISDN PRA ports | 64 |
| GPON ports | 32 |
| 10G GPON ports | 16 |
| P2P FE ports | 96 |
| P2P GE ports | 96 |
| Management Ports | |
|---|---|
| Outband management Ethernet port (RJ-45) | MCUD/MCUD1 |
| Local serial port (Console) | MCUD/MCUD1 |
| Upstream Ports | |
|---|---|
| GE optical port | MCUD1: 2 Ports Per Board MCUD: 4 Ports Per Board ETHB/SPUF: 8 Ports Per Board |
| 10GE optical port | MCUD1: 2 Ports Per Board SPUF: 8 Ports Per Board |
| E1 port | TOPA: 16 Ports Per Board |
| STM-1 upstream optical port | TOPA: 2 Ports Per Board |
| Service Ports | |
|---|---|
| GPON port | GPBD/GPBH: 8 Ports Per Board GPFD: 16 Ports Per Board |
| 10G GPON port | XGBC: 4 Ports Per Board XGBD: 8 Ports Per Board |
| P2P GE optical port | OPGD/OPGE: Single-fiber bi-directional: 48 Ports Per Board, Two-fiber bi-directional: 24 Ports Per Board |
| P2P FE optical port | OPGD/OPGE: Single-fiber bi-directional: 48 Ports Per Board, Two-fiber bi-directional: 24 Ports Per Board |
| Ethernet optical port | ETHB: 8 Ports Per Board |
| E1 port | H802EDTB: 16 Ports Per Board |
| ADSL2+ | ADPD/ADPM/ADPE: 64 Ports Per Board |
| VDSL2 | VDRD: 24 Ports Per Board VDMF/VCMM: 48 Ports Per Board VDPM/VDQM/VDPE/VDPD/VCPE: 64 Ports Per Board |
| EFM SHDSL | SHLM: 16 Ports Per Board SHGM: 32 Ports Per Board |
| TDM SHDSL | H802EDTB: 16 Ports Per Board |
| POTS | ASPB: 64 Ports Per Board |
| ADSL2+ & POTS | CAME: 48 Ports Per Board |
| VDSL2 & POTS | CVME: 48 Ports Per Board |
| ISDN BRA | CCPE: 64 Ports Per Board DSRD/DSRE: 32 Ports Per Board |
| Power Parameters | |
|---|---|
| Power supply mode | DC or AC |
| Rated voltage | DC power supply: -48 V / -60 V AC power supply: 110 V / 220 V |
| Working voltage range | DC power supply: -38.4 V to -72 V AC power supply: 100 V to 240 V |
| Maximum input current | DC power supply: 10 A AC power supply: 6 A |
| Working environment temperature | -40°C to +65°C |
| Working environment humidity | 5% RH to 95% RH |
| Atmosphere pressure | 61 kPa to 106 kPa |
| Altitude | < 4000 m |
| Device Specifications | |
|---|---|
| Dimensions (W x D x H, excluding mounting brackets) | 442mm × 244.5mm × 88.1mm |
| Dimensions (W x D x H, including mounting brackets) | 535mm × 244.5mm × 88.1mm, for ETSI cabinet 482.6mm × 244.5mm × 88.1mm, for IEC cabinet |
| Weight (empty chassis) | 3.55 KG |
Huawei MA5600T Series OLT Comparison
| Huawei Optical Access Pure OLT Model Comparison | |||
| Item | MA5680T (IEC) | MA5683T | MA5608T |
|---|---|---|---|
| Dimensions (W × D × H), excluding mounting brackets | 442mm × 275.8mm × 441.7mm (Height: 10U) | 442mm × 283.2mm × 263.9mm (Height: 6U) | 442mm × 244.5mm × 88.1mm (Height: 2U) |
| Power | -48V DC power input | -48V DC power input | -48V DC power input or 110/220V AC power input |
| Board Configuration | 2 slots for control boards 14 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards | 2 slots for control boards 6 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards | 2 slots for control boards 2 slots for service boards 1 slot for the power interface board |
| Maximum number of GPON ports in a subrack | 224 | 96 | 32 |
Huawei MA5608T Board Selection Guide
1. GPON Service Board Selection
To determine the required number of GPON service boards for the MA5608T, first calculate the total number of GPON subscribers to be connected. While the OLT technically supports a maximum splitting ratio of 1:128, a ratio of 1:64 or lower is commonly used in practice for optimal network performance and service quality.
The calculation formula is as follows:
– For GPBD or GPBH boards (each providing 8 GPON ports): Number of boards = Total subscribers ÷ (64 subscribers per port × 8 ports per board)
– For GPFD boards (each providing 16 GPON ports): Number of boards = Total subscribers ÷ (64 subscribers per port × 16 ports per board)
Available GPON service boards for MA5608T from ISP-Home.com include:
– GPBD: 8-port GPON Interface Card
– GPBH: 8-port Advanced GPON OLT Interface Board
– GPFD: 16-port GPON OLT Interface Board
2. Uplink Board Selection
The MA5608T does not require a separate uplink board. The uplink functionality is integrated into the main control board. The MCUD or MCUD1 main control board provides the uplink ports directly. You can select GE or 10G optical interfaces, or use 1000Base-T electrical ports via electrical SFP modules if needed.
Available uplink configurations via main control boards from ISP-Home.com:
– MCUD: Provides 4 x GE SFP uplink interfaces
– MCUD1: Provides 2 x GE SFP + 2 x GE/10GE SFP uplink interfaces (supporting 10G capability)
3. Power Board Selection
The MA5608T platform supports both DC and AC power input. For DC power applications, select the MPWC Dual DC Power Board. For AC power applications, choose the MPWD AC Power Board. Both options provide power redundancy capabilities for enhanced system reliability.
4. Main Control Board Selection
The main control board is a critical component that manages system operations and provides uplink connectivity. For the MA5608T, the available options are:
– MCUD: Standard main control board with 4 GE SFP uplink ports
– MCUD1: Advanced main control board with 2 GE SFP + 2 GE/10GE SFP uplink ports, supporting 10G uplink capability
This configuration allows flexible deployment based on your bandwidth requirements and network infrastructure.
FAQ
| Board | Redundancy Backup | Upstream Ports |
|---|---|---|
| MCUD | Active/standby mode Load-sharing mode |
Four GE ports: GE0/GE1/GE2/GE3 |
| MCUD1 | Active/standby mode Load-sharing mode |
Two GE ports (GE0/GE1) and two GE/10GE combo ports (10GE0/GE2 and 10GE1/GE3) |
| Board | GPON Type | Port Quantity | ONU-based Shaping |
|---|---|---|---|
| GPBD | 1G-GPON | 8 ports | No |
| GPBH | 1G-GPON | 8 ports | Yes |
| GPFD | 1G-GPON | 16 ports | Yes |
| XGBC | 10G-GPON | 4 ports | Yes |
