Description

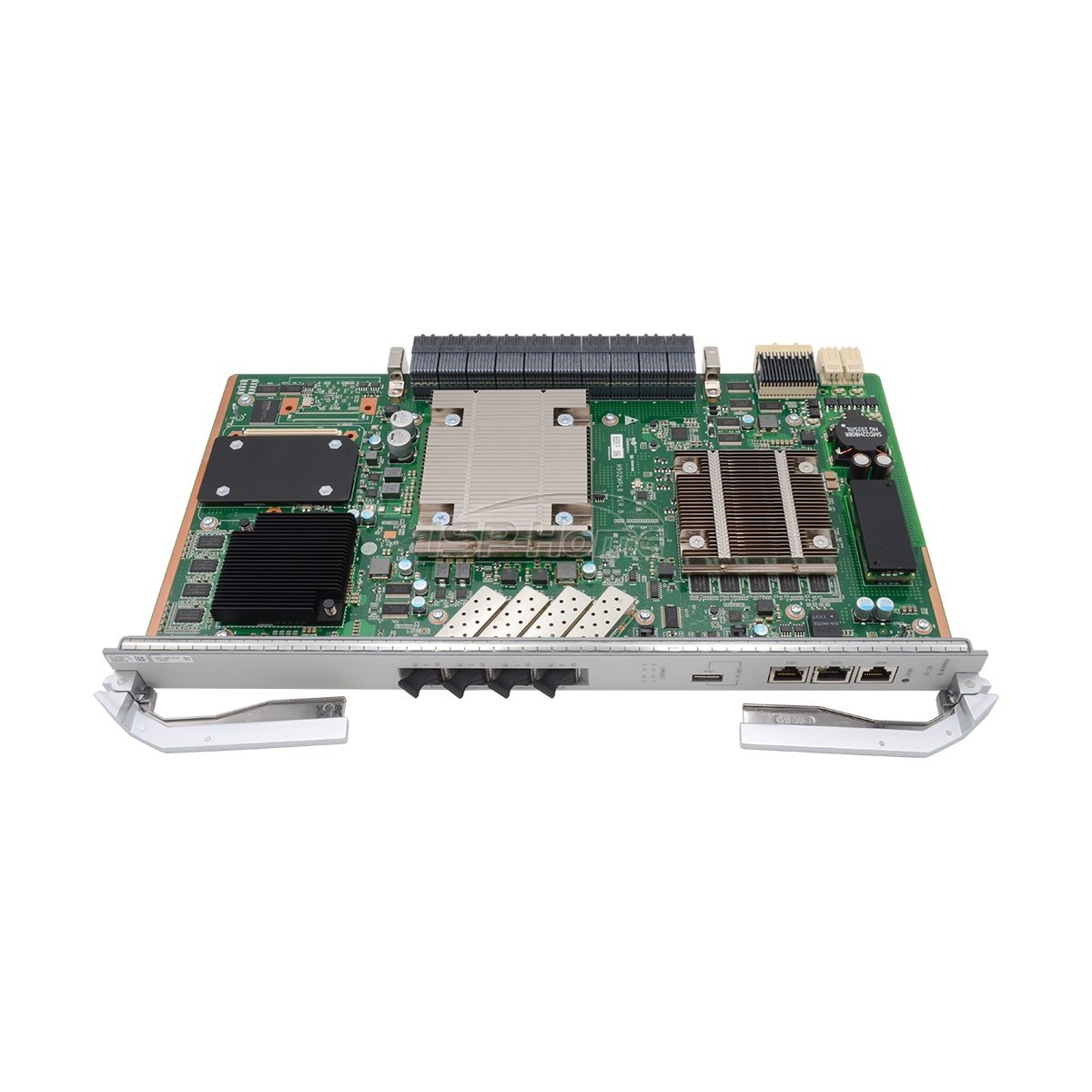

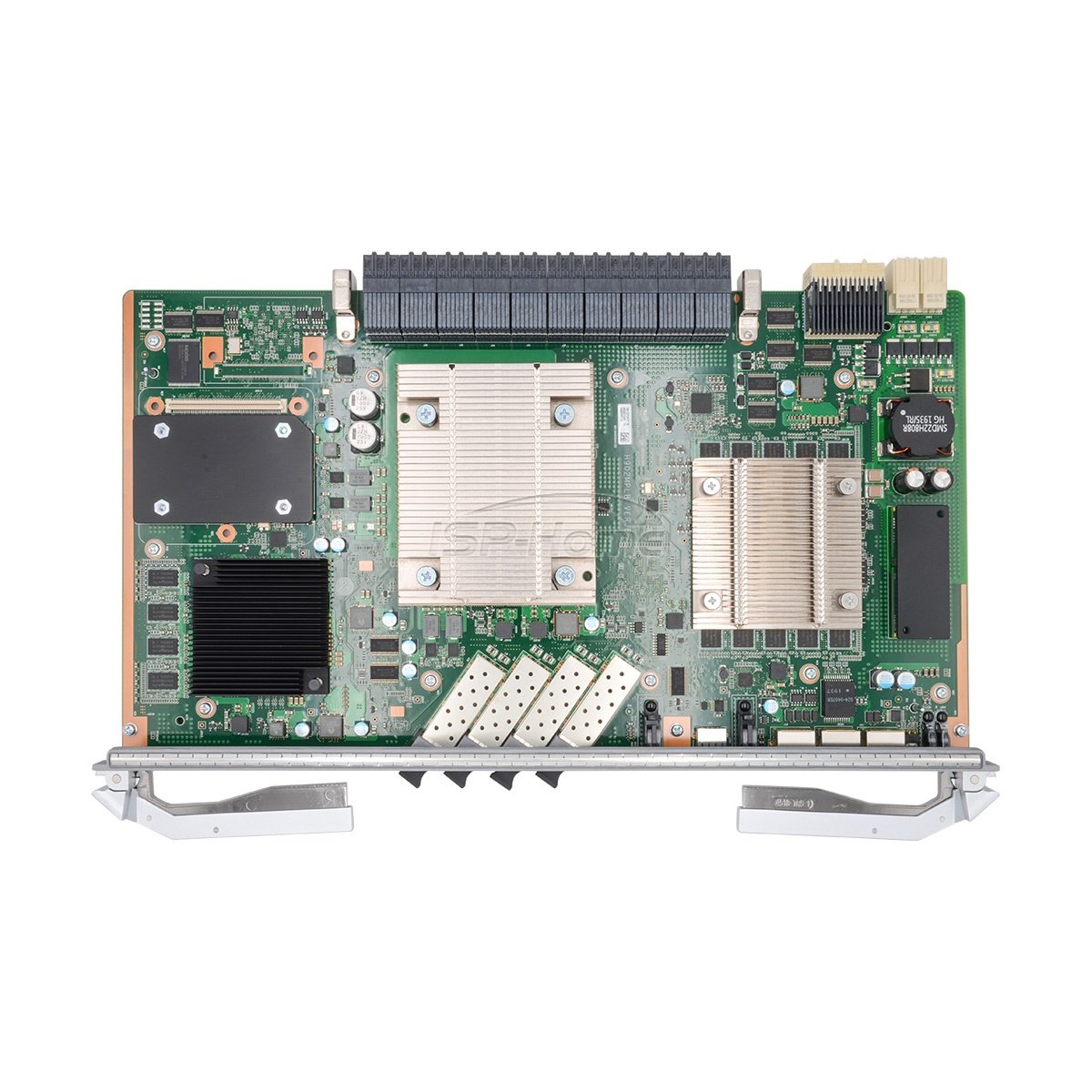

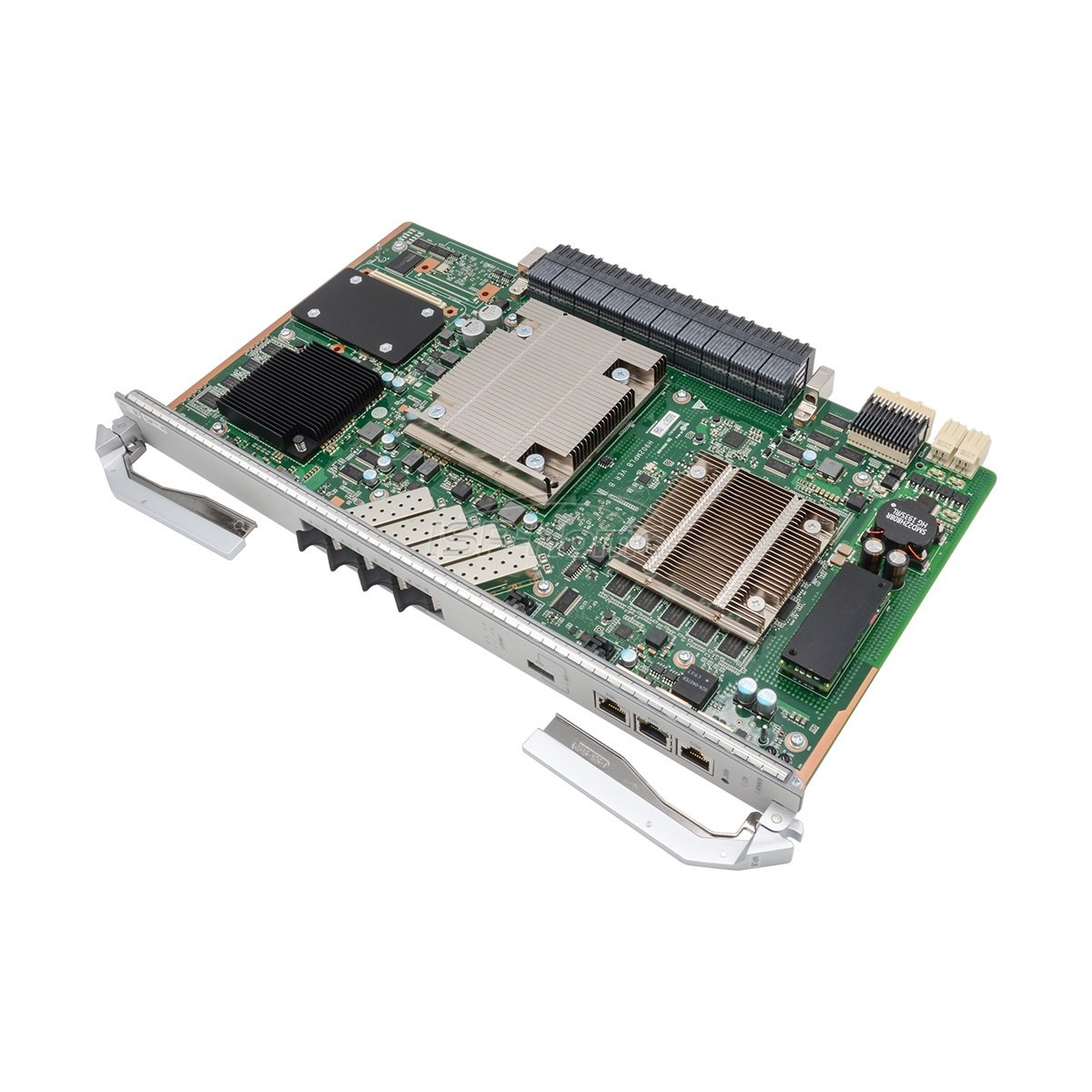

The Huawei H902MPLB is the main control card (MPLB) for the SmartAX MA5800 Next-Generation OLT. Acting as the core for system control and service switching, it supports access for up to 17,408 subscribers and an ARP table of 131,072 entries. It is designed for high reliability, featuring active/standby switchover and load sharing to maximize network uptime and performance.
Key Feature
System Capacity: Supports up to 17,408 subscribers and 131,072 ARP table entries.
High Availability: Supports active/standby switchover at the control plane and In-Service Software Upgrade (ISSU) for minimal downtime.
Performance Mode: Supports load sharing mode at the forwarding plane, effectively doubling processing performance.
Uplink Interfaces: Integrated 4 x SFP+/SFP ports (10GE/GE) for flexible and high-speed uplink connectivity.
Precision Timing: Supports Synchronization Ethernet (SyncE), 1588v2, and 1588ACR (with proper daughter boards) for precise timing.

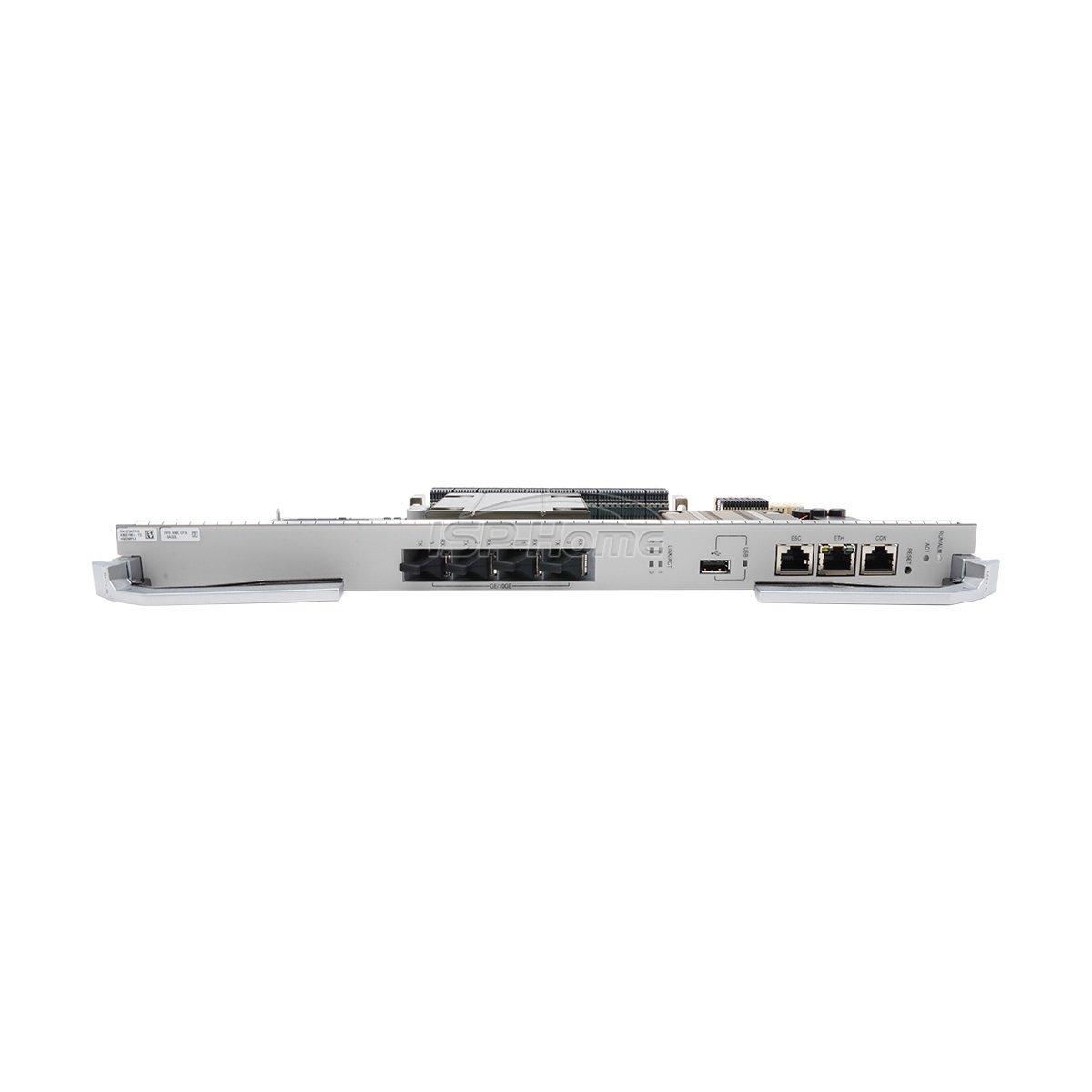

Management Ports: Provides CON (RJ-45), ETH (RJ-45), and ESC (RJ-45) interfaces for comprehensive local and remote management.
Hardware Specifications: Slot bandwidth of 200 Gbit/s (load sharing), MAC address table of 262,143, and operates from -40°C to +65°C.
H902MPLB Specifications
| Function | |
|---|---|
| Bandwidth per slot | 200Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 17408 |
| Multicast user | 17408 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 139264 |
| ARP table | 131072 |
| Maximum Frame Size | 2052 bytes 9216 bytes (jumbo frame enabled) |
| Environment | |
| Operating temperature | -40℃ to +65℃ |
| Power consumption | Static: 73W Maximum: 120W |
| Mechanical Specification | |
| Dimensions(mm) | 31(W)×258.9(D)×399.1(H) |
| Weight(kg) | 2.2 |
FAQ
Q:What is the Key distinction between Huawei MPLA and MPLB?
A: Functionally, the most significant difference is the enhanced per-slot bandwidth. While the MPLA supports 100 Gbit/s in load-sharing mode, the MPLB delivers 200 Gbit/s. This doubling of bandwidth represents a major performance upgrade, enabling the MPLB to handle higher data throughput for demanding applications.
