Description
ETP48100-B1-100A is a carrier-class AC/DC power converter, convert 220V/110V AC power to -48V DC power, MAX output 100A. ETP48100-B1-100A have 4 output, each MAX output 25A.
Application Scenarios
- Access network
- Transmission network
- Communication network of enterprise
Product Feature

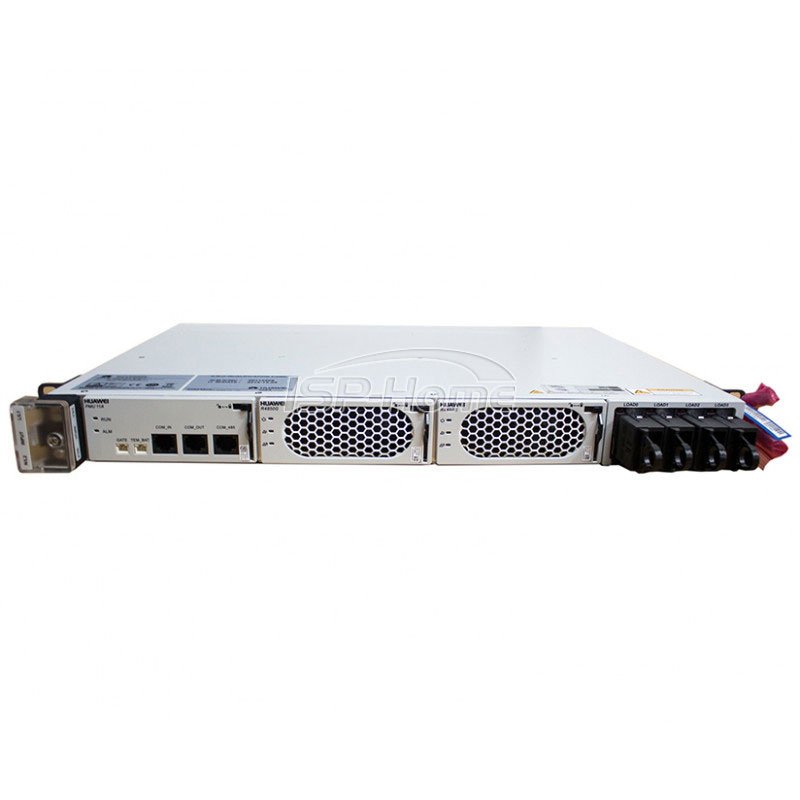

ETP48100-B1 100A Power Supply with 2xPSU(R4850G2), PMU(11A)
Maximum output power: 3000 W (176–290 V AC); 1250 W (85–175 V AC decreased linearly)

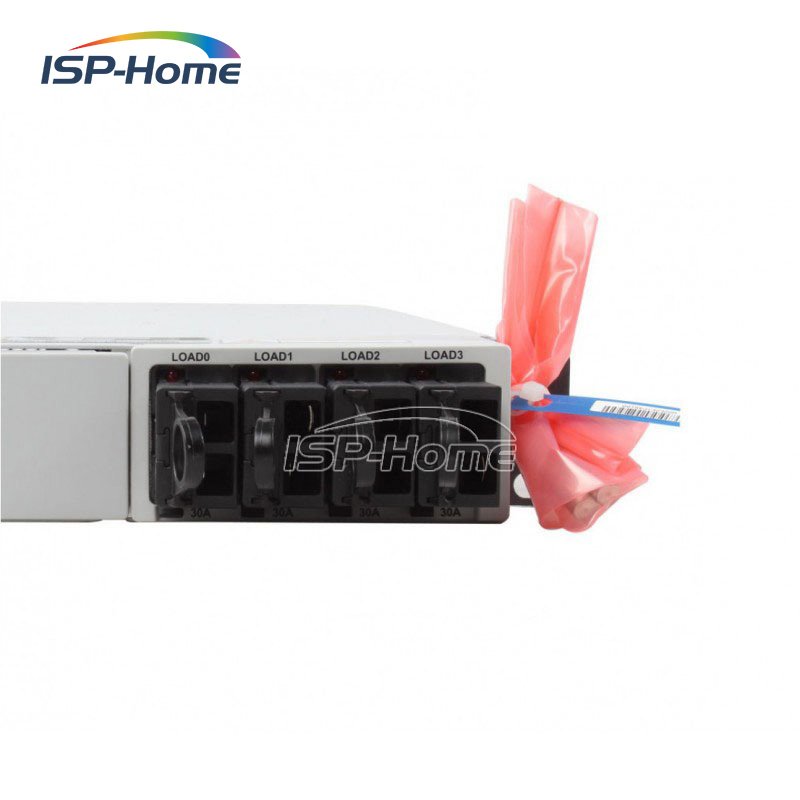

4 Power output port on ETP48100-B1 subrack, each provide 25A MAX
1 unit R4850G2 rectifier, total MAX output is 50A, Product:ETP48100-B1-50A
2 unit R4850G2 rectifier, total MAX output is 100A, Product: ETP48100-B1-100A
Easy output power cable connection
Without battery port
Power supply typically to Huawei OLT MA5683T, MA5680T, MA5800-X7, MA5800-X15, MA5800-X17
Tech Specs
| Parameter Category | Parameter Item | Specification Value |
|---|---|---|
| AC Input | Input Voltage | 100–120 V AC / 200–240 V AC (Dual Range, Selectable) |
| Input Frequency | 45–65 Hz | |
| Input Phase | Single-phase | |
| DC Output | Output Voltage Range | -42 V DC to -58 V DC |
| Rated Output Current (at 220V AC Input) | 30 A | |
| Maximum Output Power (176–290 V AC) | 3000 W | |
| Maximum Output Power (85–175 V AC) | 1250 W (Decreases linearly) | |
| Protection | Surge Protection (Differential Mode) | 2 kV |
| Surge Protection (Common Mode) | 4 kV | |
| General | Efficiency (Typical) | >96% |
| Operating Temperature Range | -40°C to +70°C | |
| Cooling Method | Natural Convection (Fanless) |
