Description

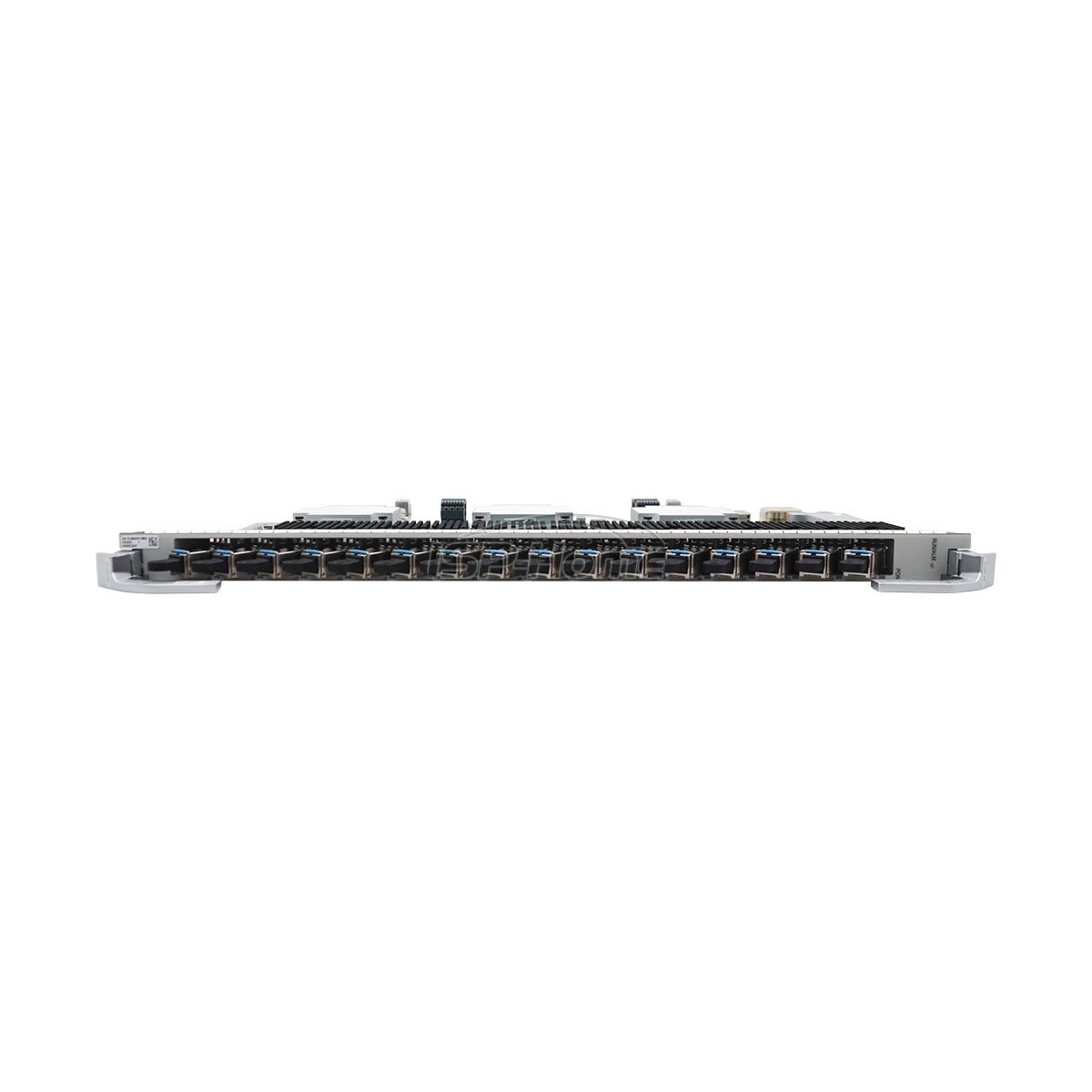

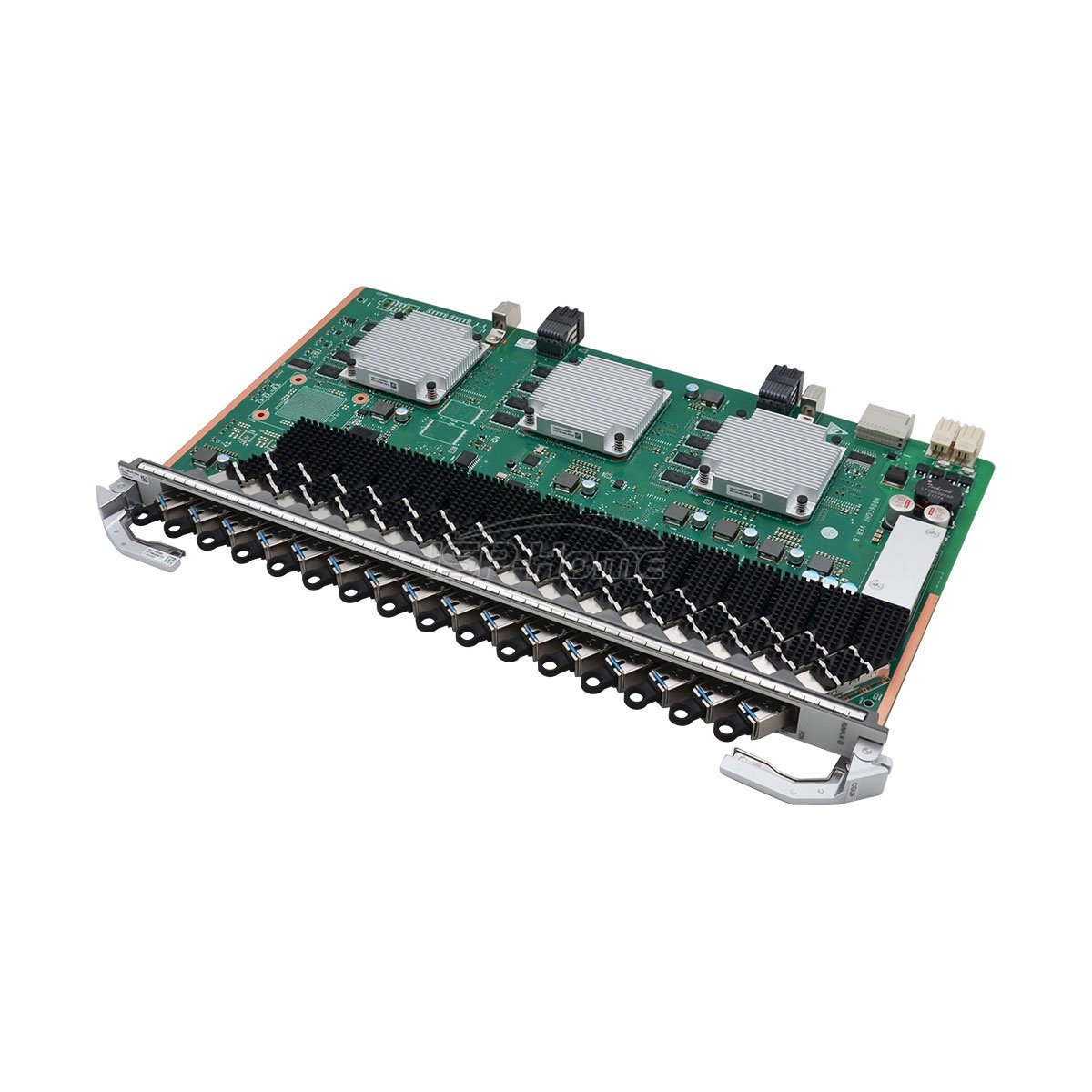

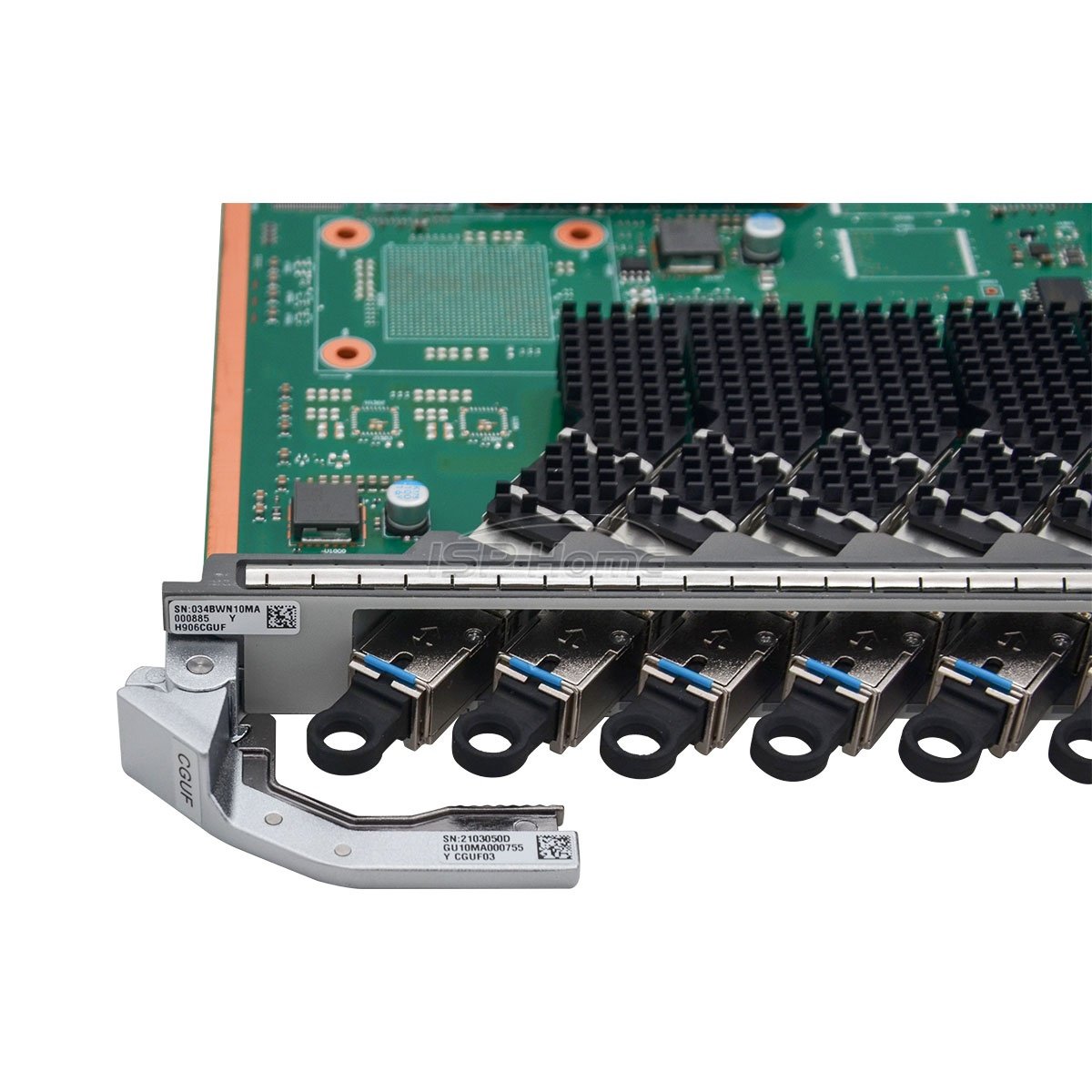

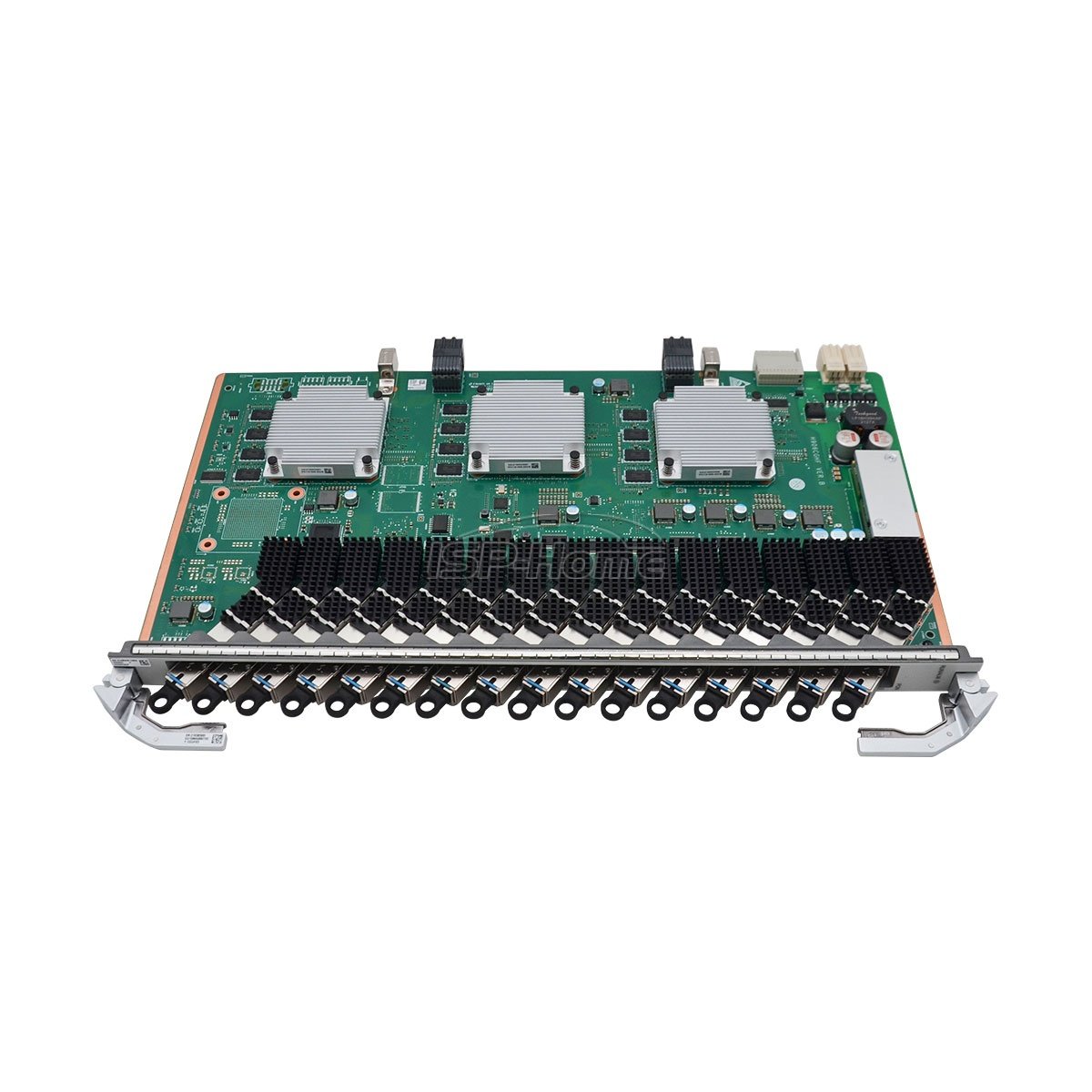

Huawei H906CGUF is a 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module, which applies to Huawei MA5800-X2, X7, X15, X17 NG OLT system. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
Key Specifications
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Forwarding Capability: 200 Gbit/s
Max split radio: 1:256
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XG-PON channel: Tx: 9.95Gbit/s, Rx: 2.49Gbit/s
Interface Type: SC
T-CONTs per PON port:
GPON: 1024
XG-PON: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16352
H906CGUF Specification
| Category | Parameter | Specification |
|---|---|---|
| Basic Information | Product Model | H906CGUF |
| Basic Information | Port Configuration | 16 XG-PON & GPON ports |
| Basic Information | Module Type | GPON SFP+ Module |
| Optical Specifications | Module Type | One-fiber bi-directional optical module, C+ |
| Optical Specifications | Encapsulation Type | SFP+ |
| Optical Specifications | Operating Wavelength (GPON Tx) | 1490 nm |
| Optical Specifications | Operating Wavelength (GPON Rx) | 1310 nm |
| Optical Specifications | Operating Wavelength (XG-PON Tx) | 1577 nm |
| Optical Specifications | Operating Wavelength (XG-PON Rx) | 1270 nm |
| Optical Specifications | Port Rate (GPON Tx) | 2.488 Gbit/s |
| Optical Specifications | Port Rate (GPON Rx) | 1.244 Gbit/s |
| Optical Specifications | Port Rate (XG-PON Tx) | 9.953 Gbit/s |
| Optical Specifications | Port Rate (XG-PON Rx) | 2.488 Gbit/s |
| Optical Specifications | Minimum Output Optical Power (GPON) | 3 dBm |
| Optical Specifications | Minimum Output Optical Power (XG-PON) | 4 dBm |
| Optical Specifications | Maximum Output Optical Power (GPON) | 7 dBm |
| Optical Specifications | Maximum Output Optical Power (XG-PON) | 8 dBm |
| Optical Specifications | Maximum Receiver Sensitivity (GPON) | -32 dBm |
| Optical Specifications | Maximum Receiver Sensitivity (XG-PON) | -29.5 dBm |
| Optical Specifications | Overload Optical Power (GPON) | -12 dBm |
| Optical Specifications | Overload Optical Power (XG-PON) | -9 dBm |
| Optical Specifications | Extinction Ratio | 8.2 dB |
| Optical Specifications | Optical Fiber Type | Single-mode |
| Optical Specifications | Optical Connector Type | SC |
| Performance Parameters | Forwarding Capability | 200 Gbit/s |
| Performance Parameters | Rate Mode | Asymmetric rate |
| Performance Parameters | T-CONTs per PON Port (GPON) | 1024 |
| Performance Parameters | T-CONTs per PON Port (XG-PON) | 2048 |
| Performance Parameters | Service Flows per PON Board | 16352 |
| Performance Parameters | Maximum Frame Size | 2052 bytes |
| Performance Parameters | Maximum Number of MAC Addresses | 131072 |
| Performance Parameters | Maximum Distance Difference Between ONUs | 40 km |
| Physical Specifications | Dimensions (W × D × H) | 23.30 mm × 257.90 mm × 399.20 mm |
| Physical Specifications | Power Consumption (Static) | 48 W |
| Physical Specifications | Power Consumption (Maximum) | 106 W |
| Physical Specifications | Operating Temperature | -40°C to +65°C |
