Description

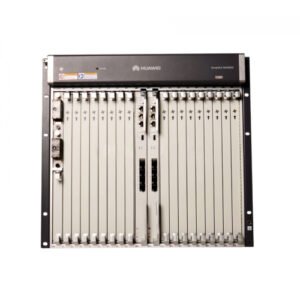

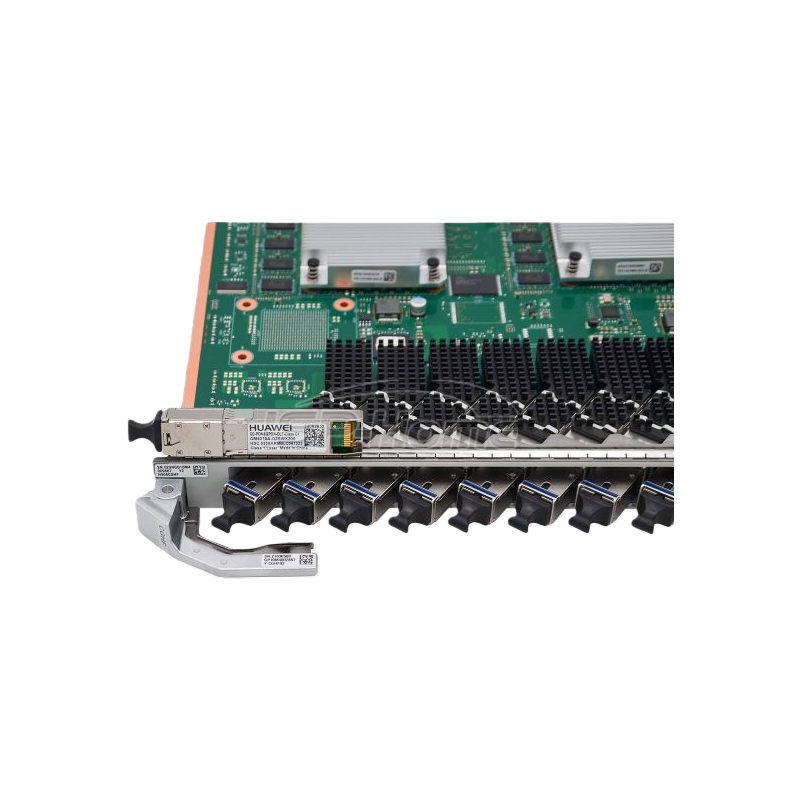

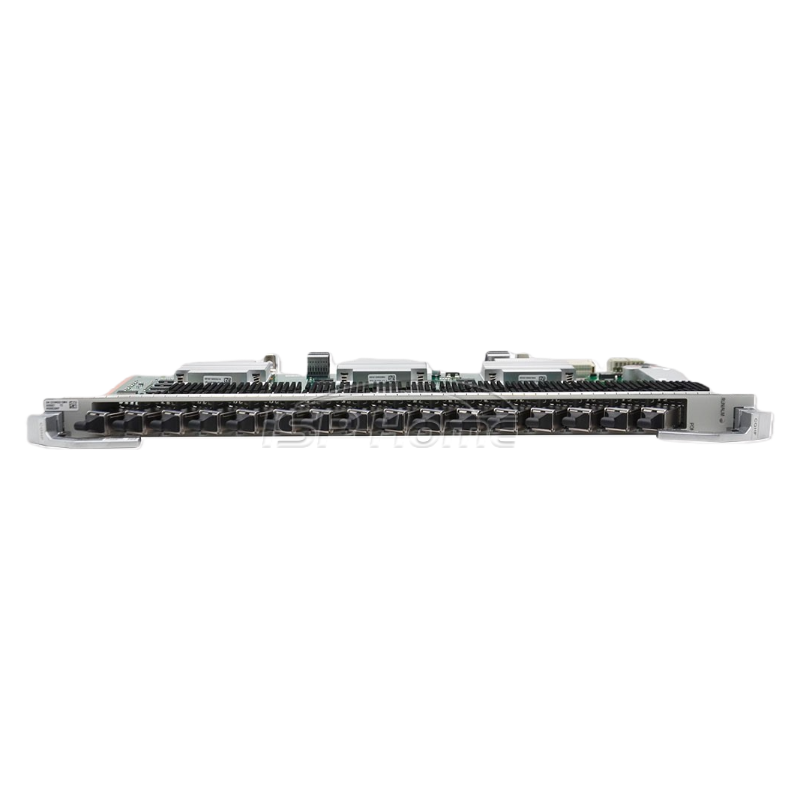

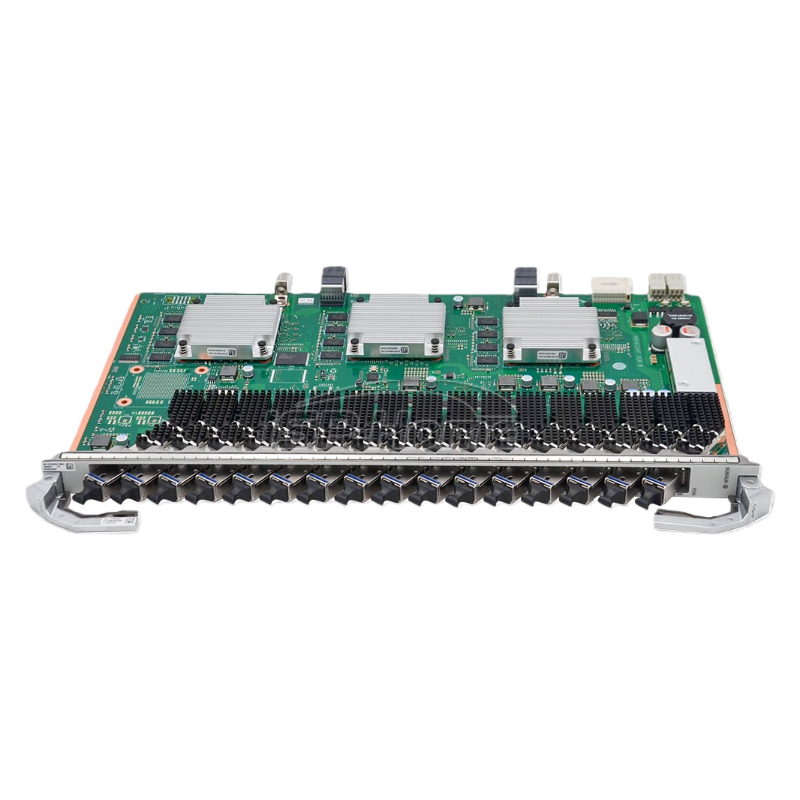

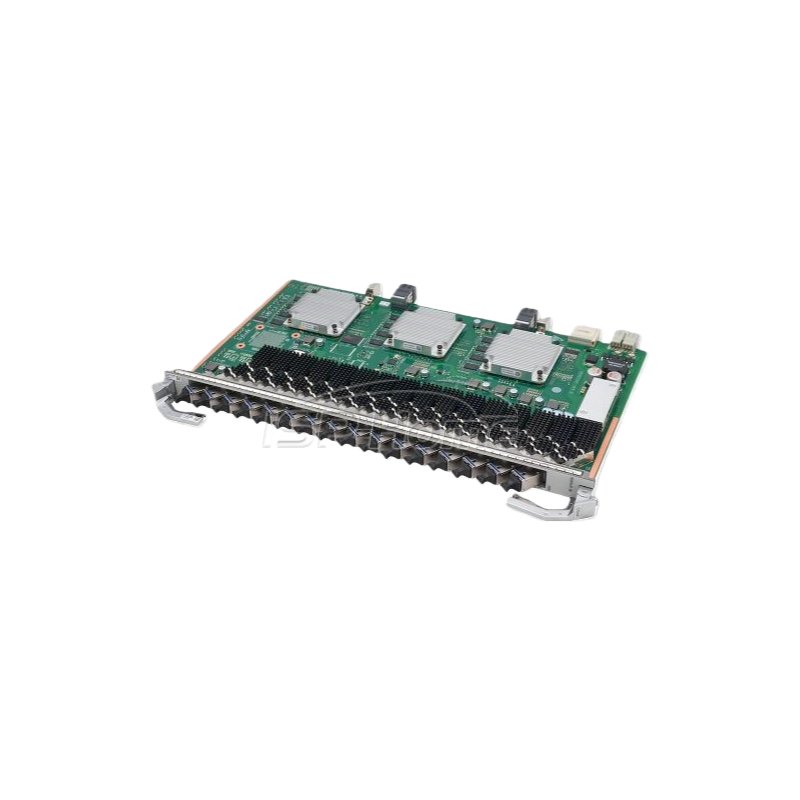

Huawei H906CGHF is a 16-port XG-PON and GPON Combo OLT interface board with XG-PON & GPON N2a Optical Module, which applies to Huawei MA5800-X2,MA5800-X7, MA5800-X15, MA5800-X17
Key Specifications
Combo Technology: Supports both XG-PON and GPON services on the same board.
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XG-PON channel: Tx: 9.95Gbit/s, Rx: 2.49Gbit/s
Interface Type: SC
16 Ports: Provides 16 SFP+ ports for connecting optical fibers.
High Split Ratio: Can support a maximum of 256 subscribers per port for XG-PON, and a high split ratio for GPON as well, for efficient service delivery.
High Forwarding Capacity: Has a total forwarding capability of 200 Gbit/s
H906CGHF
| Parameter | GPON Channel | XG-PON Channel |
|---|---|---|
| Port Configuration | 16 XG-PON & GPON ports | |
| Module Type | One-fiber bi-directional optical module, N2a | |
| Encapsulation Type | SFP+ | |
| Optical Connector Type | SC | |
| Optical Fiber Type | Single-mode | |
| Transmit Wavelength | 1490 nm | 1577 nm |
| Receive Wavelength | 1310 nm | 1270 nm |
| Transmit Rate | 2.488 Gbit/s | 9.953 Gbit/s |
| Receive Rate | 1.244 Gbit/s | 2.488 Gbit/s |
| Minimum Output Optical Power | 3 dBm | 4 dBm |
| Maximum Output Optical Power | 7 dBm | 8 dBm |
| Maximum Receiver Sensitivity | -32 dBm | -29.5 dBm |
| Overload Optical Power | -12 dBm | -9 dBm |
| Extinction Ratio | 8.2 dB | |
| Forwarding Capability | 200 Gbit/s | |
| Rate Mode | Asymmetric rate | |
| T-CONTs per PON Port | 1024 | 2048 |
| Service Flows per PON Board | 16352 | |
| Maximum Frame Size | 2052 bytes (9216 bytes with jumbo frame enabled) | |
| Maximum Number of MAC Addresses | 131072 | |
| Two ONUs under Same PON Port | 40 km | |
| Dimensions (W x D x H) | 23.30 mm × 257.90 mm × 399.20 mm | |
| Power Consumption | Static: 48 W, Maximum: 106 W | |
| Operating Temperature | -40°C to +65°C | |
FAQ
Q: What is the MAX. split ratio of CGHF service card?
A: MAX. split ratio: 1:256
Q: Does CGHF support 9216 jumbo frames?
A: Yes, 16-port X-GPON&GPON combo OLT interface board CGHF supports jumbo frame, greatly imporving transmission efficiency.
Q: How many uses does CGHF support?
A: CGHF 10G GPON card can support 2048 access users.
