Description

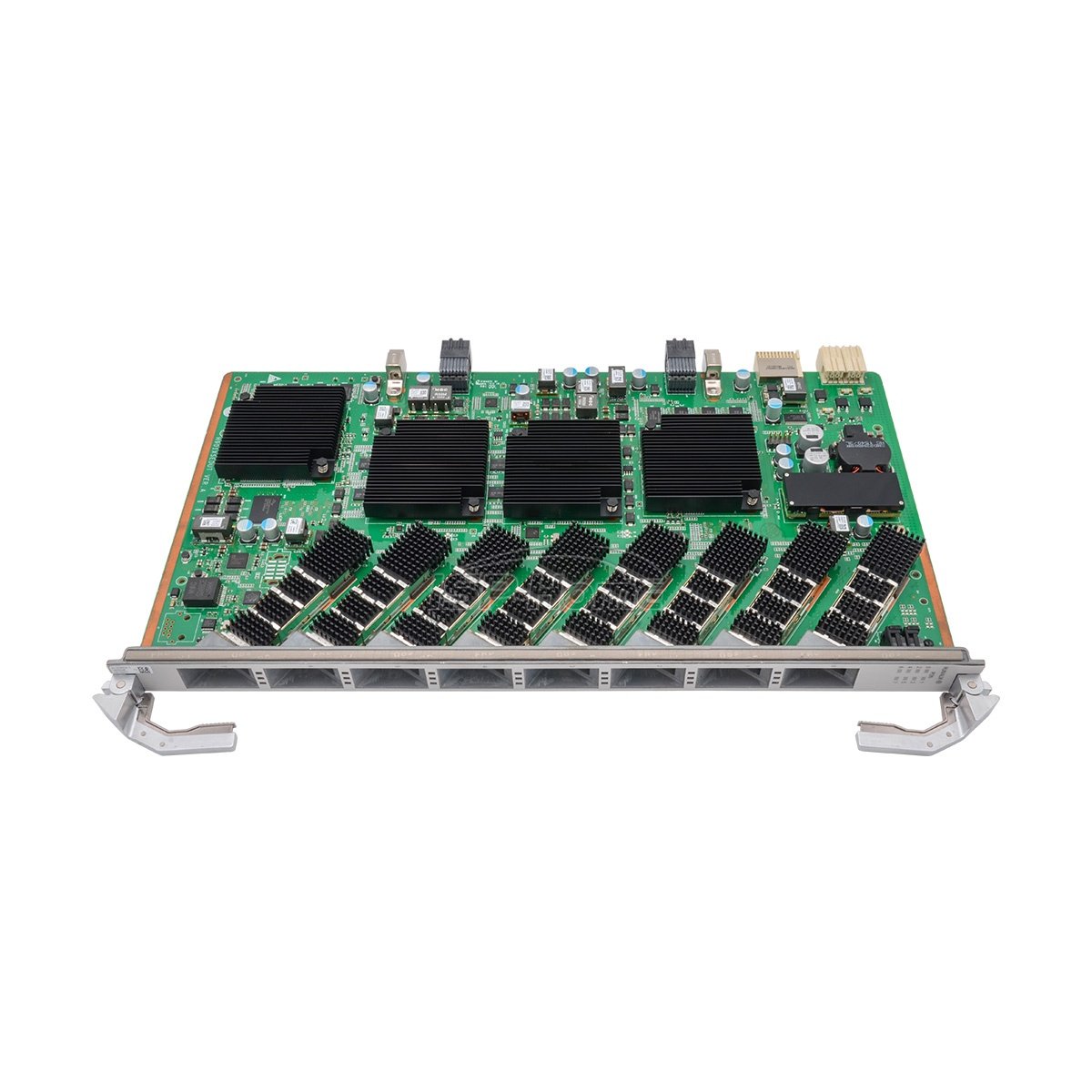

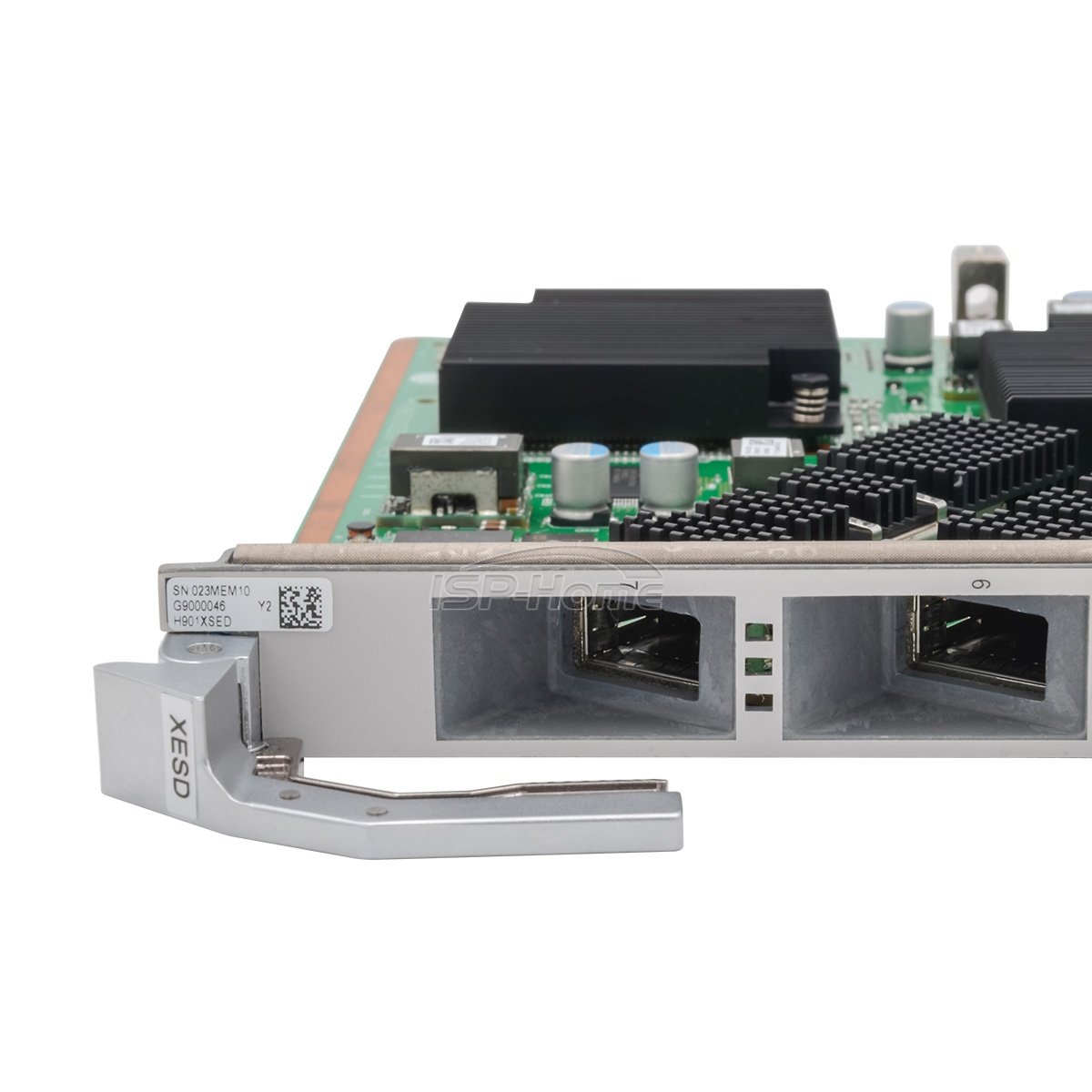

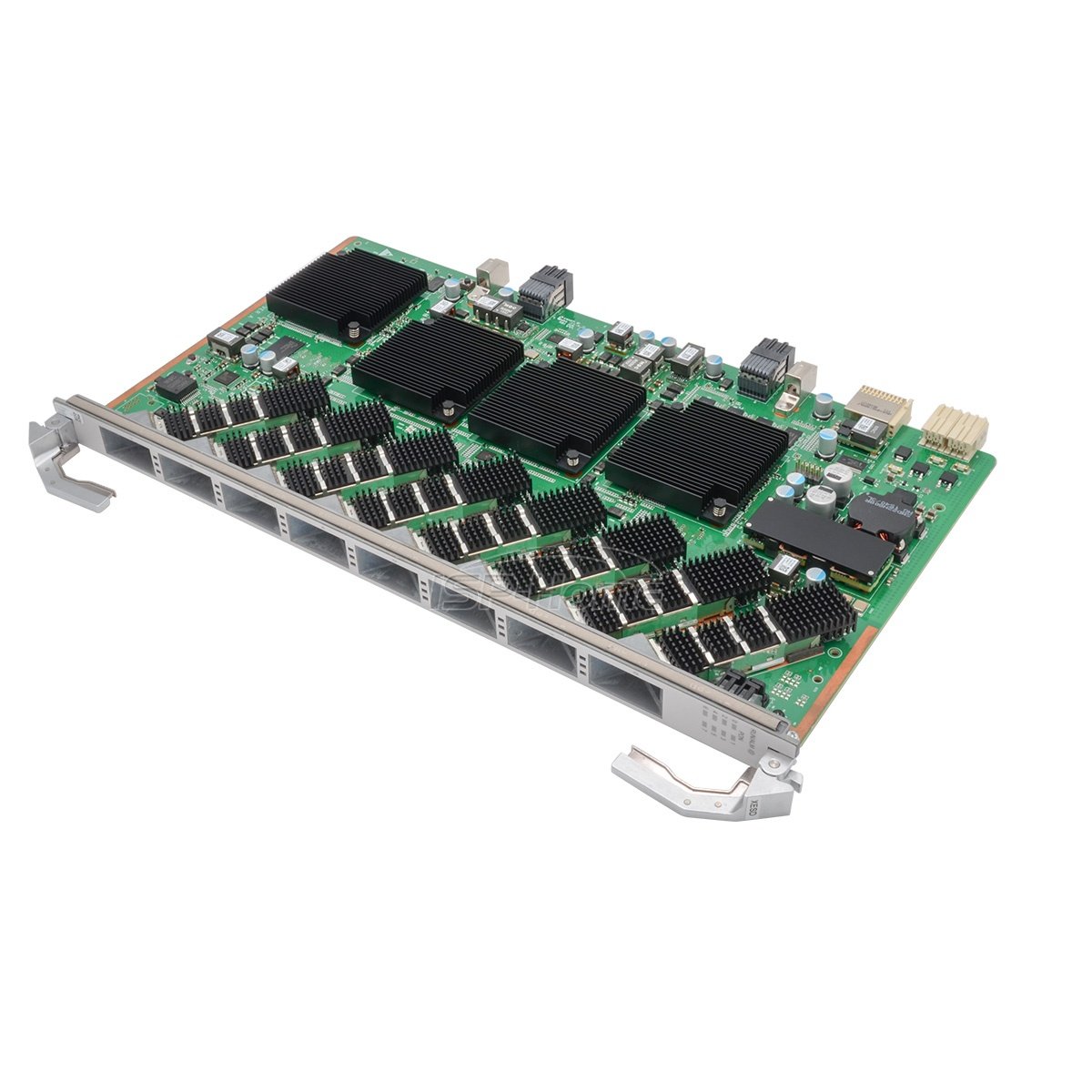

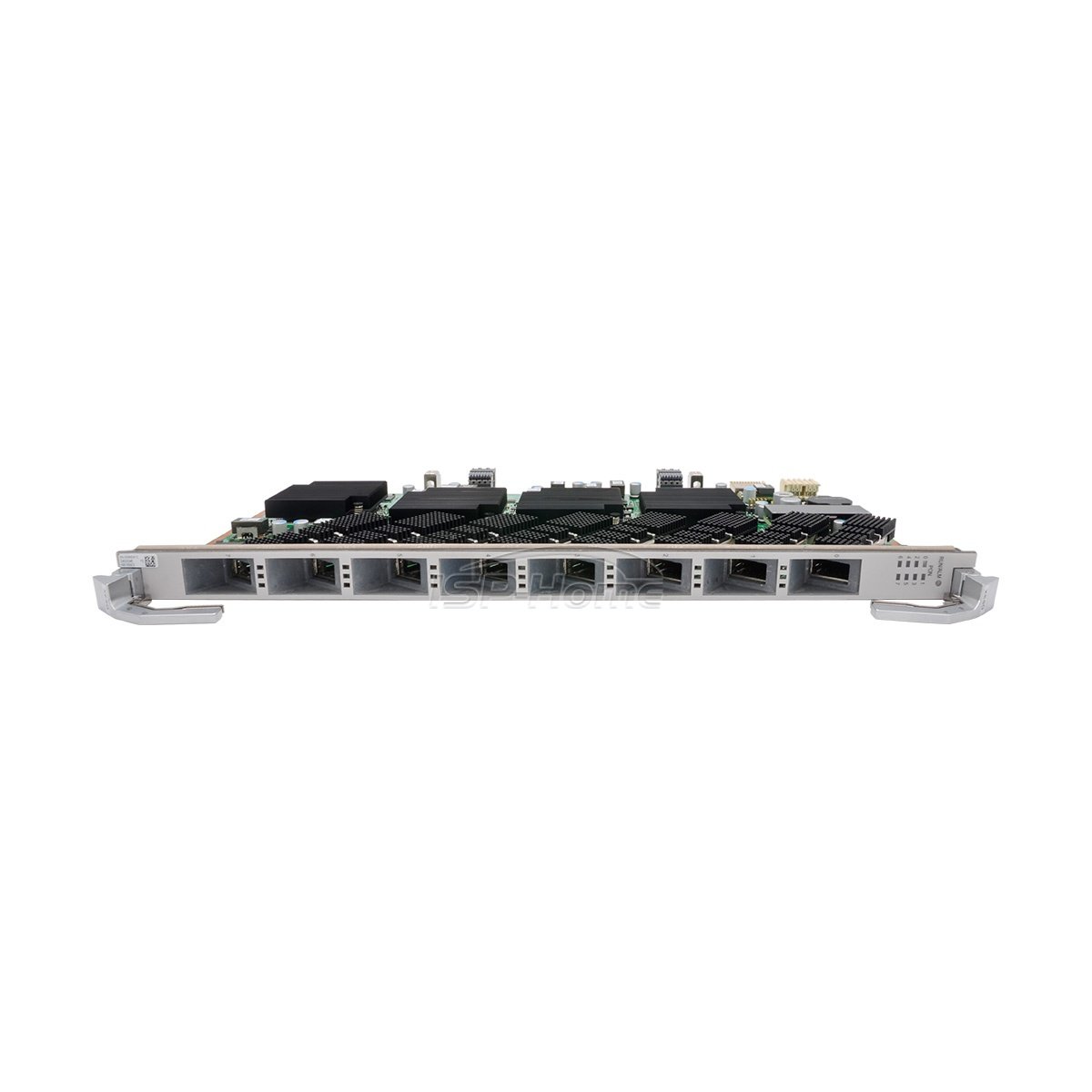

Huawei H901XSED is an 8-port Symmetric XGS-PON OLT Interface Board, apply to Huawei MA5800-X2, X7, X15, X17 NG OLT system, and it works together with the ONU to provide symmetric XGS-PON access services. It delivers asymmetric rates of 9.95 Gbit/s downstream and 2.49 Gbit/s upstream, supporting a maximum split ratio of 1:256 and a transmission distance of up to 40 km.
Key Specifications
Huawei 8-port Symmetric 10G GPON (XGS-PON) OLT Interface Board
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Forwarding capability: 80Gbit/s
Maximum split ration 1:256
Rate mode: Asymmetric & Symmetric
Transmit Speed: 9.953 Gbit/s
Receive Speed: 9.953 Gbit/s & 2.488 Gbit/s
T-CONTs per PON port: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16376
Maximum transmission distance: 40 km
10G-GPON optical module Overload Optical Power: -7 dBm
H901XSED
| Category | Parameter | Specification |
|---|---|---|
| Basic Information | Product Model | H901XSED |
| Brand | Huawei | |
| Service Ports | GPON Port Type | 8 Symmetric 10G GPON Port |
| Encapsulation Type | 10G-GPON | |
| Port Rate | Tx: 9.953 Gbit/s; Rx: 9.953 Gbit/s & 2.488 Gbit/s | |
| Performance | Forwarding Capability | 80 Gbit/s |
| Rate Mode | Asymmetric/Symmetric | |
| T-CONTs per PON Port | 2048 | |
| Service Flows per PON Board | 16376 | |
| Maximum Frame Size | 2052 bytes / 9216 bytes (jumbo frame enabled) | |
| Maximum Number of MAC Addresses | 131072 | |
| Maximum Distance Difference Between ONUs | 40 km | |
| Queue Scheduling Hierarchy | 4-level HQoS | |
| Features & Functions | FEC | Bidirectional |
| CAR Group | Supported | |
| HQoS | Supported | |
| Variable-length OMCI | Supported | |
| ONU-based/Queue-based Shaping | Supported | |
| Type B Protection (Single-homing) | Supported | |
| Type B Protection (Dual-homing) | Not Supported | |
| Rogue ONT Detection and Isolation | Supported | |
| 1588v2 | Not Supported | |
| Automatic Shutdown at High Temperature | Supported | |
| Energy Saving for Service Boards | Supported | |
| D-CCAP | Supported | |
| Optical Specifications | Type | One-fiber bi-directional optical module |
| Operating Wavelength | Tx: 1577 nm; Rx: 1270 nm | |
| Minimum Output Optical Power | 2 dBm | |
| Maximum Output Optical Power | 6 dBm | |
| Maximum Receiver Sensitivity | -28 dBm | |
| Optical Connector Type | SC/PC | |
| Optical Fiber Type | Single-mode | |
| Overload Optical Power | -6 dBm | |
| Extinction Ratio | 8.2 dB | |
| Physical Specifications | Dimensions (W × D × H) | 23.30 mm × 257.90 mm × 399.20 mm |
| Power Consumption | Static: 108 W; Maximum: 151 W | |
| Operating Temperature | -40°C to +55°C (MA5800-X17/X15/X7) -40°C to +65°C (MA5800-X2) |
