Description

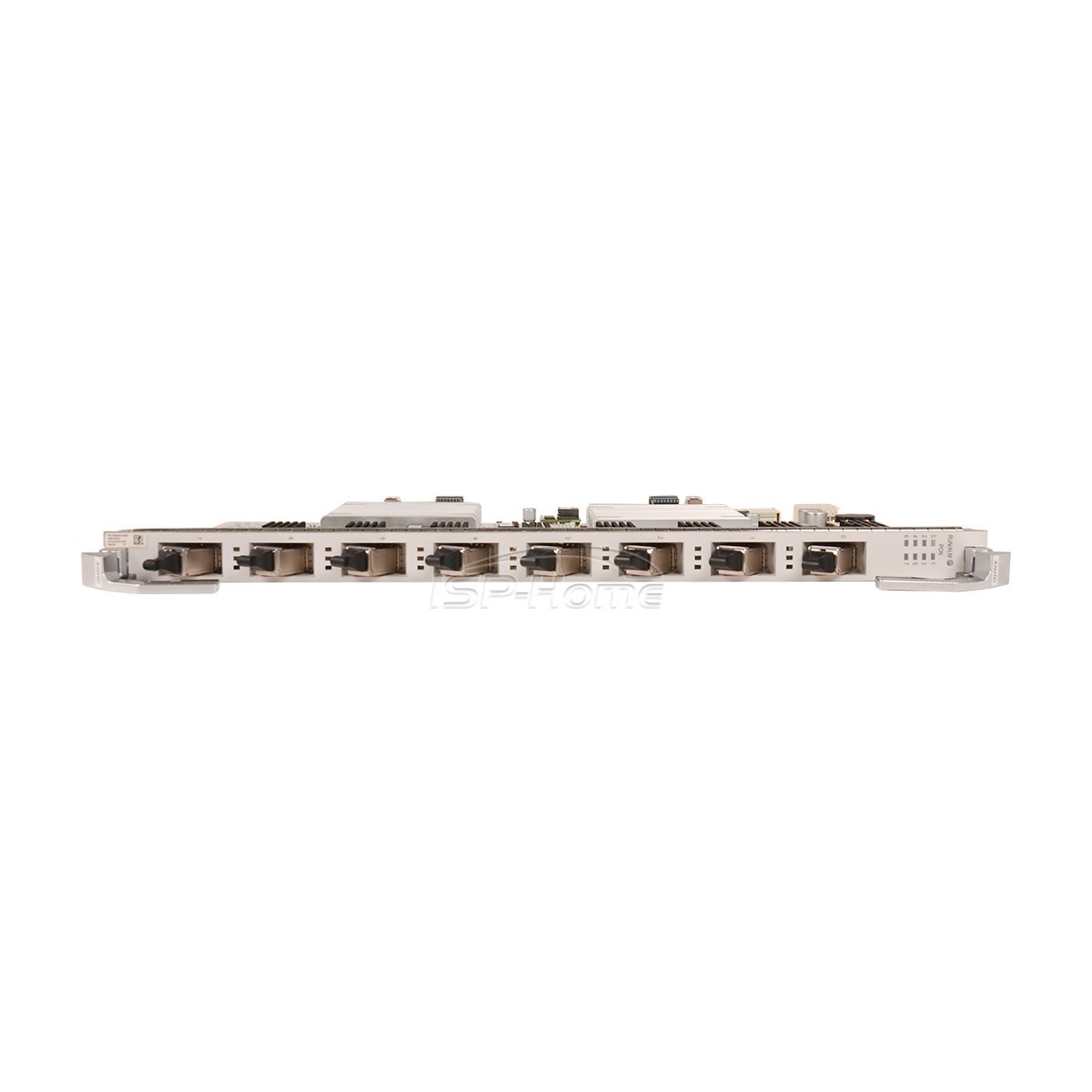

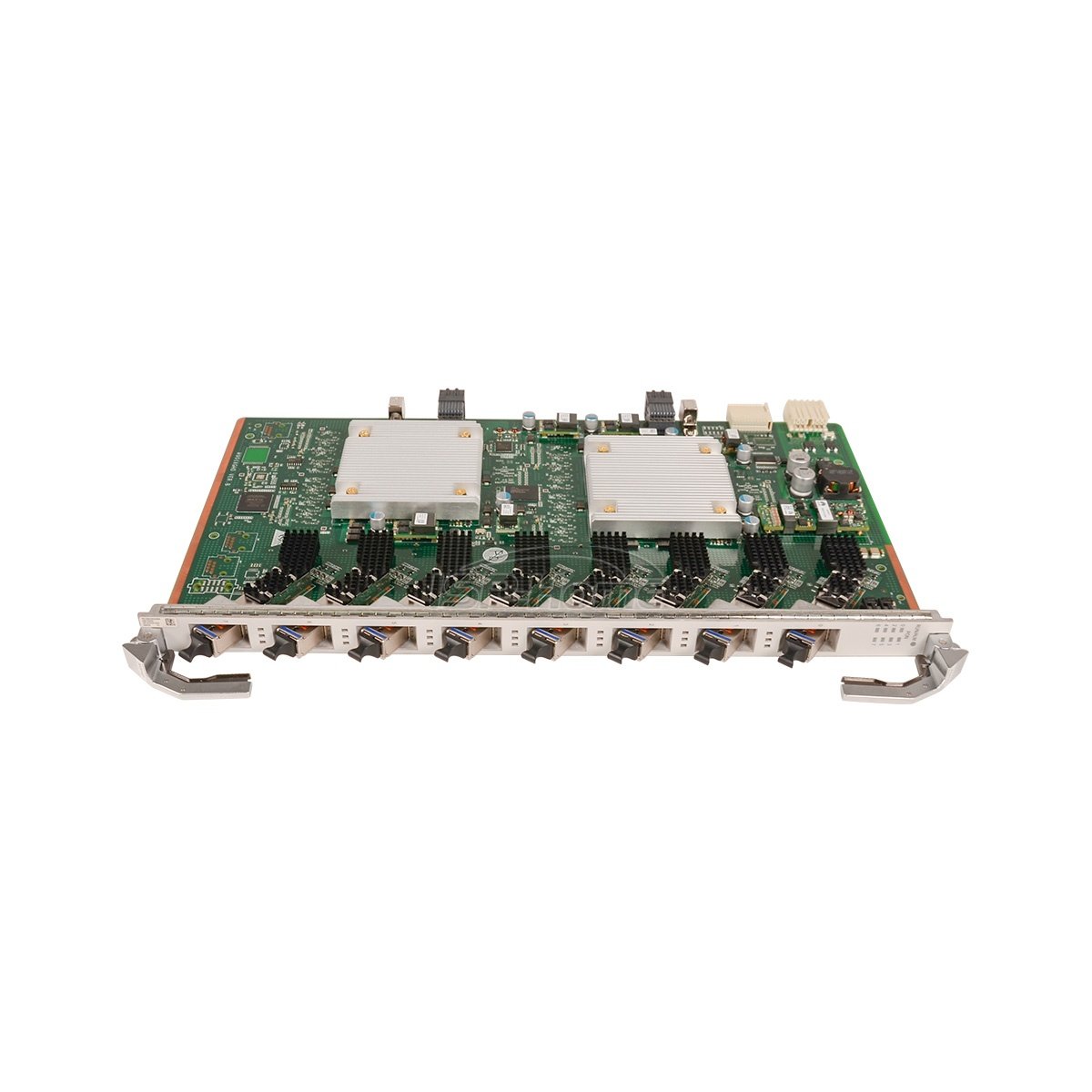

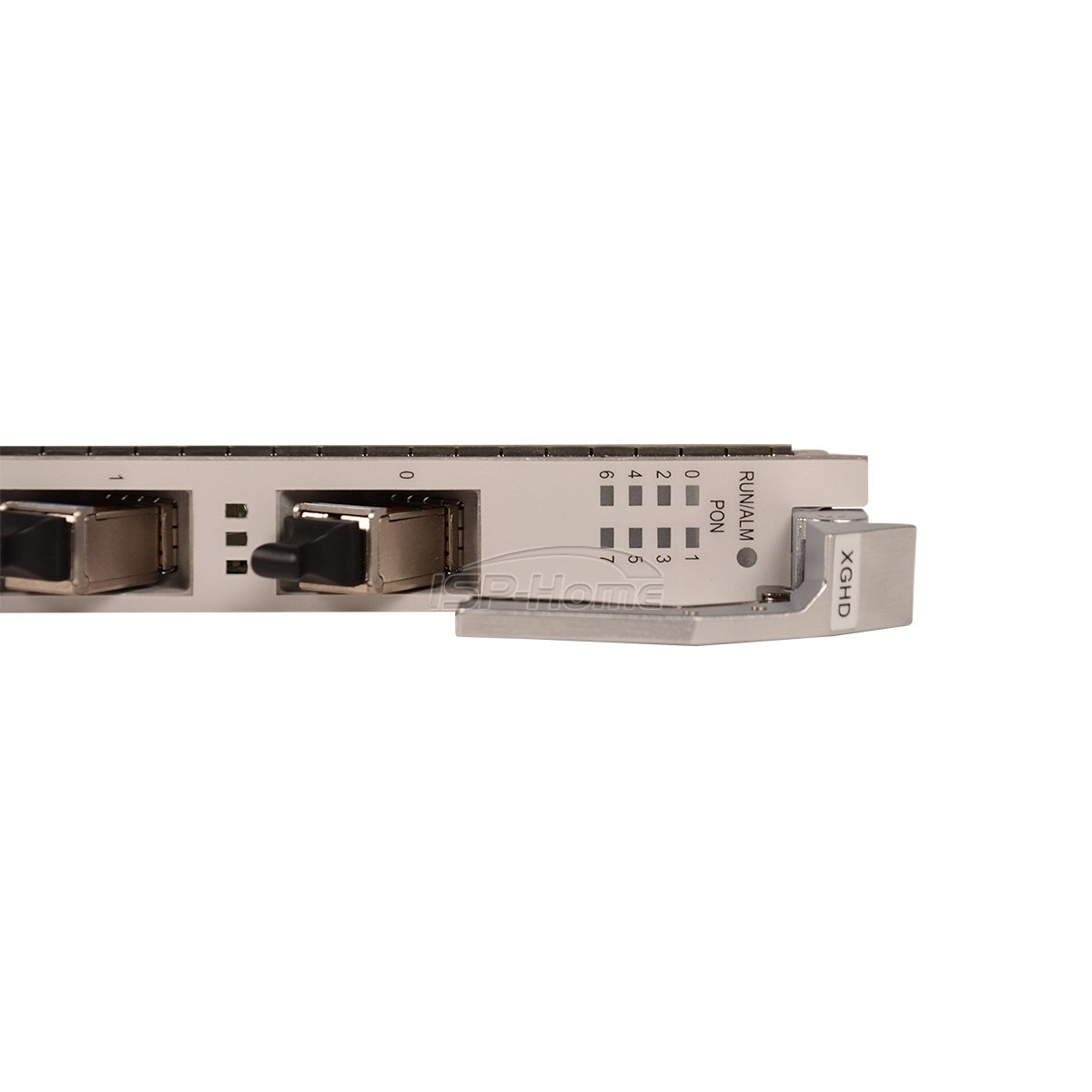

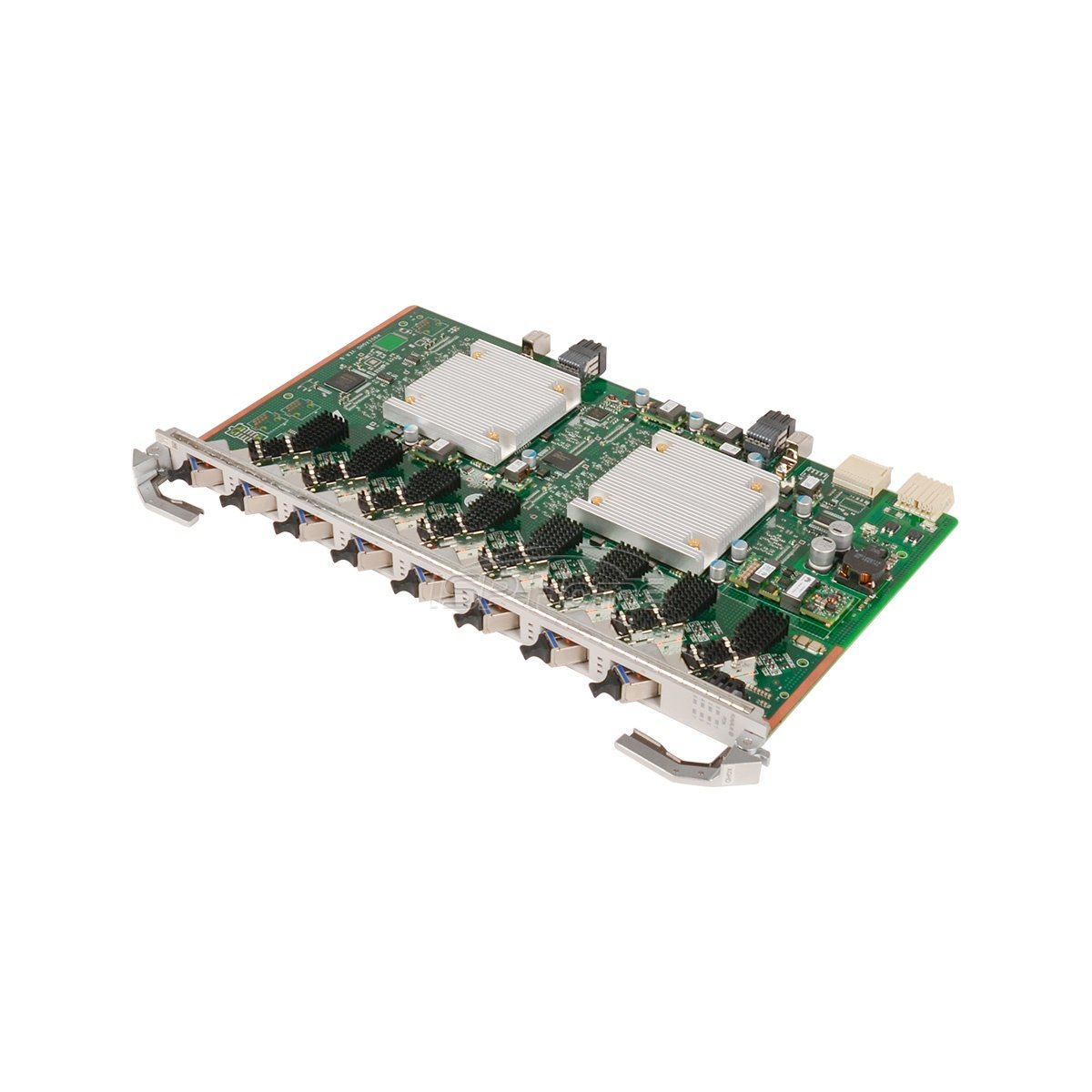

Huawei H901XGHD is an 8-port XG-PON interface board with XG-PON N1/N2a optical module, apply to Huawei MA5800-X2, X7, X15, X17 NG OLT system, and it works together with the ONU to provide symmetric XGS-PON access services. It delivers asymmetric rates of 9.95 Gbit/s downstream and 2.49 Gbit/s upstream, supporting a maximum split ratio of 1:256 and a transmission distance of up to 40 km. This board enables high-density, non-blocking access for up to 2,048 subscribers and features 4-level HQoS, jumbo frames, and Type B/C protection for reliable, high-quality broadband services.
Key Specifications
Huawei 8-port 10G GPON Port Interface Card with XGPON N1 SFP+ Optical Module
Apply to Huawei MA5800 SmartAX X2, X7, X15, X17 NG OLT system
Forwarding Capality: 80Gbit/s
Max split radio: 1:256
Transmit Speed: 9.95Gbit/s, Receive Speed: 2.49Gbit/s
Interface Type: SC/PC
Maximum transmission distance: 40 km
10G-GPON optical module Overload Optical Power: -7 dBm
T-CONTs per PON port: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16376
Rate mode: Asymmetric rate
Advanced thermal design ensuring reliable operation under various environmental conditions
High-precision clock synchronization to support demanding applications
Robust security features to safeguard network integrity and customer data
H901XGHD
| Category | Parameter | Value |
|---|---|---|
| Basic Information | Brand | Huawei |
| Product Name | SmartAX MA5800 H901XGHD | |
| Type | 8-port 10G GPON OLT Interface Board | |
| Port Quantity | 8 Ports | |
| Compatible Equipment | Huawei SmartAX MA5800 Series OLT | |
| Network Interface | 10G GPON | |
| Port Type | SC/PC | |
| Performance | Port | 8 |
| Forwarding Capability | 40 Gbit/s | |
| Rate Mode | Asymmetric rate | |
| Downstream Speed | 9.95 Gbit/s | |
| Upstream Speed | 2.49 Gbit/s | |
| Split Ratio | 1:256 | |
| T-CONTs per PON Board | 2048 | |
| Service Flows per PON Board | 16376 | |
| Maximum Frame Size | 2052 bytes / 9216 bytes (jumbo frame enabled) | |
| Maximum Number of MAC Addresses | 131072 | |
| Maximum Distance Difference Between Two ONUs | 40 km | |
| Transmission Distance | 20 km | |
| FEC | Bidirectional | |
| CAR Group | Supported | |
| HQoS | Supported | |
| Variable-length OMCI | Supported | |
| ONU-based Shaping or Queue-based Shaping | Supported | |
| Features & Protection | Type B Protection (Dual-homing) | Supported |
| Type B Protection (Single-homing) | Supported | |
| 1588v2 | Supported | |
| Rogue ONT Detection and Isolation | Supported | |
| Automatic Shutdown at High Temperature | Supported | |
| Energy Saving for Service Boards | Supported | |
| D-CCAP | Supported | |
| Optical Module Type | One-fiber bi-directional optical module | |
| Operating Wavelength | Tx: 1577 nm / Rx: 1270 nm | |
| Encapsulation Type | SFP+ | |
| Minimum Output Optical Power | 2 dBm (N1) / 4 dBm (N2a) | |
| Maximum Output Optical Power | 6 dBm (N1) / 8 dBm (N2a) | |
| Optical Specifications | Maximum Receiver Sensitivity | -27.5 dBm (N1) / -29.5 dBm (N2a) |
| Optical Connector Type | SC/PC | |
| Optical Fiber Type | Single-mode | |
| Overload Optical Power | -7 dBm (N1) / -9 dBm (N2a) | |
| Extinction Ratio | 8.2 dB | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm | |
| Power Consumption | Static: 42 W / Maximum: 65 W | |
| Operating Temperature | -40°C to +65°C | |
| Services & Management | Supported Protocols | GPON, EPON, XG-PON1, XGS-PON, 10G EPON |
| Optical Module | Class B+/C+/C++ | |
| Service Support | VoIP, HSI, IPTV, CATV, Mobile Backhaul, etc. | |
| Quality of Service (QoS) | Enhanced QoS features | |
| Installation Mode | Plug and play | |
| Management Protocols | OMCI and TR-069 |
