Description

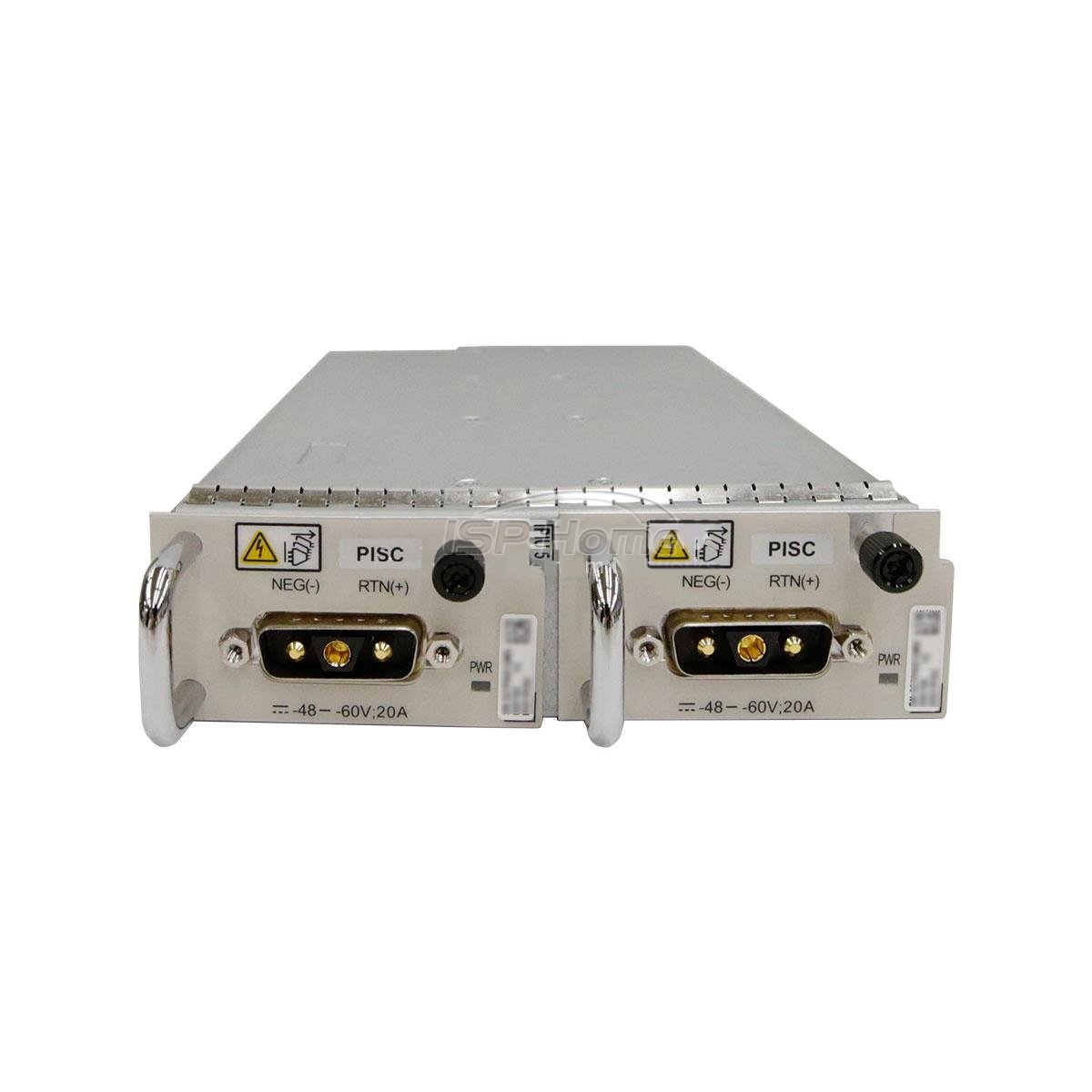

H901PISC is a Huawei DC power transfer board for SmartAX MA5800 X2 OLT. It leads in channels of -48 V or -60 V DC power, and transfers the power to the protection circuit, then to the filter circuit, and finally to the backplane, supplying power to the other boards.
Key Specifications
H901PISC DC connect power board
Apply to Huawei MA5800 X2 OLT
Two DC power inputs
Power Supply: -48 V or -60 V DC.
H901PISC Specification
| Parameter | Value |
|---|---|
| Model | H901PISC |
| Function | -48 V or -60 V DC power input (input voltage range: -38.4 V to -72 V) |
| Power Consumption | Static: 2.5 W Maximum: 3 W |
| Dimensions (mm) | 35.28 (W) × 253.00 (D) × 130.00 (H) |
| Weight (kg) | 0.79 |
