Description

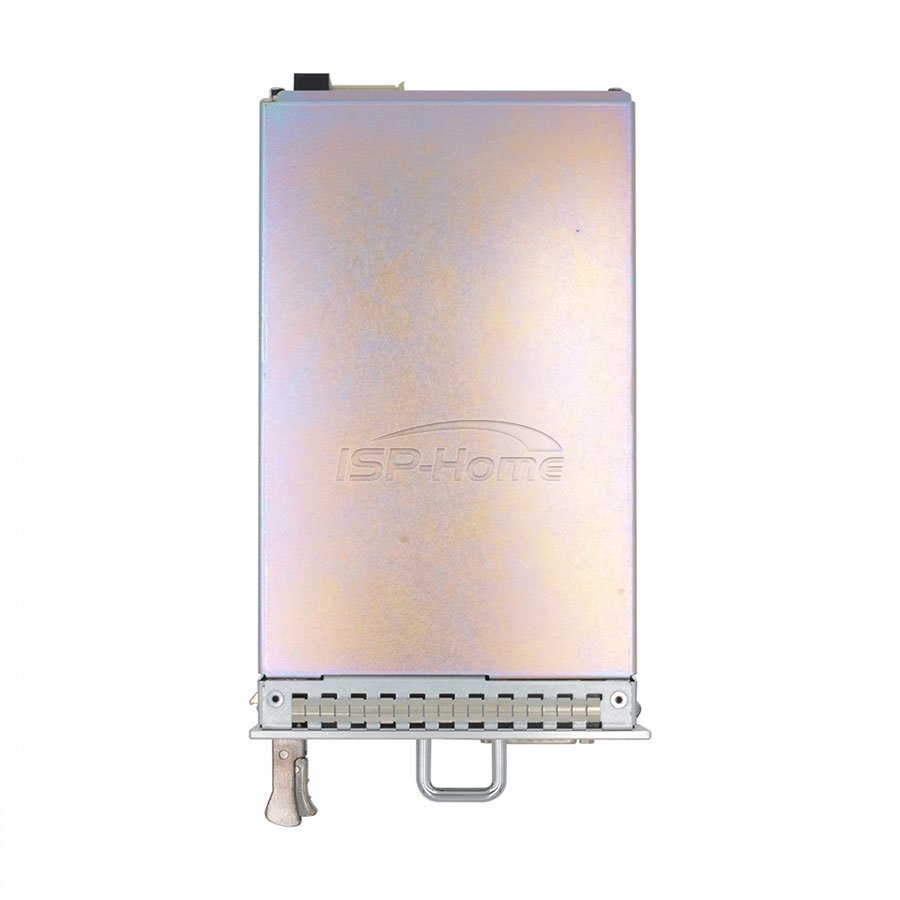

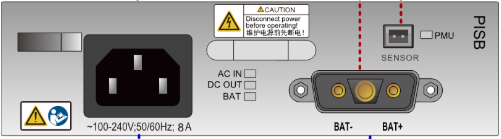

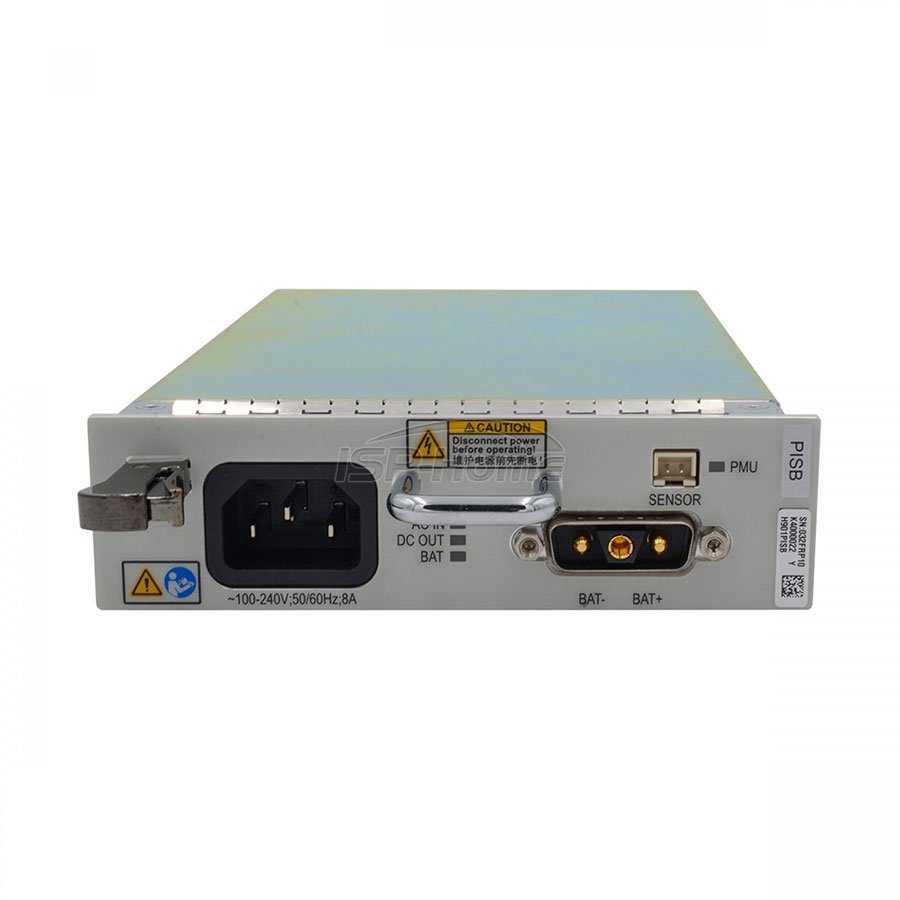

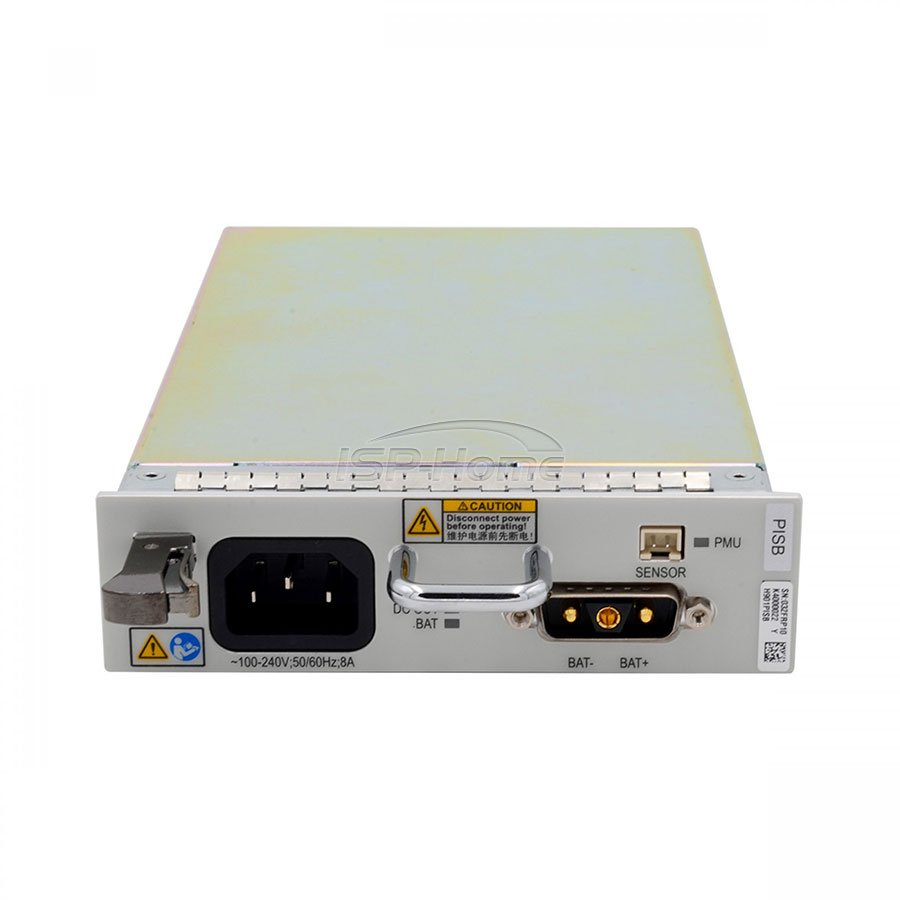

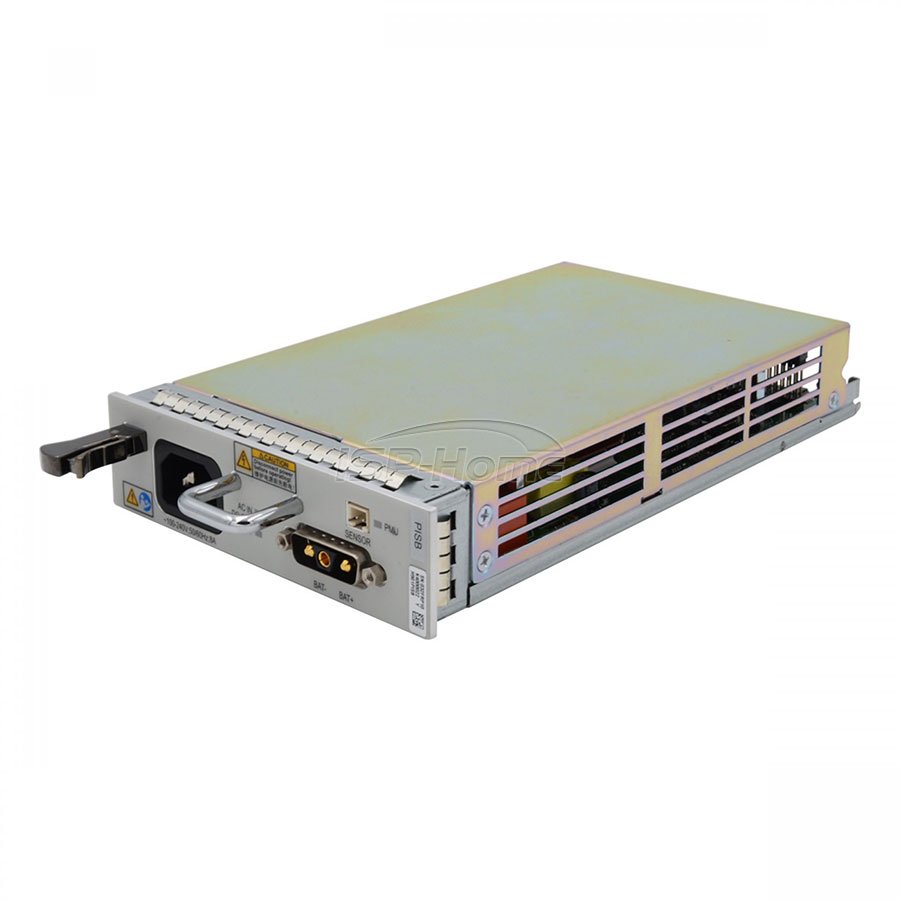

The H901PISB is Huawei MA5800 X2 AC Connect Power Board, consisting of an AC power unit and a monitoring unit.The board supplies power to the device and supports the lead-acid battery for power backup. The AC power unit provides overcurrent, output overvoltage, short circuit, and over-temperature protection. The monitoring unit provides comprehensive management for the power system and storage battery, and also provides environment monitoring functions.
Key Specifications
H901PISB AC connect power board
Apply to Huawei MA5800 X2 OLT
1 channel of 220 V AC or 110 V AC input
Rated output power: 600 W
1 battery for power backup
Input overcurrent protection
Input power monitoring
Temperature query and high-temperature alarm
H901PISB Specification
| Parameter | H901PISB |
|---|---|
| Function | 220V AC or 110V AC input |
| Power Consumption | Static: 5 W Maximum transfer efficiency: 93% (220 V, 100% load, 25℃) |
| Dimensions (mm) | 35.28 (W) x 253.00 (D) x 130.00 (H) |
| Weight (kg) | 1.12 |
