Description

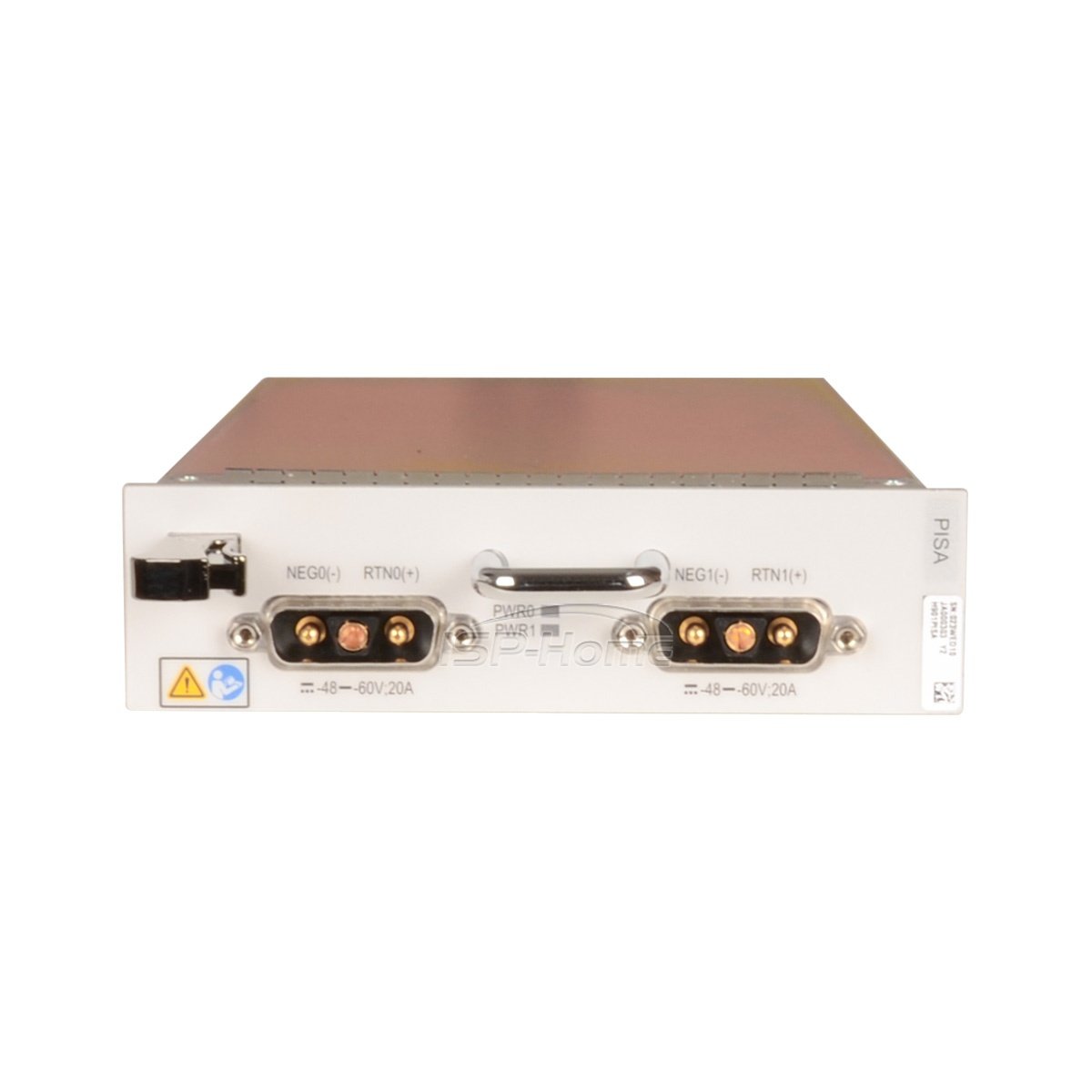

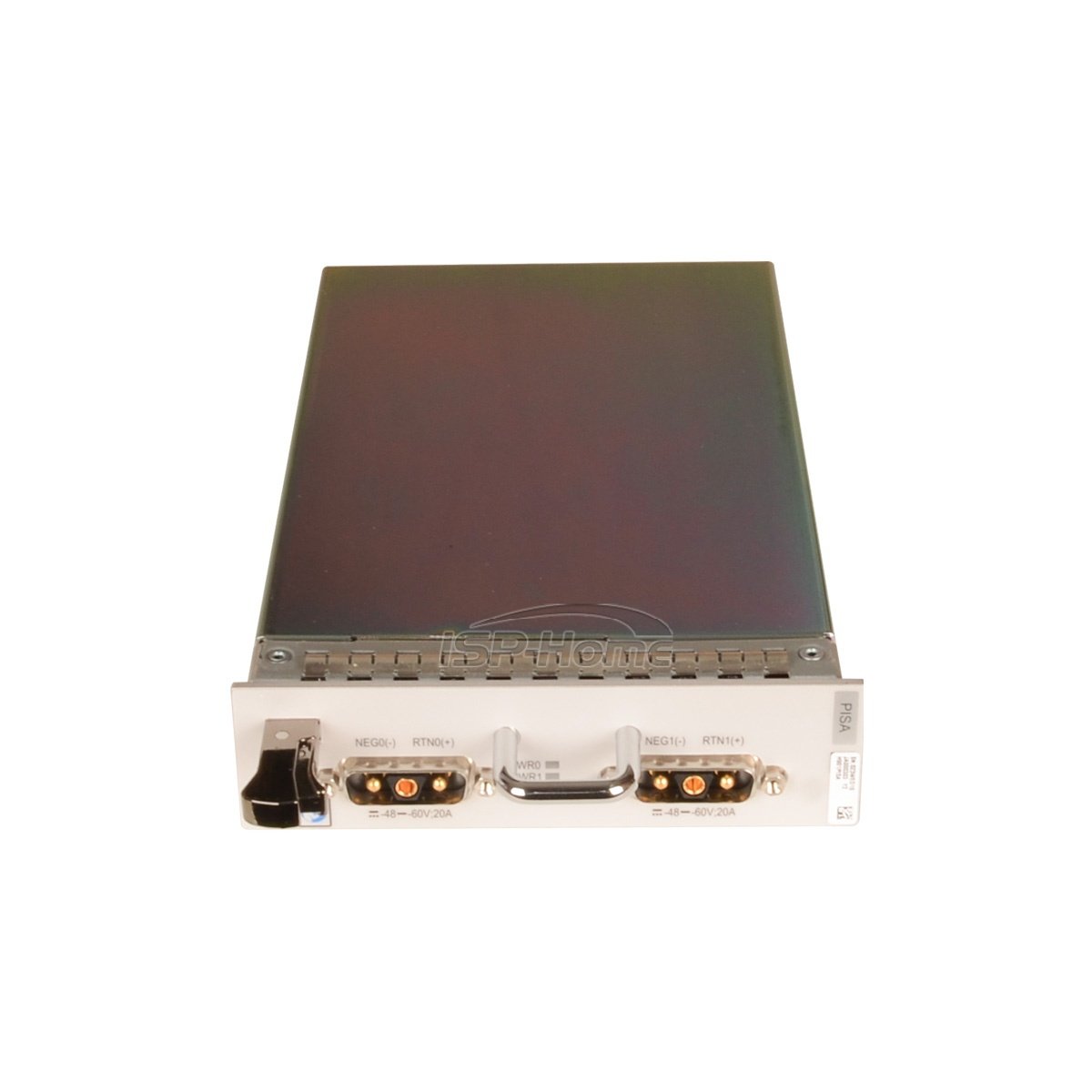

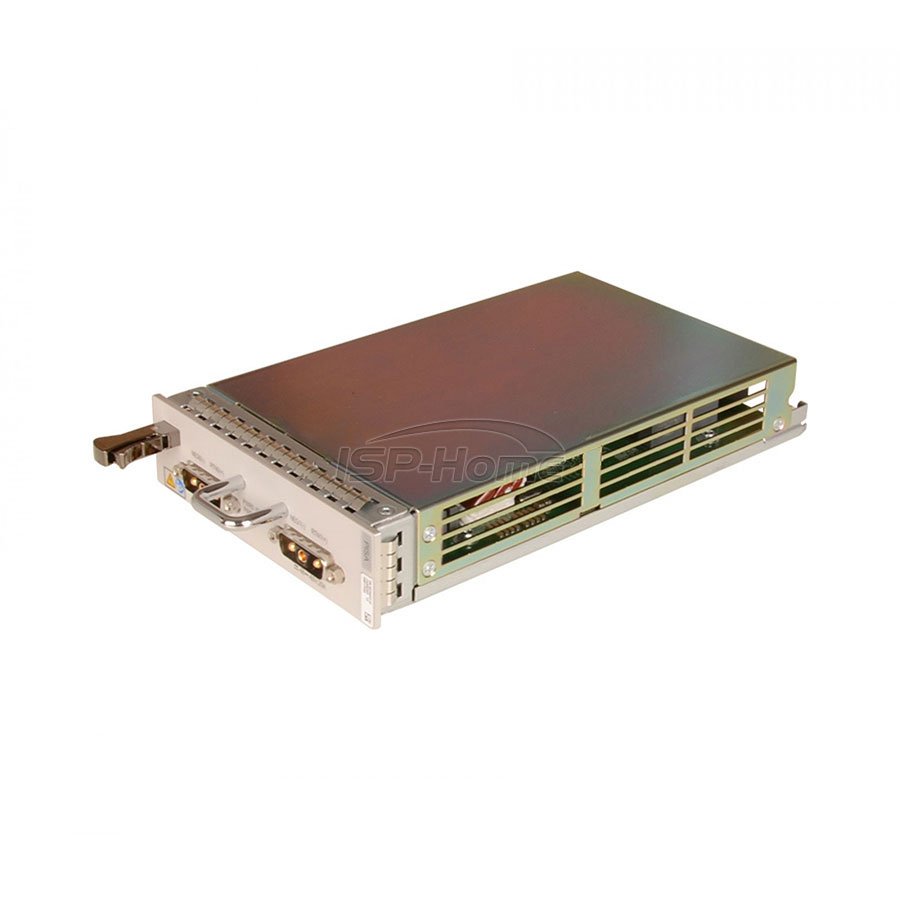

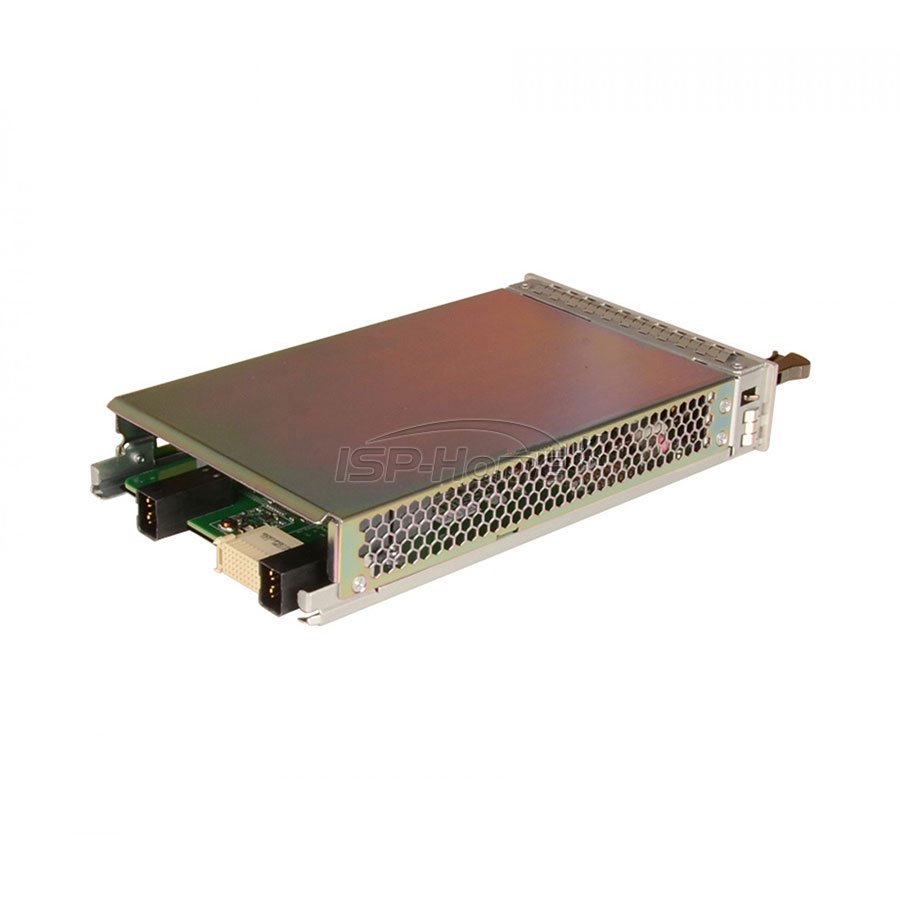

H901PISA is power transfer board of Huawei OLT MA5800 X2, It leads in 2 channels of -48 V or -60 V DC power, and transfers the power to the protection circuit.
Key Specifications
H901PISA DC connect power board
Apply to Huawei MA5800 X2 OLT

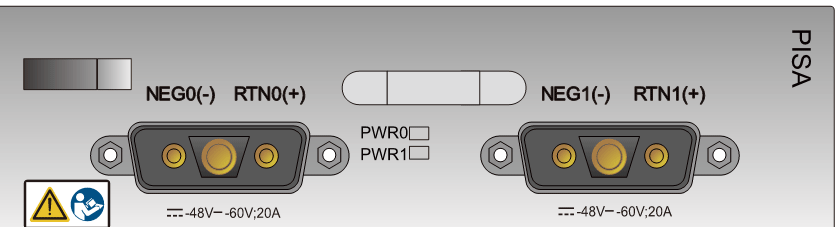

Two -48 V DC power input
Filtering and current-limiting for the power input port
Power input detection and protection fuse fault detection
Reporting of the protection alarm and board online signal
H901PISA Specification
| Item | H901PISA |
|---|---|
| Port | 3V3 power port |
| Function | Provides the -48 V power input |
| Power Consumption | Static: 2.5 W; Maximum: 2.5 W |
| Dimensions (mm) | 35.28 (W) x 253.00 (D) x 130.00 (H) |
| Weight (kg) | 0.72 |
