Description

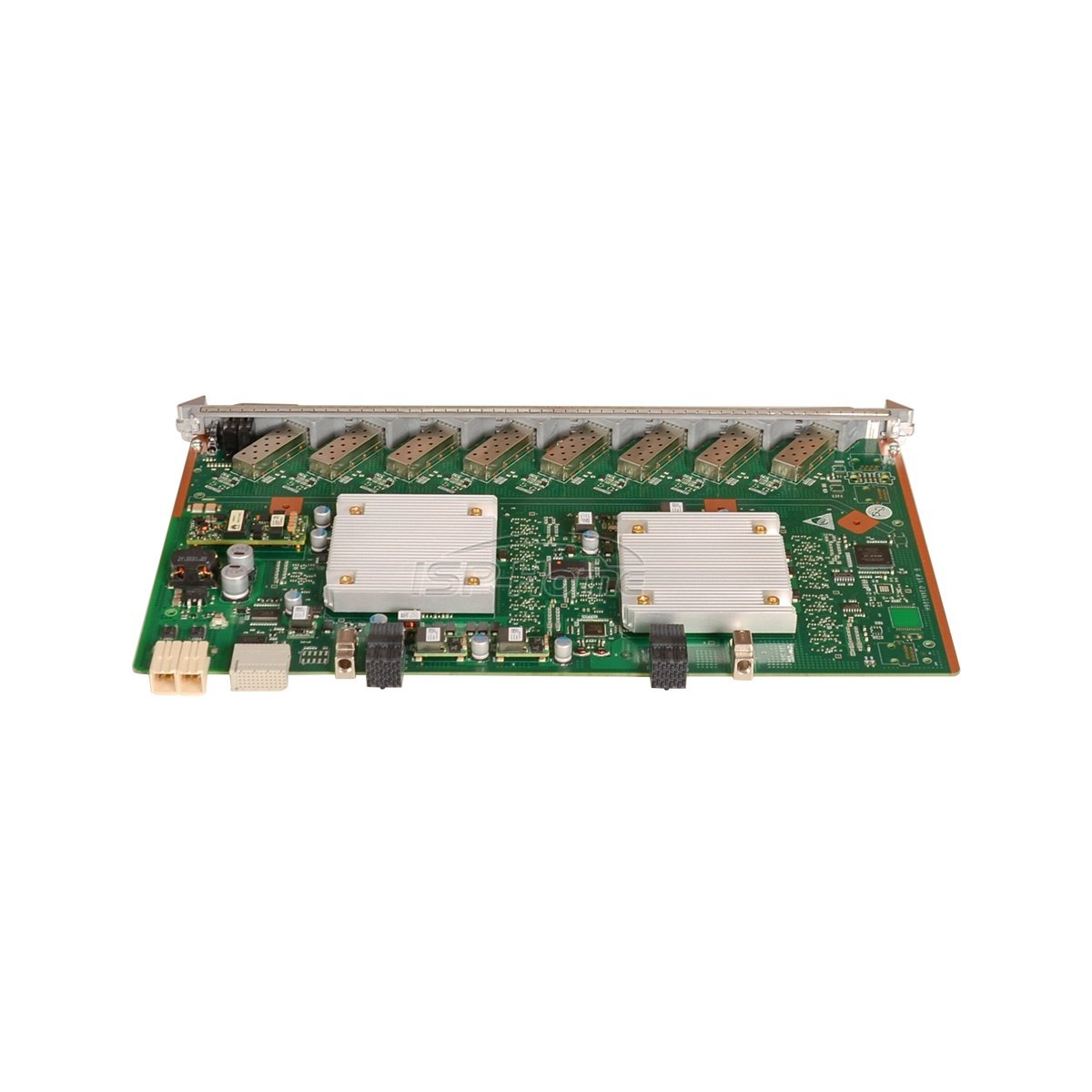

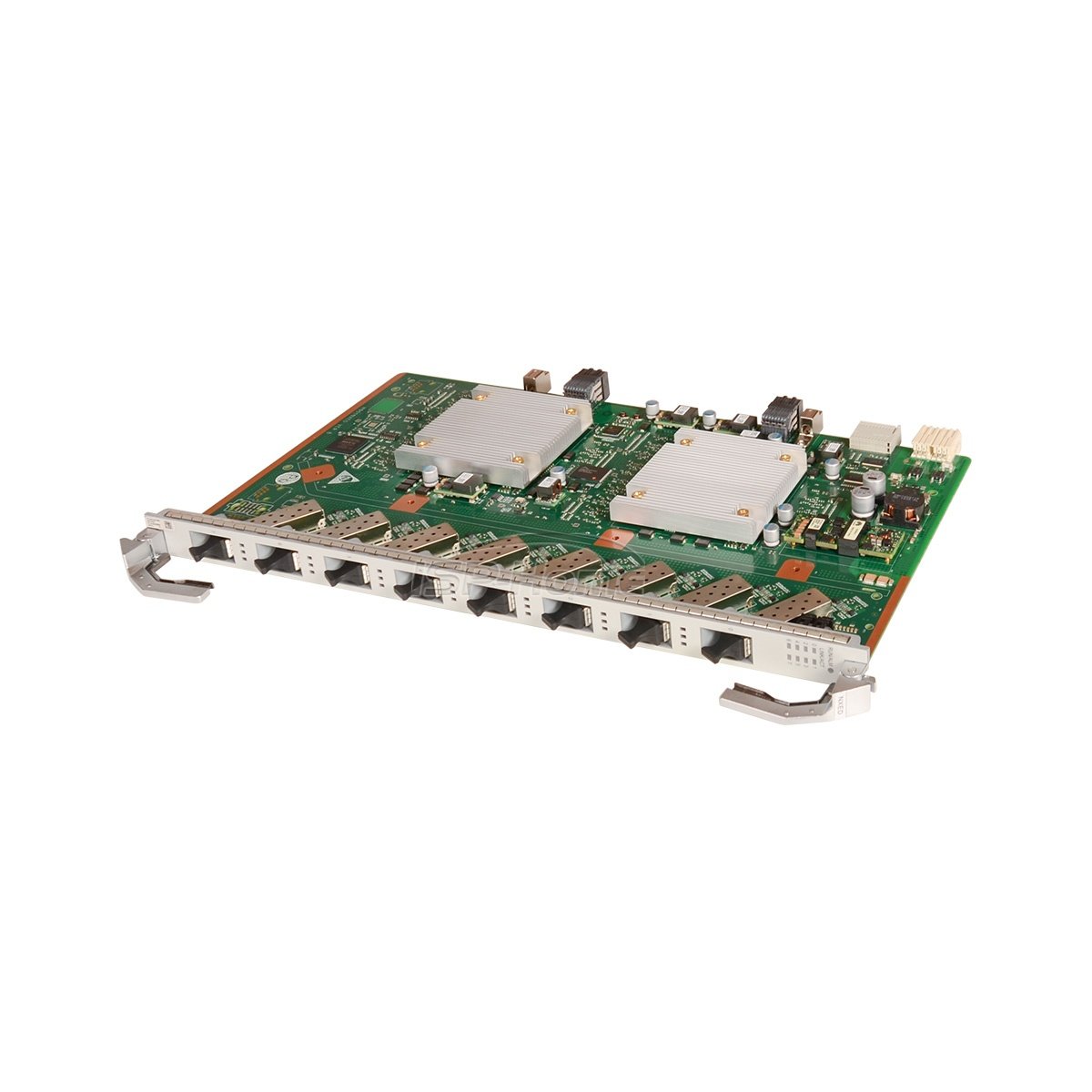

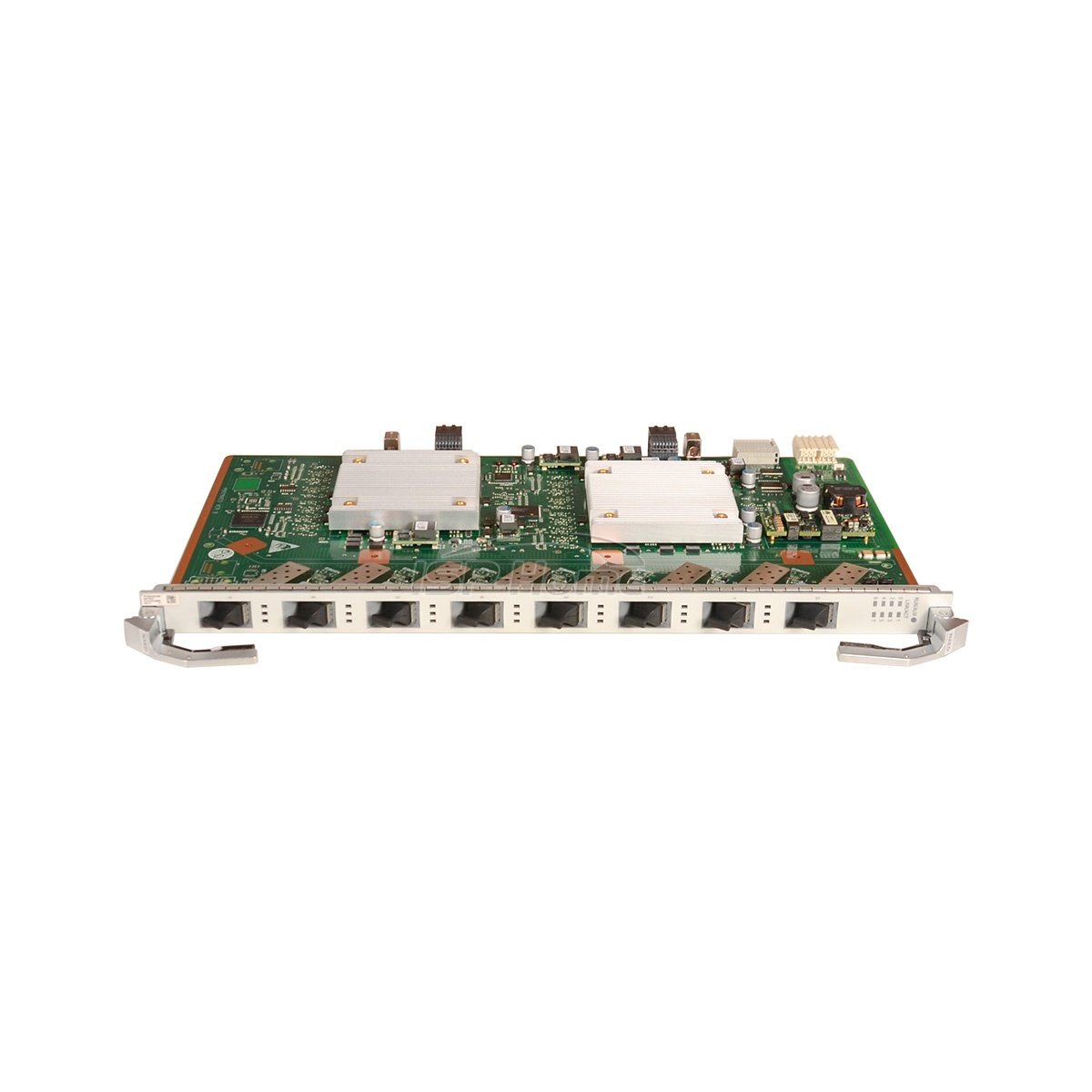

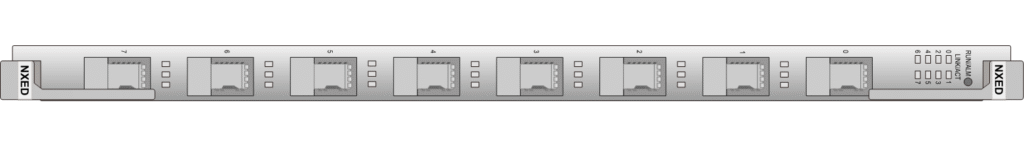

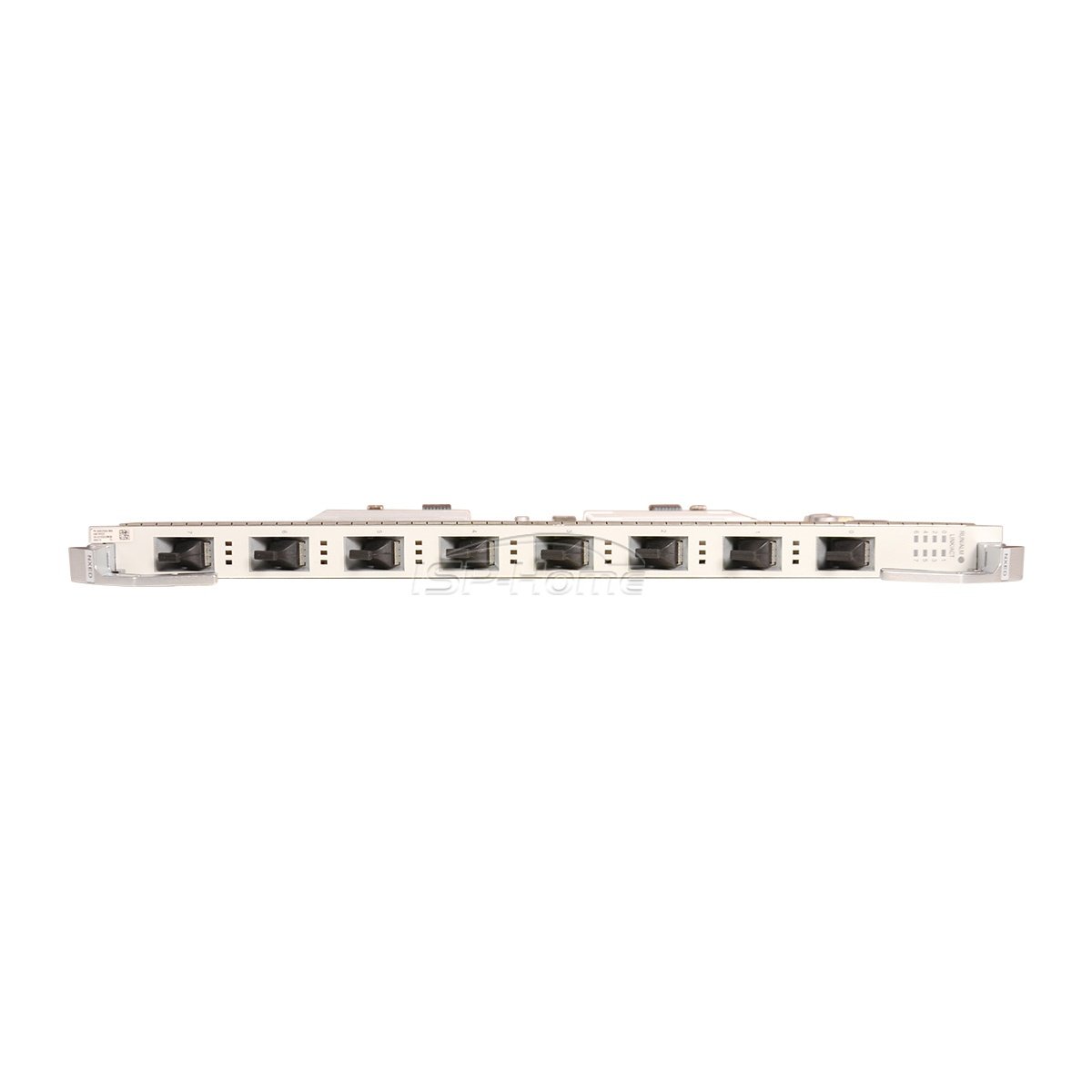

The H901NXED is an 8-port upstream interface board providing 10GE/GE optical ports designed for Huawei’s MA5800 series Next-Generation OLT. Its primary function is to provide high-capacity uplink connections for the optical access network
Key Specifications
Huawei 8-port 10GE/GE optical uplink board
Apply to Huawei MA5800 X7, MA5800 X15, MA5800 X17 OLT system
Supports SyncE
Maximum number of MAC addresses: 262143
Without 10GE SFP+ module equipped by default, if need equip SFP+ module, please contact:sales@isp-home.com
H901NXED Specification
| Item | Specification |
|---|---|
| Function | – |
| Port & Quantity | 8 x 10GE/GE optical |
| MAC address number | 262143 |
| Upstream transmission | Supported |
| Link aggregation | Supported |
| Pluggable optical | Supported |
| Temperature query and high temperature alarm | Supported |
| Automatic shutdown at high temperature | Supported |
| 1588v2 | Supported |
| 1588ACR | Supported |
| Sync ETH clock | Supported |
| Maximum frame size | 2052 bytes; 9216 bytes (jumbo frame enabled) |
| Protection group | Supported |
| Dimensions (mm) | 23.30 (W) x 257.90 (D) x 399.20 (H) |
| Weight (kg) | 0.99 |
| Environment | – |
| Power Consumption (W) | Static: 40; Maximum: 53 |
| Operating temperature | -40°C to +65°C |
FAQ
Q: Does the Uplink SFP+ Module included in H901NXED?
A: There are three configuration for H901NXED in isp-home.com, different configuration with different price:
1. NXED without SFP+ Module
2. NXED with 8pcs SFP+ Module (Multimode, 300M)
3. NXED with 8pcs SFP+ Module (Singlemode, 10KM)
Q: Can I get 40km or 80km 10GE optical SFP+ modules?
A: Yes, but it not popular deployed in a NG-OLT system, you may contact our sales to get more details.
Q: What is the difference between 10GE optical modules (SFP+)?
A:
| Parameter | No. 1 | No. 2 |
|---|---|---|
| Type | One-channel two-fiber bi-directional optical module | One-channel two-fiber bi-directional optical module |
| Operating Wavelength | 850 nm | 1310 nm |
| Encapsulation Type | SFP+ | SFP+ |
| Port Rate | 10 Gbit/s | 10 Gbit/s |
| Minimum Output Optical Power | -7.30 dBm | -8.20 dBm |
| Maximum Output Optical Power | -1.00 dBm | 0.50 dBm |
| Maximum Receiver Sensitivity | -11.10 dBm | -12.60 dBm |
| Optical Connector Type | LC | LC |
| Optical Fiber Type | Multi-mode | Single-mode |
| Reach | 0.30 km | 10.00 km |
| Overload Optical Power | -1.0 dBm | 0.5 dBm |
| Extinction Ratio | 3.0 dB | 3.5 dB |
