Description

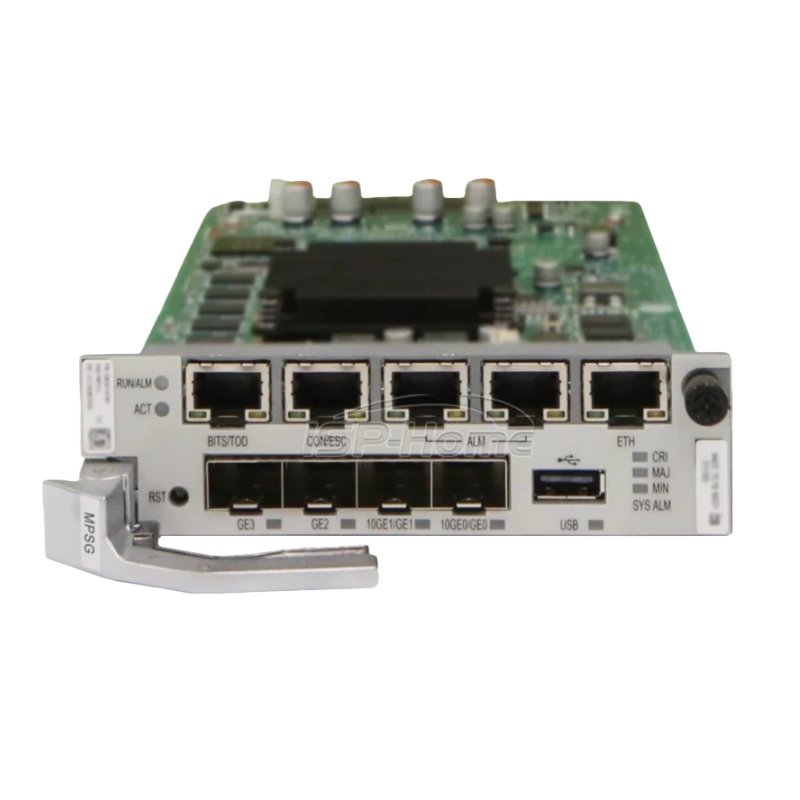

The HUAWEI H901MPSG is a main control board for the SmartAX MA5800-X2 OLT, functioning as the core for system control and service switching. It manages the device, supports features like active/standby switchover and load sharing to double processing performance, and includes two 10GE/GE ports and two GE Ports. It also provides various interfaces for management, synchronization, and alarm functions.
Key Specifications
Supports active/standby switchover at the control plane
Supports Max 40Gbit/s bandwidth
Supports 2*10GE/GE+2*GE uplink port
H901MPSG Specification
| Parameter | Value |
|---|---|
| Bandwidth per slot | 40Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 4096 |
| Multicast user | 4096 |
| Static programs | 8192 |
| Online programs | IPv4: 2000; IPv6: 2000 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 32768 |
| ND table | 16384 |
| ARP table | 32768 |
| ALM port (Alarm digital parameters) | Y (7 Boolean value inputs and 1 Boolean value output) |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption | Static: 26W Maximum: 41W |
| Mechanical Specification | |
| Dimensions(mm) | 35.28(W) x 258.15(D) x 130.36(H) |
| Weight(kg) | 0.7 |
