Description

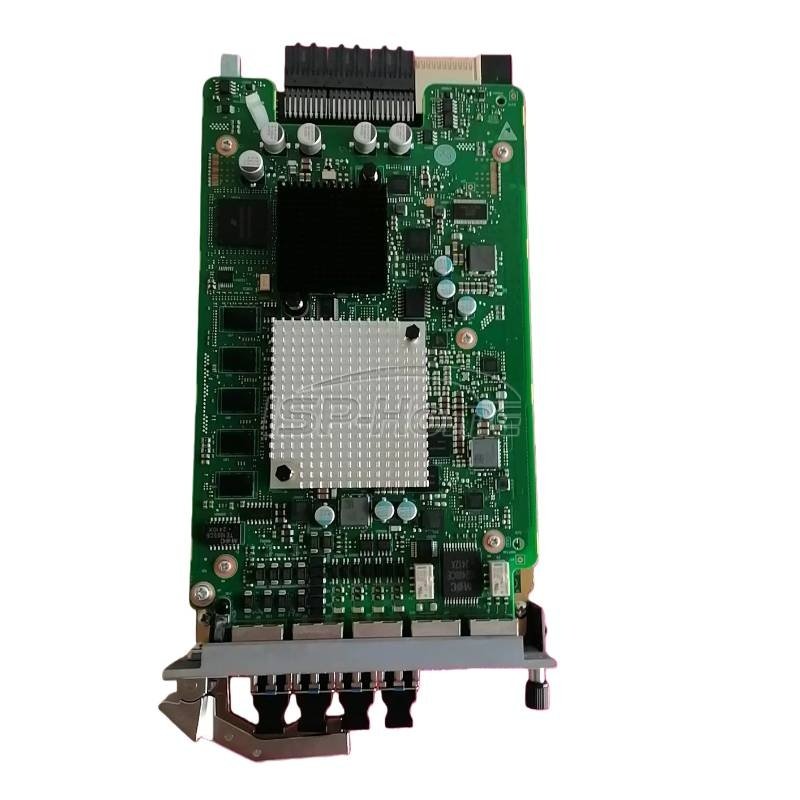

The MPSD board is a 10G super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X2 subracks.it is the core of system control and service switching and aggregation. MAX access 4096 subscribers, and supports 98816 ARP table.
Key Specifications
4-port 10GE/GE optical uplink port
Supports active/standby switchover at the control plane
Supports load sharing mode at the forwarding plane, doubling processing performance
Supports ISSU, saving the upgrade interruption time
Supports synchronization Ethernet
Supports 1588v2

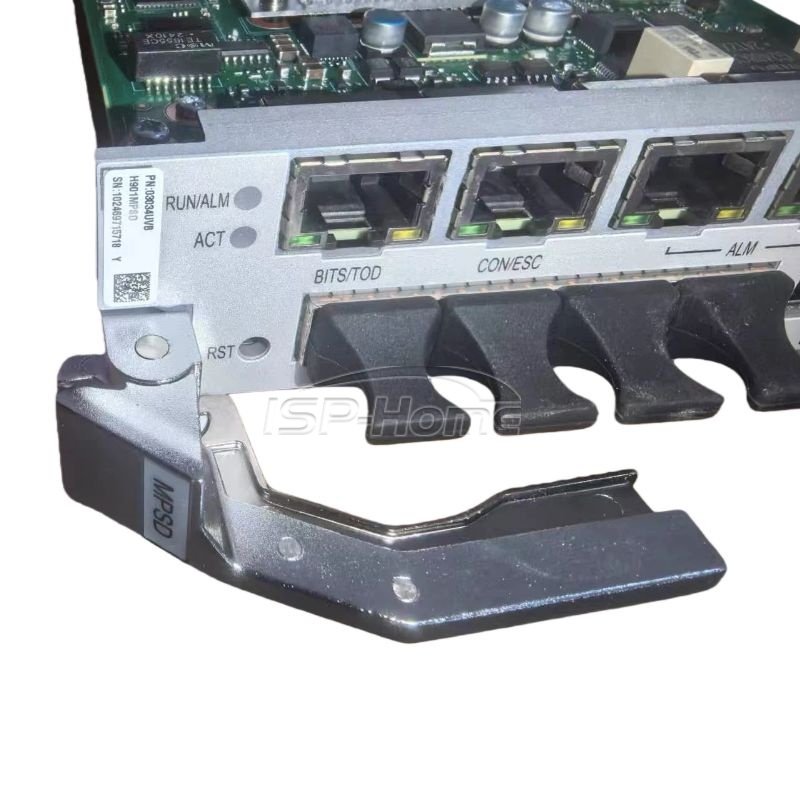

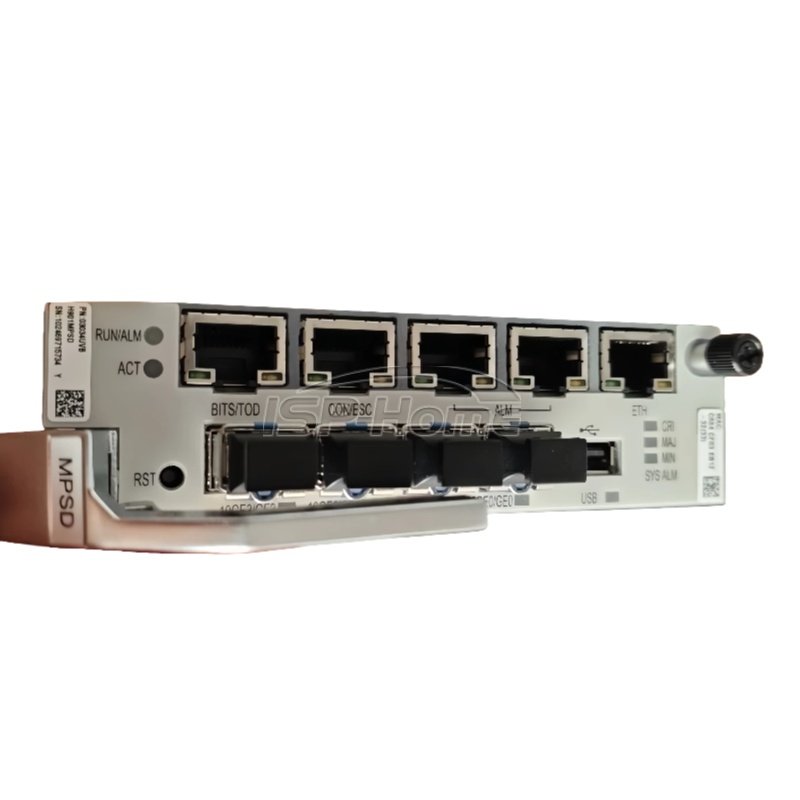

Supports interfaces CON (RJ-45)/ESC (RJ-45), ETH (RJ-45)
Supports Communication Interfaces L/A 0 to L/A 3 (4 x SFP+/SFP 10GE/GE ports)
H901MPSD Specification
| Parameter | Value |
|---|---|
| Bandwidth per slot | 80 Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 4096 |
| Multicast user | 4000 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 32768 |
| ARP table | 131072 (V100R018C00 and later version) |
| Maximum Frame Size | 2052 bytes; 9216 bytes (jumbo frame enabled) |
| Operating temperature | -40°C to +65°C |
| Power consumption (Static) | 53 W |
| Power consumption (Maximum) | 67 W |
| Dimensions (mm) | 35.28 (W) x 258.15 (D) x 130.36 (H) |
| Weight (kg) | 0.99 |
