Description

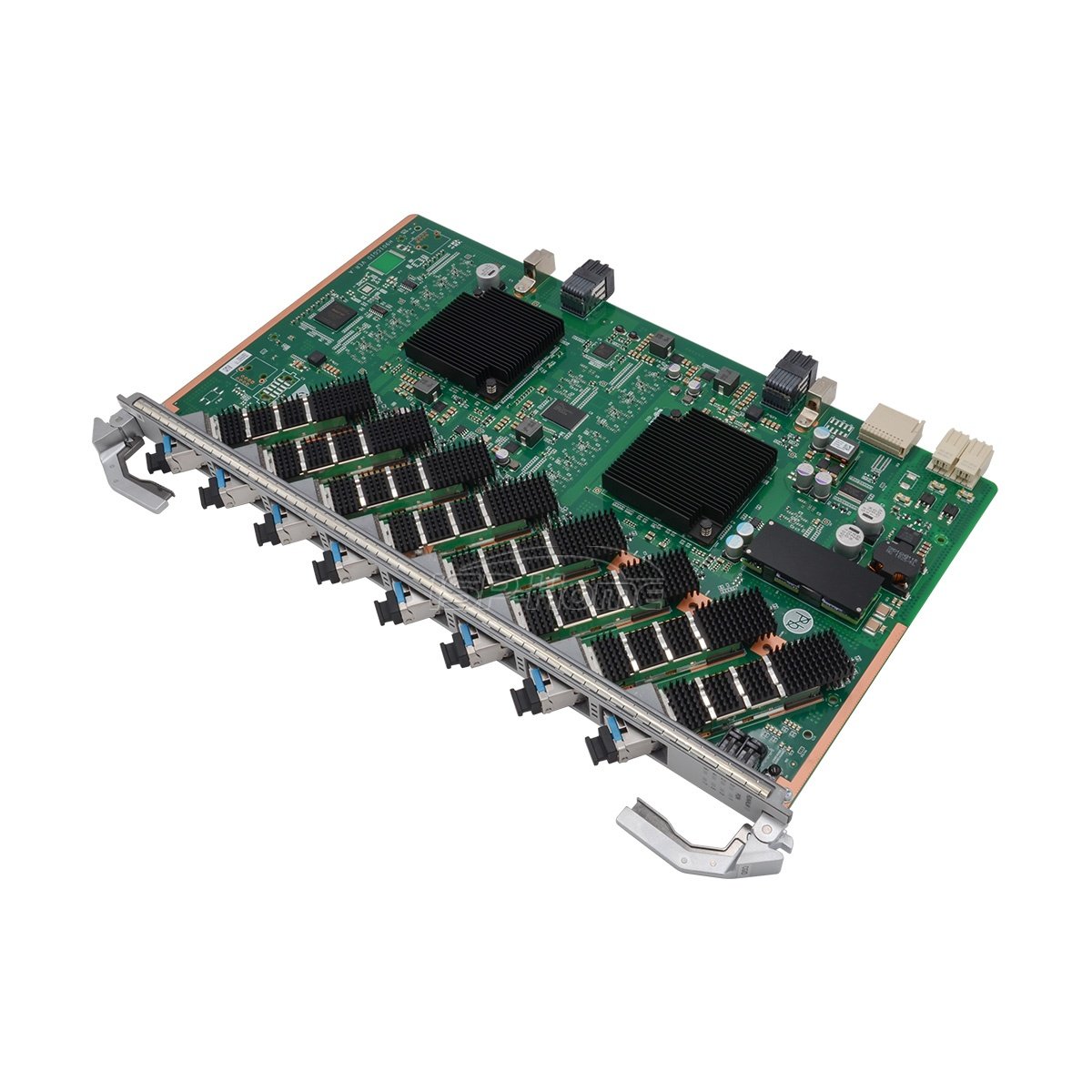

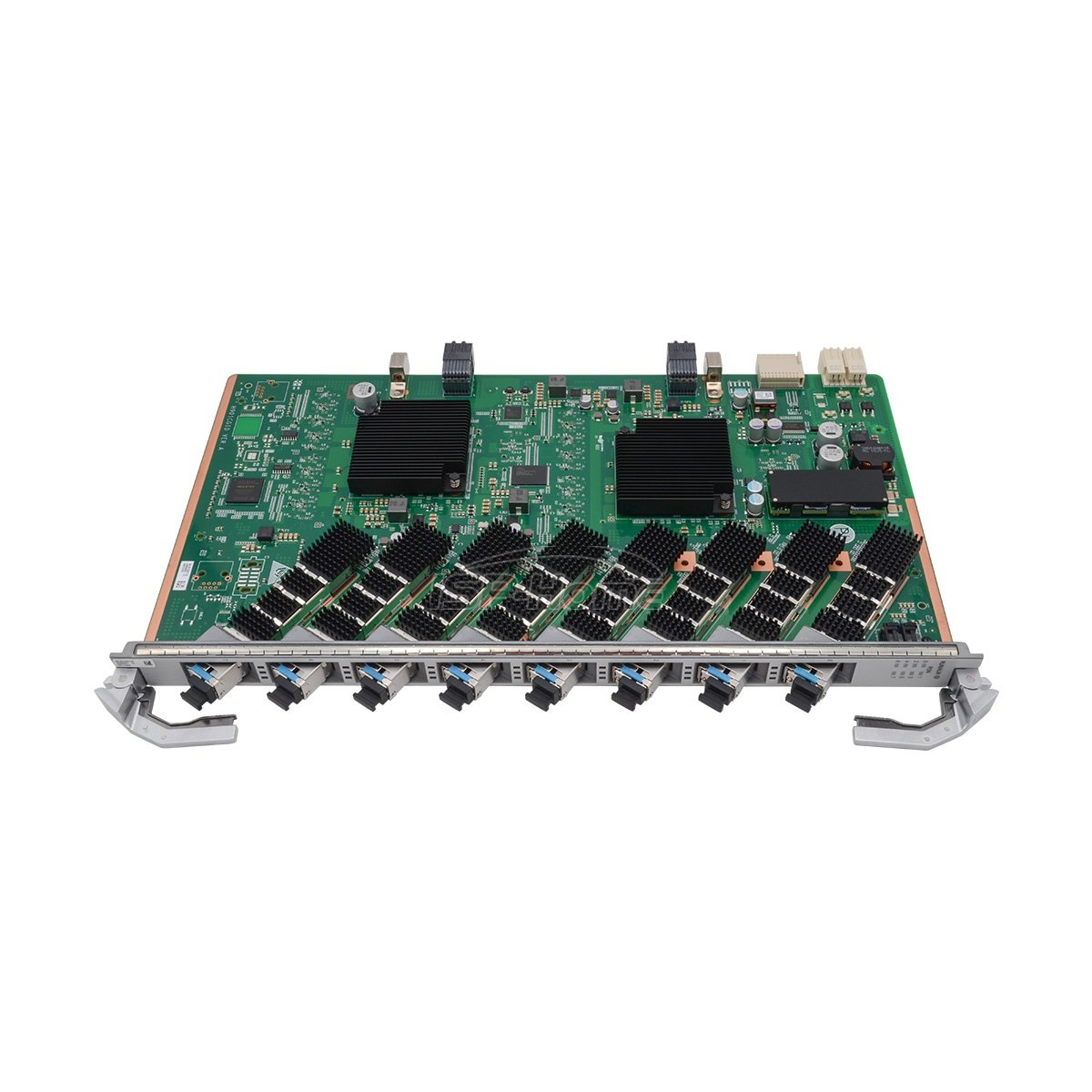

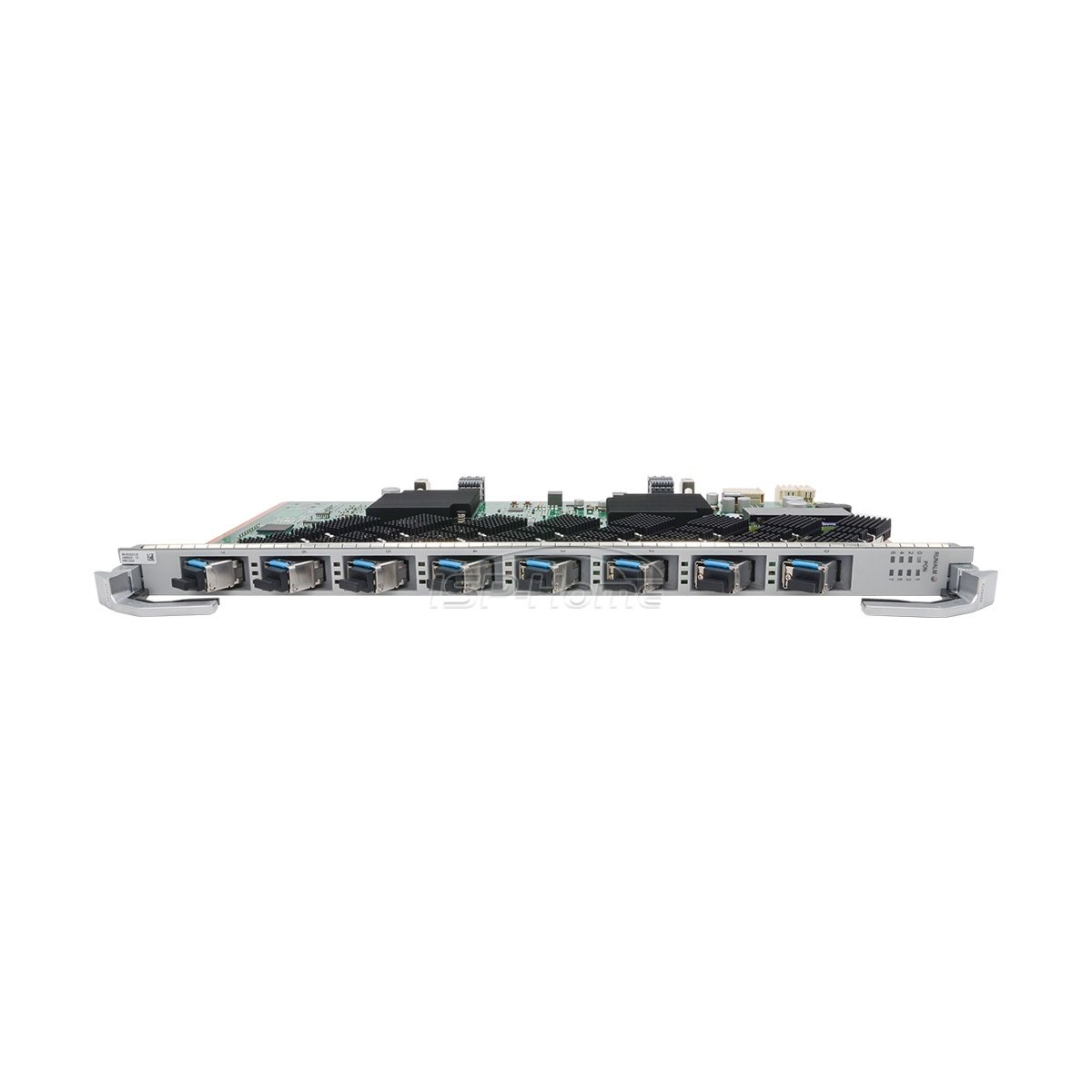

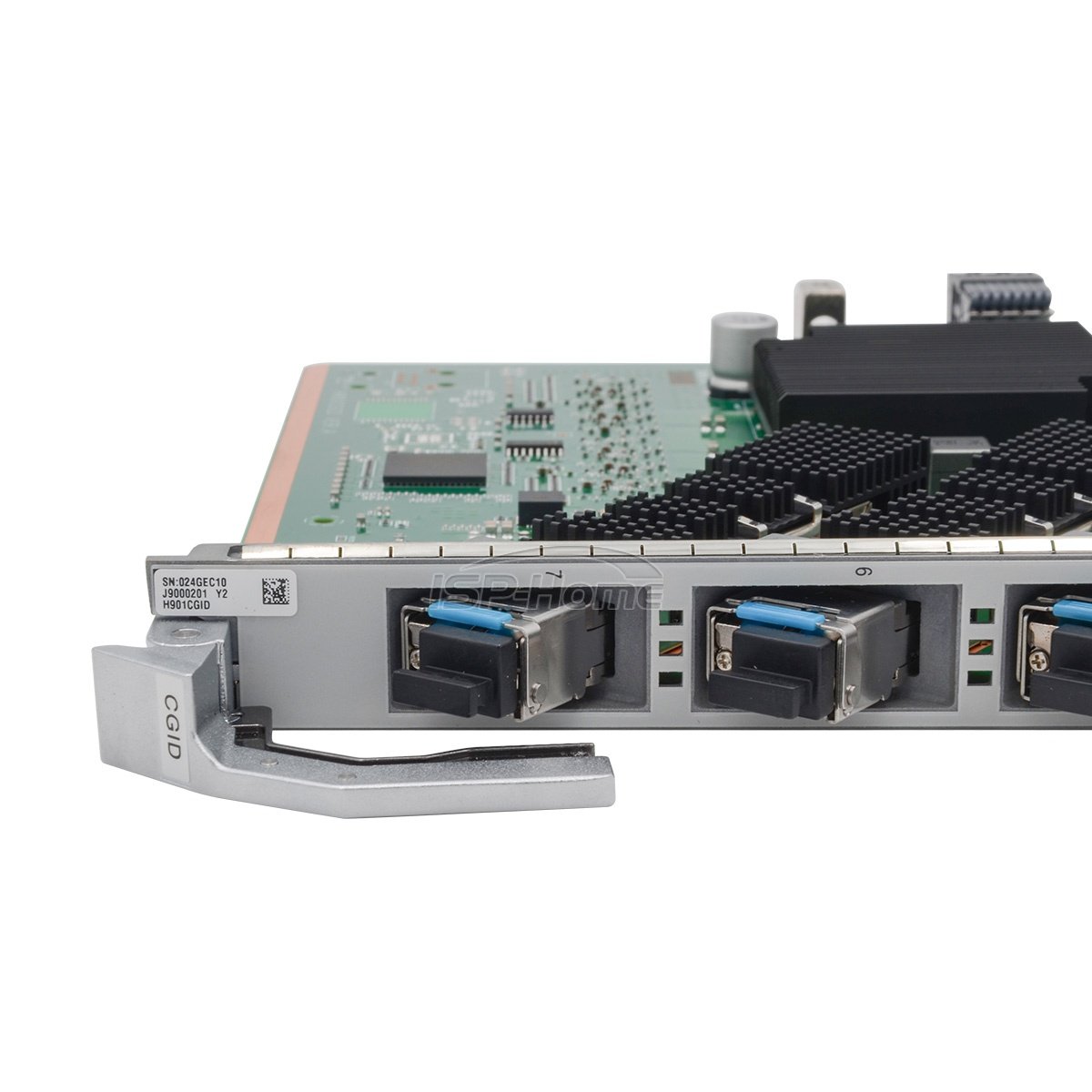

Huawei H901CGID is an 8-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
Key Specifications
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Forwarding Capability: 80 Gbit/s
Max split radio: 1:256
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XG-PON channel: Tx: 9.95Gbit/s, Rx: 2.49Gbit/s
Interface Type: SC
T-CONTs per PON port:
GPON: 1024
XG-PON: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16352
H901CGID Specification
| Category | Parameter | Specification |
|---|---|---|
| Basic Information | Product Brand | Huawei |
| Model | SmartAX MA5800 H901CGID | |
| Interface Type | 8-port XG-PON and GPON Combo OLT | |
| Compatibility | SmartAX MA5800 Series | |
| Application Scenario | FTTH, FTTO, FTTB | |
| Port Configuration | Port Quantity | 8 XG-PON & GPON ports |
| Uplink Interface | SFP+ | |
| Hot Swappable | Yes | |
| Optical Specifications | Module Type | One-fiber bidirectional optical module, N2a |
| Encapsulation Type | XFP | |
| GPON Wavelength (Tx/Rx) | 1490 nm / 1310 nm | |
| XG-PON Wavelength (Tx/Rx) | 1577 nm / 1270 nm | |
| GPON Port Rate (Tx/Rx) | 2.488 Gbit/s / 1.244 Gbit/s | |
| XG-PON Port Rate (Tx/Rx) | 9.953 Gbit/s / 2.488 Gbit/s | |
| Minimum Output Optical Power (GPON/XG-PON) | 3 dBm / 4 dBm | |
| Maximum Output Optical Power (GPON/XG-PON) | 7 dBm / 8 dBm | |
| Maximum Receiver Sensitivity (GPON/XG-PON) | -32 dBm / -29.5 dBm | |
| Overload Optical Power (GPON/XG-PON) | -12 dBm / -9 dBm | |
| Extinction Ratio | 8.2 dB | |
| Optical Connector Type | SC | |
| Performance Parameters | Forwarding Capability | 80 Gbit/s |
| Rate Mode | Asymmetric rate | |
| T-CONTs per PON Port (GPON/XG-PON) | 1024 / 2048 | |
| Service Flows per PON Board | 16368 | |
| Maximum Frame Size | 2052 bytes (9216 bytes with jumbo frame enabled) | |
| Maximum Number of MAC Addresses | 131072 | |
| Maximum Distance Difference Between ONUs | 40 km | |
| Transmission Distance | Up to 20 km | |
| Physical Specifications | Dimensions (W × D × H) | 23.30 mm × 257.90 mm × 399.20 mm |
| Power Consumption (Static/Maximum) | 48 W / 78 W | |
| Operating Temperature | -40°C to +65°C | |
| Operational Humidity | 5% to 95% (non-condensing) | |
| Management & Features | ONT Compatibility | Fully compatible with Huawei ONT |
| Network Management | SNMP, Telnet, OMCI | |
| Additional Features | Support for multicast, QoS, and security features |
