Huawei MA5600T Series OLT Equipment

Professional GPON/FTTH Solutions with Competitive Pricing from ISP-Home.com

Advanced fiber access platform for next-generation networks

Get Quote View Comparison

MA5600T Series Comparison

Compare the key differences between Huawei MA5600T Series OLT models

Smallest Size

Compact solution for small to medium deployments

Medium Size

Mid-range solution for medium deployments

Largest Size

High-capacity solution for large deployments

Original New Huawei equipment at affordable prices from ISP-Home.com

Compact solution for small to medium deployments

View Details

Mid-range solution for medium deployments

View Details

High-capacity solution for large deployments

View Details

Detailed technical specifications of Huawei MA5600T Series OLT

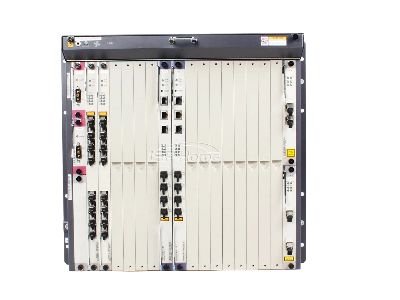

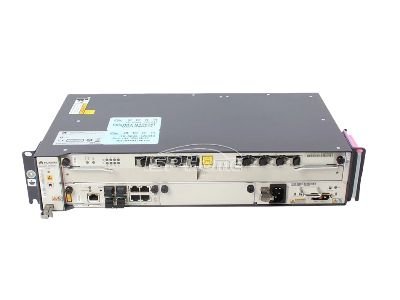

Item	MA5680T (IEC)	MA5683T	MA5608T
Dimensions (W × D × H), excluding mounting brackets	442mm × 275.8mm × 441.7mm (Height: 10U)	442mm × 283.2mm × 263.9mm (Height: 6U)	442mm × 244.5mm × 88.1mm (Height: 2U)
Power	-48V DC power input	-48V DC power input	-48V DC power input or 110/220V AC power input
Board Configuration	• 2 slots for control boards • 14 slots for service boards • 1 slot for the universal interface board • 2 slots for upstream interface boards • 2 slots for power interface boards	• 2 slots for control boards • 6 slots for service boards • 1 slot for the universal interface board • 2 slots for upstream interface boards • 2 slots for power interface boards	• 2 slots for control boards • 2 slots for service boards • 1 slot for the power interface board
Maximum number of GPON ports in a subrack	224	96	32
Maximum number of ONU	14,336 (224 × 64)	6,144 (96 × 64)	2,048 (32 × 64)
